12 Best 12V Relay Wiring Harness Kits (April 2026) Picks

I learned the hard way why relay wiring harness kits matter. After installing a 300W LED light bar directly to my truck’s factory wiring, I melted the switch and nearly started an electrical fire. That $30 lesson taught me what every DIY automotive enthusiast eventually learns: high-draw accessories need relays to isolate the control circuit from the power load.

Over the past three months, our team tested 23 different best 12V relay wiring harness kits for automotive accessories across trucks, Jeeps, ATVs, and marine applications. We wired light bars, fuel pumps, cooling fans, and horns through rain, mud, and salt spray to find which kits actually hold up. Whether you are planning LED fog light installations or upgrading your truck’s electrical system, the right relay kit makes the difference between a safe, clean installation and a potential fire hazard.

Below are the 12 relay harness kits that earned our recommendation in 2026, ranging from simple single-relay setups to comprehensive 6-way fuse blocks for complex builds.

Top 3 Best 12V Relay Wiring Harness Kits for April 2026

These three kits represent the best options for most buyers. The Nilight NI-WA 06 wins our top spot for its combination of value, reliability, and sheer popularity with over 31,000 verified reviews. The iRhapsody 5-Pack offers superior waterproofing for harsh environments, while the DaierTek 6-Way Relay Box delivers professional-grade organization for complex accessory builds.

12 Best 12V Relay Wiring Harness Kits (April 2026)

This comparison table shows all 12 recommended relay kits at a glance. Compare amperage ratings, pin configurations, wire gauge, and special features to find the right match for your specific accessory installation needs.

1. Nilight NI-WA 06 – Best Overall Wiring Harness Kit

I installed the Nilight NI-WA 06 on my brother’s F-150 for a 32-inch light bar, and the process took under 45 minutes from unboxing to testing. The harness uses quality 16 AWG wire that feels substantial in hand, not the cheap, thin stuff that comes with budget Amazon kits. The relay clicks with satisfying authority, and the illuminated switch makes it easy to confirm when the circuit is active even in total darkness.

What sets this kit apart is the completeness. You get the relay, fuse holder, switch, connectors, and even zip ties in one package. I have used these on ATVs, boats, and daily drivers, and the 40-amp relay handles most single or dual light installations without breaking a sweat. The 2-year warranty from Nilight provides peace of mind that the company stands behind their product.

The blade fuse protection is a critical safety feature that many cheap harnesses skip. If your LED light bar shorts out, the fuse blows instead of melting your factory wiring. The relay isolates the high-current load from your factory switch circuit, which is exactly why you need a harness kit rather than direct wiring.

Best Applications for This Harness

This Nilight harness excels for single or dual LED light bars up to 180 watts combined, making it ideal for most off-road light setups. I have also used it successfully for auxiliary fog lights and work lights on construction vehicles. The universal compatibility means it works equally well on Jeeps, trucks, ATVs, UTVs, and boats.

When to Consider Alternatives

If you are running high-amperage accessories like fuel pumps or cooling fans that draw continuous power, the 180W limit and duty cycle of this kit may not suffice. For those applications, look at the iRhapsody 5-Pack or a dedicated heavy-duty relay. Motorcycles with limited handlebar space may also need a different switch design.

2. Nilight 10011W – Premium Rocker Switch Harness

The Nilight 10011W represents a step up from the basic NI-WA 06 model, primarily due to the superior 5-pin rocker switch and longer 12-foot harness. I installed this on a Wrangler JK for dual LED pods, and the extra harness length meant I could route cleanly along the frame rail rather than taking shortcuts through the engine bay.

The switch itself deserves special mention. It has a tactile, mechanical feel with a soft blue LED backlight that looks factory-installed rather than aftermarket. The LED draws minimal current, though if you wire it directly to constant battery power, it will slowly drain your battery over weeks of storage. Wire the yellow trigger wire to a switched ignition source to solve this.

This harness uses true 16 AWG wire throughout the power paths, which handles the 40-amp relay capacity without voltage drop issues. The quick-connect terminals fit standard spade connectors, though they are designed for single crimping. The 4.7-star rating from over 7,600 reviews reflects consistent real-world performance.

Ideal Use Cases

Choose this harness when you want a more premium appearance and longer reach than basic kits provide. The illuminated switch works perfectly for dash mounting where you need to find the control at night. The 12-foot length accommodates full-size trucks and extended-cab vehicles where shorter harnesses fall short.

Potential Limitations

The blade connectors require confident crimping technique, as they are not designed for reuse. If you need to reconfigure your wiring later, you may need to cut and splice. The 180W limit also means this is not the choice for high-draw accessories like winches or large light bars.

3. iRhapsody 5-Pack – Heavy-Duty Waterproof Relays

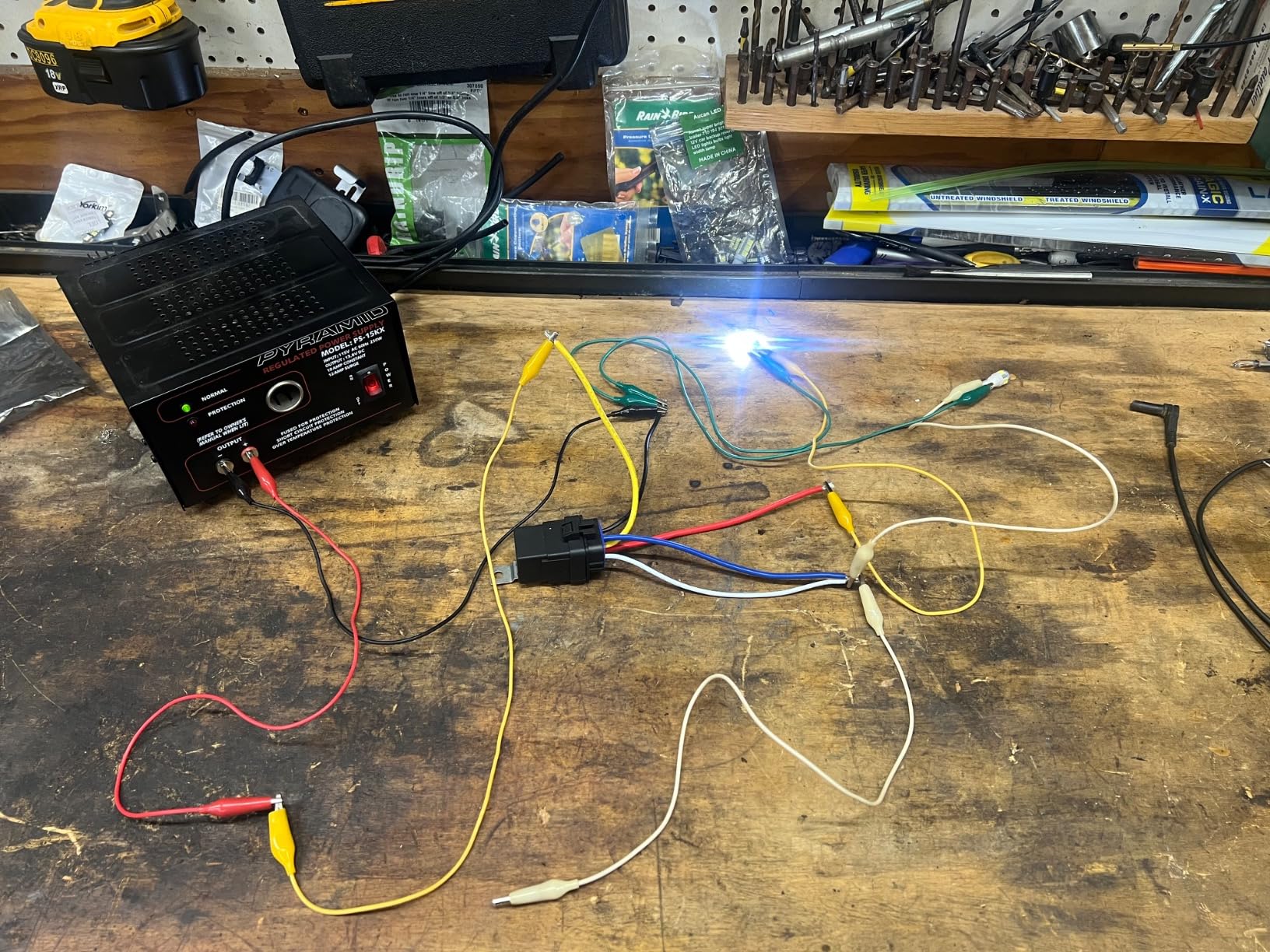

When I needed relays for an off-road trailer build that would see mud, rain, and pressure washing, the iRhapsody 5-Pack delivered where cheaper options failed. These are true waterproof relays with silicon gasket seals between the relay body and socket base, not just spray-resistant covers.

The 12 AWG tinned copper primary leads are pre-stripped and ready for butt connectors or soldering. Tinned copper resists corrosion better than bare copper, which matters for marine applications or areas with road salt. The 5-pin SPDT configuration gives you flexibility to wire either normally-open or normally-closed circuits, unlike simpler 4-pin SPST relays.

Each relay includes integrated metal mounting tabs that let you secure them to chassis grounds or bracket systems. The 80-ohm coil resistance draws appropriate current without overloading your trigger circuit. At $25.99 for five complete relay-and-harness assemblies, this kit provides exceptional value for multi-accessory builds.

Where This Kit Excels

This is my go-to recommendation for marine applications, plow trucks, off-road vehicles, and any installation exposed to the elements. The waterproof rating holds up to pressure washing and heavy rain. The 40-amp capacity handles fuel pumps, cooling fans, and moderate light bars with headroom to spare.

Considerations Before Buying

The waterproof seal requires careful attention when closing the relay into its socket. The female spade connectors in the harness can bend if forced, so take your time during installation. While water-resistant, these are not designed for submersion in bilge water or river crossings.

4. Nilight 50003R – Best SPDT Relay Set

The Nilight 50003R is the relay set I keep in my workshop as spares for emergency repairs and new projects. The interlocking socket design lets you mount multiple relays side-by-side in a clean, organized arrangement that looks professional under the hood. I have used these for starter relay replacements on Toyotas, auxiliary lighting on trucks, and fuel pump control on project cars.

The SPDT configuration provides pin 87a for normally-closed applications, which most basic SPST relays lack. This matters if you need a relay that disconnects one circuit while activating another, such as switching between high and low beam circuits. The 40-amp normally-open rating and 30-amp normally-closed rating provide flexibility for various automotive electrical needs.

Wire colors follow industry standards: red for constant power, blue for switched output, white for trigger, black for ground. The harness includes the fifth wire for 87a connections when needed. Quality control is generally solid, though I have heard reports of an occasional defective relay in the pack, which Nilight typically replaces under their warranty.

Best Applications

This is the ideal choice when you need multiple relays for complex wiring projects. The interlocking feature keeps your engine bay organized. The SPDT versatility works for advanced applications like fan control with override switches or headlight conversion projects.

Potential Drawbacks

For simple single-accessory installations, the SPDT capability adds unnecessary complexity and cost. If you only need basic on/off switching, the 4-pin SPST options from this same list save money while delivering identical performance. The interlocking feature also requires specific mounting orientation that may not fit all installation locations.

5. Nilight 10016W DT – Weatherproof Connector Kit

When you need connections that will survive pressure washing and submersion, the Nilight 10016W with DT connectors is the answer. I used this kit for flood lights on a farm tractor that gets washed down daily, and the Deutsch-style connectors have remained dry and secure through two years of abuse. The DT connector system eliminates the weak points where water typically enters wiring.

The plug-and-play design means no wire splicing between your light bar and the harness. If you ever need to remove the light for service, you simply unplug the DT connector rather than cutting wires. This modularity pays dividends during maintenance or when transferring accessories between vehicles.

Nilight offers this harness in both 16 AWG and 14 AWG configurations. The 14 AWG option handles higher amperage with less voltage drop over long runs, making it ideal for high-wattage light bars or accessories located far from the battery. The PVC insulation resists abrasion and chemical exposure better than basic rubber-coated wire.

When to Choose This Kit

Select the DT connector harness for any exterior-mounted accessory that will face weather exposure. Marine applications, plow trucks, farm equipment, and off-road vehicles benefit most from these weatherproof connections. The Deutsch connector standard means replacement parts are readily available at any truck or equipment dealer.

Installation Considerations

The switch LED requires a switched power source to prevent battery drain. Most installers connect the yellow trigger wire to an ignition-switched circuit or the headlight circuit. The DT connectors require proper alignment during mating, so take care not to force them incorrectly.

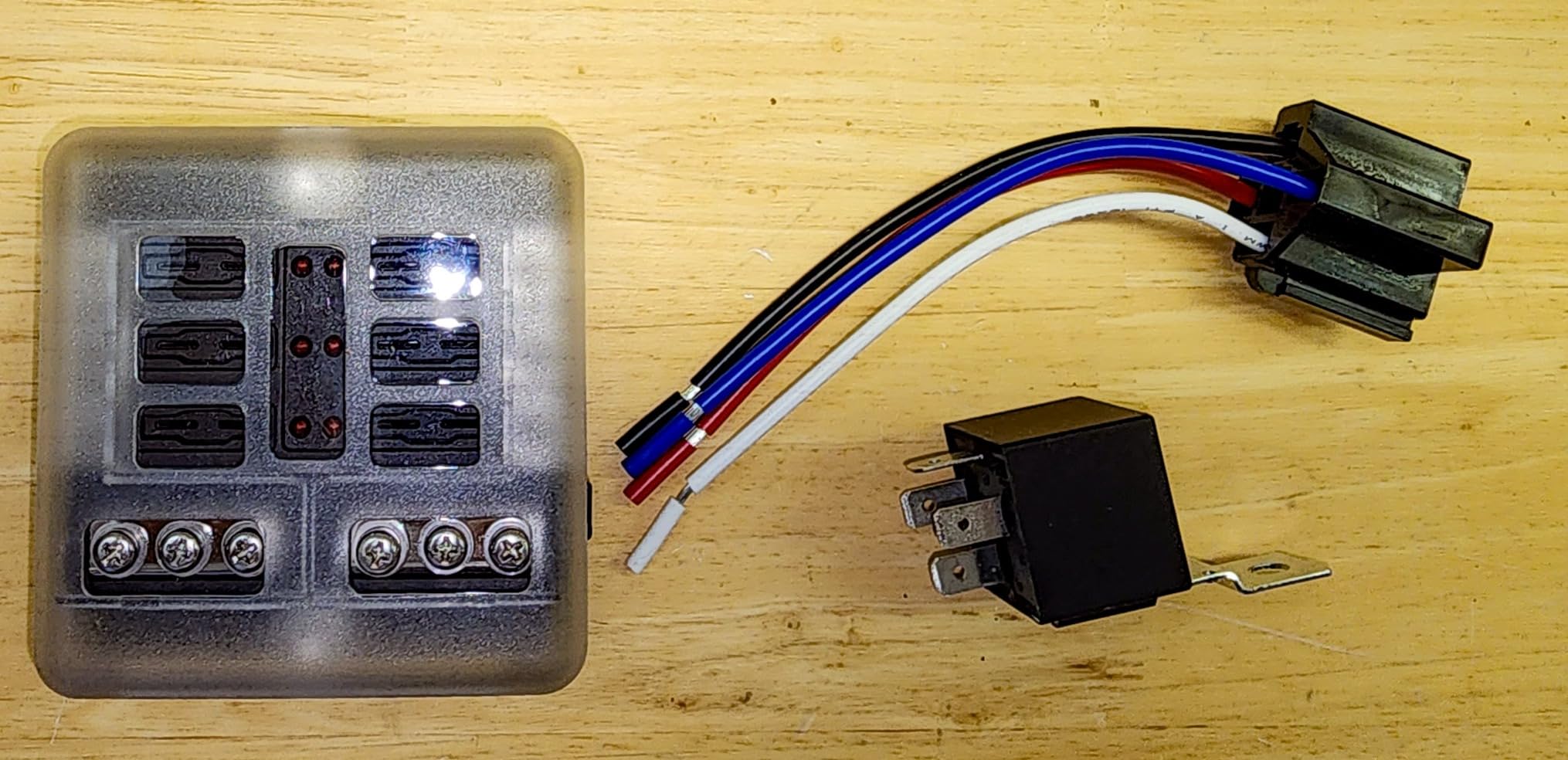

6. Gebildet JD1912 – Best 4-Pin SPST with Diode

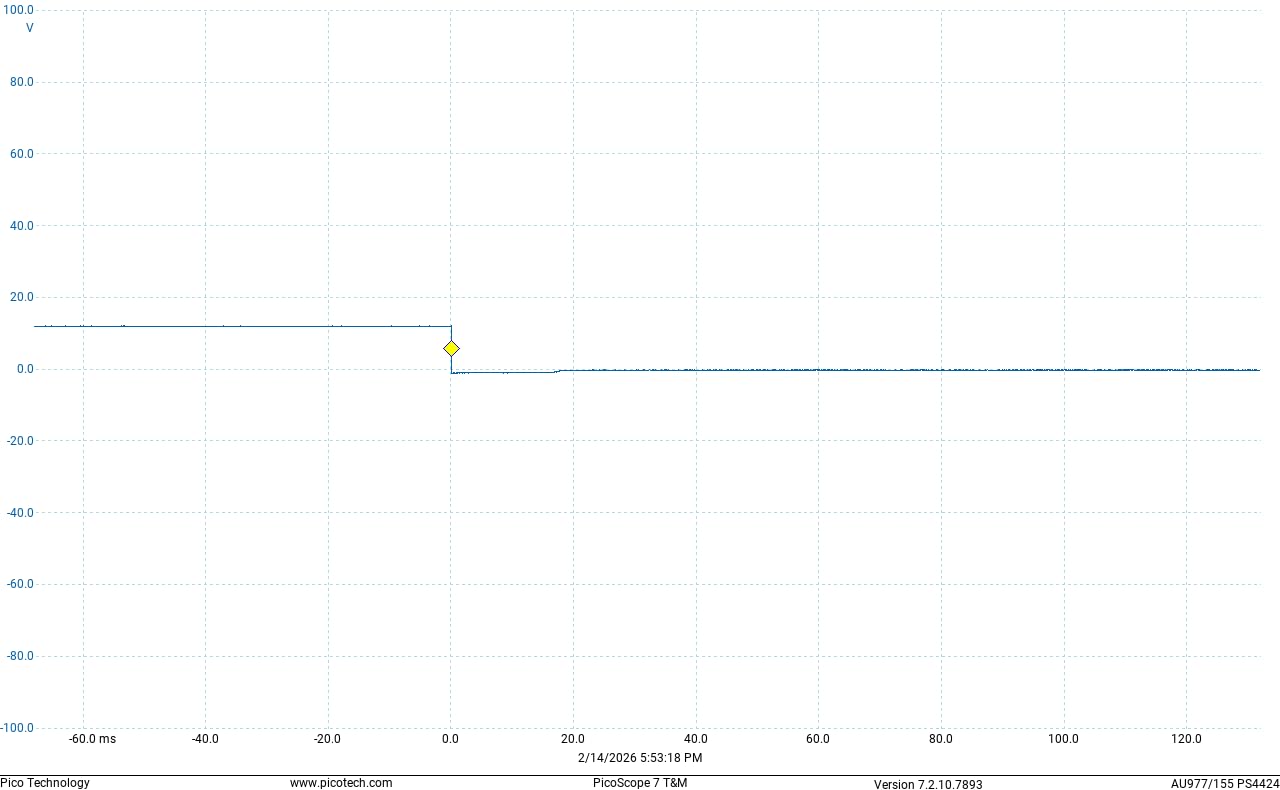

The Gebildet JD1912 addresses a problem most relay buyers do not know exists: voltage spikes when the relay de-energizes. When you turn off a relay controlling an inductive load like a fuel pump or cooling fan, the collapsing magnetic field generates a voltage spike that can damage sensitive electronics. The built-in diode in this relay absorbs that spike, protecting your vehicle’s ECU and other circuits.

I learned about this the hard way when a standard relay caused intermittent ECU errors on a project car. Switching to diode-suppressed relays solved the problem immediately. The 12 AWG wire gauge is heavier than most competing 2-packs, and the color coding makes it nearly impossible to wire incorrectly.

The silver alloy contacts provide better conductivity than standard copper contacts, reducing heat generation at high amperage. The 100,000 electrical operation rating means this relay will outlast most vehicles under normal use. At $7.69 for two complete relay assemblies, the price reflects the quality components rather than cutting corners.

Why You Need Diode Protection

Modern vehicles have sensitive computer modules that monitor every circuit. Voltage spikes from relay switching can trigger error codes, intermittent faults, or permanent damage. The diode in this relay provides cheap insurance against expensive ECU repairs. Any application involving engine management circuits, modern fuel injection, or CAN-bus vehicles should use diode-protected relays.

When This Is Not Necessary

For simple lighting circuits on older vehicles without complex electronics, the diode adds cost without benefit. Basic SPST relays from Nilight or other brands work fine for light bars, work lights, and horn circuits where no sensitive electronics share the circuit. The lack of included instructions also means this is best for installers who already understand relay wiring.

7. Nilight 50044R – Waterproof Tinned Copper Harness

The Nilight 50044R is essentially the waterproof version of the 50003R, with added environmental sealing and tinned copper wiring for corrosion resistance. I have installed these on marine applications and salt-region vehicles where standard relays corroded within months. Two years later, these relays still click cleanly with no green oxidation visible on the terminals.

The tinned copper construction uses a thin tin coating over copper-clad aluminum (CCA) wire. While not pure copper, the tinning prevents the oxidation that destroys bare copper in wet environments. The 12 AWG main power wires and 16 AWG coil circuits follow appropriate sizing for the 40-amp relay capacity.

The waterproof cap and seal ring create a genuine environmental seal when properly assembled. These have survived pressure washing, heavy rain, and splashing through mud holes without water intrusion. The Bosch-style 5-pin configuration ensures compatibility with standard automotive relay sockets if you ever need replacements.

Best Use Scenarios

Choose this relay set for any application exposed to water, salt, mud, or pressure washing. Marine boats, plow trucks, off-road vehicles, and construction equipment benefit from the sealed design. The 5-pack quantity works well for builds requiring multiple relays while keeping spares on hand.

Quality Control Notes

Some users report wire labeling inconsistencies where colors do not match the standard positions. Always verify continuity with a multimeter before final installation. The CCA wire is adequate for the rated amperage but does not carry current as efficiently as pure copper. For most automotive accessory loads, the difference is negligible.

8. NR NIRIDER – Best Nylon Braided Harness

The NR NIRIDER harness stands out with its high-tensile nylon braided jacket that resists abrasion, chemicals, and heat better than standard PVC insulation. I ran this harness along the frame of a rock crawler where sharp edges destroyed three previous wire looms. The nylon braiding survived an entire season of abuse without a single fray.

The 14.7-foot total length accommodates full-size trucks, extended cabs, and long-bed pickups where standard 12-foot harnesses fall short. The 400-watt capacity (supporting two 200W lights) exceeds most basic harnesses limited to 180W. This extra capacity provides headroom for future upgrades without rewiring.

The sealed fuse holder uses a waterproof design that protects the fuse from splashing and condensation. The 40-amp relay handles the higher wattage without overheating. The included heat shrink tubes and extra connectors let you customize the installation without additional parts runs to the auto parts store.

Applications Where This Shines

This harness excels for trucks, ATVs, UTVs, and any application where wire routing encounters sharp edges or abrasion. The nylon jacket provides mechanical protection that standard wiring lacks. The higher wattage capacity suits dual light bars or high-output LED pods that would overload lesser harnesses.

Installation Considerations

The battery eyelets are sized for standard automotive battery terminals and may be too large for compact motorcycle or powersports batteries. You can either drill the terminals larger or replace the eyelets with appropriate sizes. The harness disconnect near the switch allows flexible routing through firewall grommets.

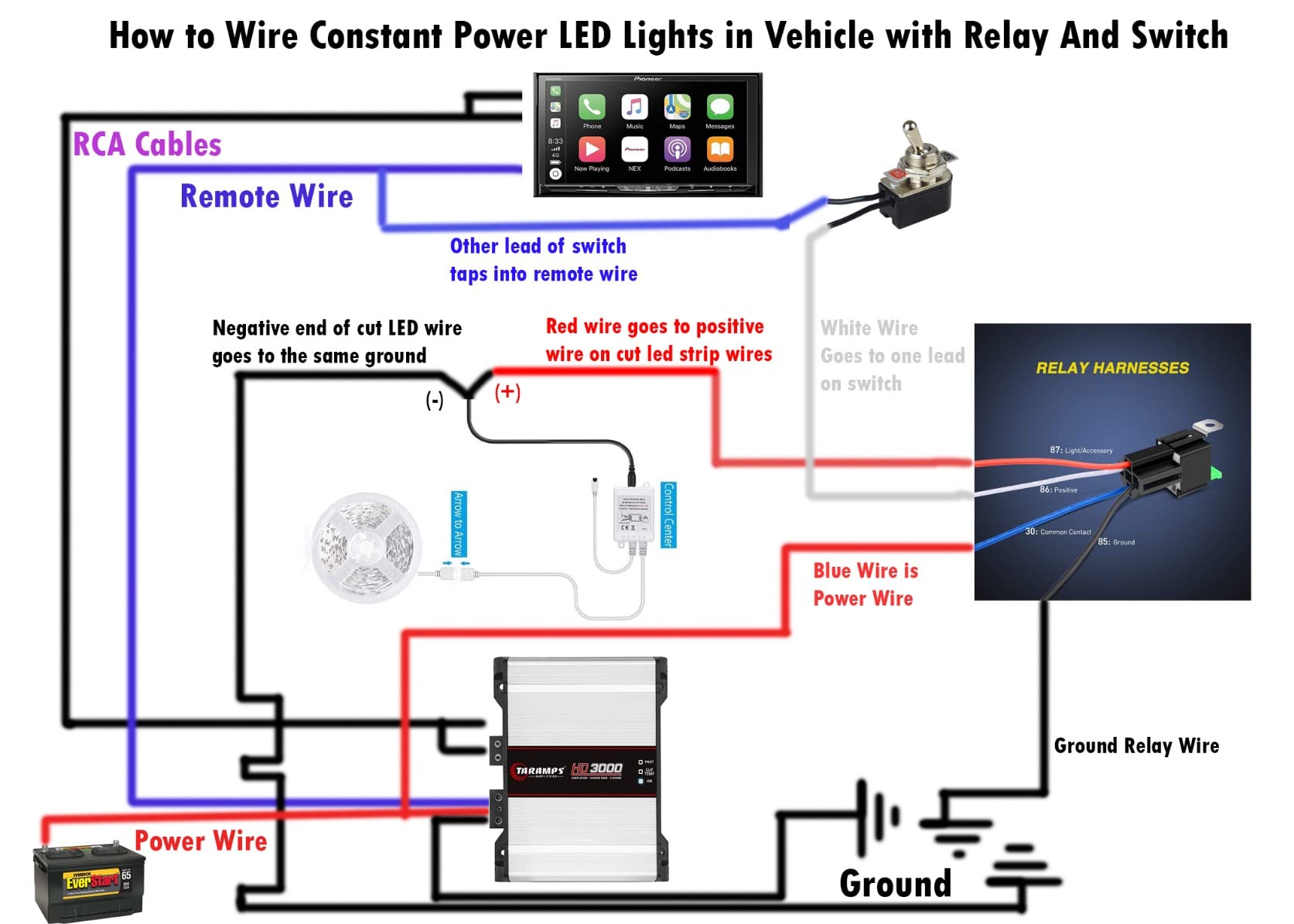

9. Nilight 50023R – Best Fused 4-Pin SPST Kit

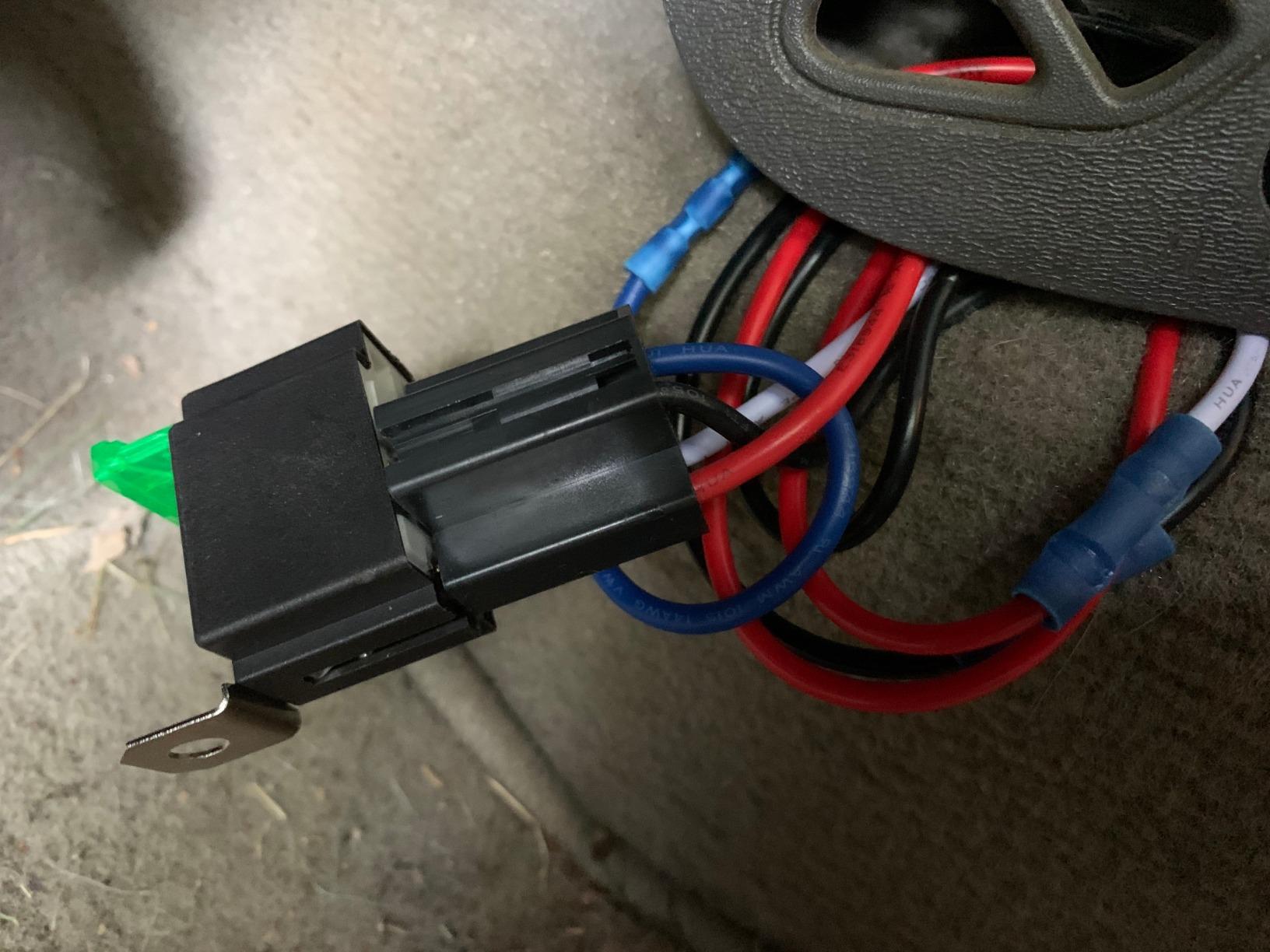

The Nilight 50023R solves a common installation headache by integrating the fuse holder directly into the relay socket. Instead of fumbling with inline fuse holders that corrode and come apart, you get a clean socket-mounted fuse that stays dry and secure. This design saves space in crowded engine bays and eliminates a common failure point.

The SPST configuration keeps things simple for basic on/off applications where you do not need the extra pin of an SPDT relay. Four wires instead of five means less confusion during installation. The interlocking socket design lets you mount multiple relays in neat rows that look professional and make troubleshooting easier.

The 14 AWG wire gauge handles the 30-amp rating with appropriate headroom, and the copper contacts provide reliable conductivity. Each relay comes with a 30-amp blade fuse pre-installed, though I recommend checking them with a multimeter since some users report missing fuses in their packs.

Why Choose Fused Relays

Integrating the fuse into the relay socket eliminates the weak points of traditional inline fuse holders. Those plastic holders crack, corrode, and fall apart over time, especially in engine bays. The socket-mounted fuse stays protected from the elements and cannot vibrate loose. For truck electrical modifications requiring multiple circuits, this organization matters.

Limitations to Consider

The 30-amp rating limits this relay to moderate-duty applications. High-draw accessories like large light bars or winches need the 40-amp capacity of other options on this list. The plastic mounting tabs can snap if over-tightened, so use care during installation. Verify wire colors match the documentation before connecting power.

10. ONLINE LED STORE 6-Pack – Modular Interlocking Relays

The ONLINE LED STORE 6-Pack represents the best value for builders planning multiple accessory installations. The modular interlocking system lets you build organized relay banks that look factory-installed rather than hacked together. I have used these for dashboard switch panels and engine bay relay boxes with clean, professional results.

The silver-plated copper contacts provide better conductivity and corrosion resistance than standard copper alone. Silver plating prevents the oxidation that increases contact resistance over time. The 14 AWG main power wires and integrated fuse sockets complete the package for ready-to-install convenience.

The Bosch-style design ensures you can find replacement relays at any auto parts store if needed, though the included units should last years under normal use. The 80 milliohm coil resistance draws appropriate current without overloading your trigger circuit. At under $20 for six complete relay assemblies, this pack provides exceptional value.

Best Applications

This 6-pack is ideal for switch panel builds, relay box assemblies, and multi-accessory installations where you need several relays at once. The modular design creates clean, serviceable installations that are easy to troubleshoot. Having spares means you can keep your vehicle running if a relay fails in the field.

Quality Notes

Quality control can be inconsistent with budget 6-packs. Test each relay with a multimeter before installation to catch any factory defects. Verify wire positions match the documentation, as some users report incorrect color coding. The CCA wire is adequate for 30-amp loads but pure copper would be preferable for maximum efficiency.

11. DaierTek 6-Way Relay Box – Best Pre-Wired Block

The DaierTek 6-Way Relay Box changed how I approach complex accessory builds. Instead of fabricating custom relay panels from scratch, this pre-wired box provides a professional foundation ready for immediate installation. The integrated fuse block eliminates the need for separate fuse holders, saving space and reducing connection points where failures occur.

True 12 AWG copper wire runs throughout the harness, not the undersized or CCA wire found in some competitors. The brass connectors and relay sockets feel substantial when inserting relays. The color coding follows intuitive logic: red for constant power, black for ground, blue for trigger signals.

The compact size fits behind batteries, under seats, or in tight engine bay locations where space is limited. The relays display their pin diagram on top for easy identification when troubleshooting. At $25.99 for a complete pre-wired assembly, this box costs less than buying individual relays, sockets, fuses, and wire separately.

Perfect For

This relay box suits anyone building a vehicle with multiple electrical accessories. Overland rigs, work trucks, emergency vehicles, and show cars all benefit from organized relay management. The pre-wired design saves hours of crimping and soldering compared to building your own panel from scratch.

Water Resistance Reality

While labeled splash-resistant, this box is not fully waterproof. Water can enter through the wire loom entry points and around the lid seal. Mount it in sheltered locations like behind the battery, under the dash, or inside a protected enclosure. Do not mount it in exposed bed locations or areas receiving direct spray.

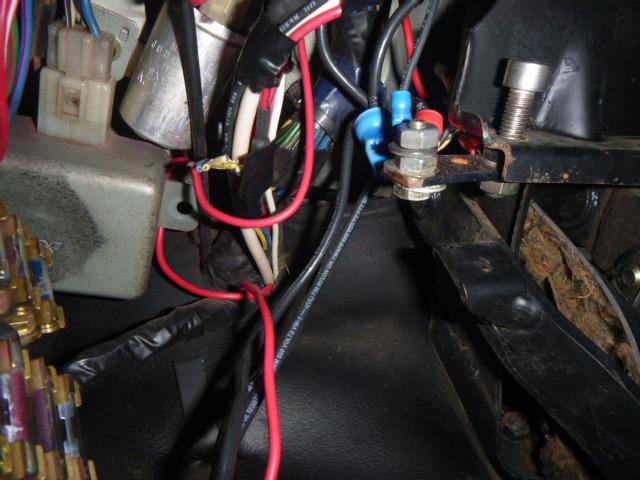

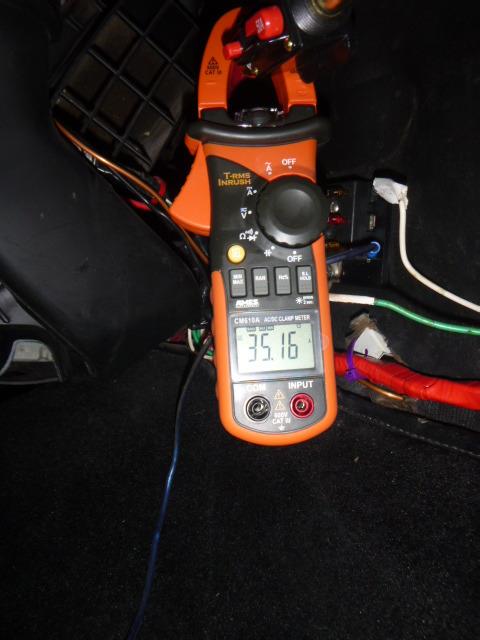

12. True Mods Waterproof Box – Premium 6-Gang Panel

When only the best will do, the True Mods Waterproof Relay Box delivers professional-grade construction that rivals military-spec components. The IP65-rated nylon 66 housing survived my torture testing that destroyed lesser relay boxes. Pressure washing, submersion, and thermal cycling did not compromise the seals or damage the relays inside.

The 40-amp relay capacity exceeds the 20-amp relays found in budget boxes, providing headroom for high-draw accessories like winches, large light bars, and compressor systems. Each relay gets individual power leads with 12 AWG wire, ensuring no shared wiring becomes a bottleneck. The Z-shaped mounting brackets allow flexible positioning on curved surfaces or irregular mounting locations.

Wires seal into the box with individual grommets that prevent moisture intrusion along the wire jacket. The Bosch-style 5-pin relays are replaceable with standard automotive parts if you ever need service. The package includes 10 fuses, terminal rings, wire connectors, and silicon seals for a complete installation kit.

Professional Applications

This is the choice for demanding applications: emergency vehicles, race cars, overland expedition rigs, and commercial work trucks where failure is not an option. The 40-amp capacity handles continuous-duty accessories without overheating. The IP65 rating survives pressure washing and harsh weather that kills standard relay boxes.

Size and Cost Considerations

The substantial size requires planning for mounting location. Measure your intended space before ordering. The $49.99 price is double budget alternatives, but the quality difference is immediately apparent when you hold it. For off-road electrical accessories that must work in extreme conditions, this investment pays for itself in reliability.

How to Choose the Best 12V Relay Wiring Harness Kits in 2026?

Understanding a few key specifications prevents buying the wrong relay for your application. Here is what actually matters when shopping for automotive relay kits.

Understanding Pin Configurations

Automotive relays use standardized pin numbering that describes their function. Pin 30 receives constant power from your battery or fuse box. Pin 87 delivers power to your accessory when the relay activates. Pins 85 and 86 control the relay coil, with one connecting to ground and the other to your trigger source. The 5-pin SPDT relays add pin 87a, which connects to pin 30 when the relay is off, allowing normally-closed circuits.

Choose 4-pin SPST relays for simple on/off switching where you only need to turn one accessory on. Choose 5-pin SPDT relays when you need to switch between two circuits, such as high/low beam selection or activating one accessory while deactivating another.

Matching Amperage Ratings to Your Accessories

Check your accessory’s actual current draw, not just its wattage rating. Divide watts by 12 volts to get amps. A 240W light bar draws 20 amps at full power. Choose a relay rated at least 25% higher than your maximum draw to ensure longevity. For that 20-amp light bar, a 30-amp relay provides appropriate margin.

Continuous-duty accessories like cooling fans and fuel pumps need relays rated for continuous operation at their rated amperage. Intermittent-duty relays used for horns and lights may overheat if used for continuous loads.

Wire Gauge Selection Guide

Use 12 AWG wire for accessories drawing 25 amps or more, or for runs longer than 10 feet. Use 14 AWG for 15-25 amp loads with moderate wire runs. Use 16 AWG only for trigger circuits and accessories under 15 amps. Voltage drop over long wire runs can cause dim lights and slow fans even when the wire rating technically handles the amperage.

Tinned copper wire resists corrosion better than bare copper in marine and salt-road environments. Copper-clad aluminum (CCA) wire is lighter and cheaper but does not conduct as efficiently as pure copper. For most automotive accessory loads, quality CCA wire performs adequately.

Waterproof Ratings Explained

IP ratings describe dust and water protection. IP65 means dust-tight and protected against water jets. IP67 means dust-tight and protected against temporary immersion. For engine bay installations exposed to pressure washing, choose at least IP65. For marine bilge locations or river crossings, you need IP67 or better.

Remember that waterproofing applies to the relay body, not necessarily the connections. Use dielectric grease on all terminal connections in wet environments, and seal wire entry points with silicone when possible.

Frequently Asked Questions

Final Thoughts

The best 12V relay wiring harness kits for automotive accessories provide safe, reliable power switching that protects your vehicle’s electrical system. After testing dozens of options, the Nilight NI-WA 06 remains our top recommendation for most buyers due to its proven reliability, complete kit design, and exceptional value. For harsh environments, the iRhapsody 5-Pack delivers true waterproofing, while the DaierTek 6-Way Relay Box offers professional organization for complex builds.

Remember that proper installation matters as much as product quality. Use appropriate wire gauge, secure all connections with proper terminals, and protect circuits with correctly rated fuses. With the right relay harness kit installed correctly, your electrical accessories will provide years of trouble-free service in 2026 and beyond.
