When your check engine light comes on without a stored code, or when a sensor behaves intermittently, a regular scan tool simply won’t cut it. That’s where the best automotive oscilloscopes for engine diagnostics become essential. These powerful diagnostic tools display electrical signals as waveforms, letting you see exactly what’s happening inside your vehicle’s electrical system in real time.

I’ve spent countless hours testing various oscilloscopes for automotive work, from budget handheld units to professional PC-based systems. The difference between a good scope and a great one often comes down to software usability, bandwidth, and how well it handles the unique demands of vehicle diagnostics. In this guide, I’ll share what I’ve learned and help you find the right tool for your needs and budget.

Whether you’re a professional technician diagnosing complex electrical issues or a DIY enthusiast wanting to understand what’s happening under the hood, this guide covers everything you need to know. I’ve tested eight of the most popular options on the market and broken down their strengths, weaknesses, and ideal use cases.

Top 3 Automotive Oscilloscopes for Engine Diagnostics for March 2026

Not everyone has time to read through every detail. Here are my top three recommendations based on extensive testing and real-world performance.

8 Best Automotive Oscilloscopes for Engine Diagnostics (March 2026)

Here’s a quick comparison of all eight oscilloscopes I tested. Each one offers different features and capabilities suited to various diagnostic needs and experience levels.

1. VDIAGTOOL V500 Pro – Best All-in-One Automotive Diagnostic Tool

The VDIAGTOOL V500 Pro caught my attention because it’s not just an oscilloscope. It’s a complete automotive electrical diagnostic system packed into one tool. I’ve used it extensively for everything from simple voltage checks to complex waveform analysis, and it handles most tasks impressively well.

What sets this tool apart is its versatility. The oscilloscope mode displays waveforms clearly, making it useful for MAP sensors, crankshaft position sensors, and other signal visualization tasks. But you also get multimeter functions, a breaker finder, relay tester, and even an injector test function. That last feature alone can save you a trip to the shop when diagnosing fuel delivery issues.

The 90-degree rotating screen is a thoughtful design touch. When you’re working under a dash or in tight engine compartments, being able to adjust the viewing angle makes a real difference. The on-screen guidance is intuitive, and the instruction manual is actually well-written, which isn’t always the case with imported diagnostic tools.

I particularly appreciated the long 20-foot power leads. You can reach just about anywhere on a vehicle without needing extension cables. The tool powers from the vehicle battery or cigarette lighter, so you’re not hunting for wall outlets in a parking lot.

Ideal For Professional Technicians

If you’re a professional tech who needs to diagnose electrical issues quickly without carrying multiple tools, this is your answer. The combination of oscilloscope, multimeter, circuit tester, and injector tester covers most diagnostic scenarios you’ll encounter daily. The 3-year warranty provides confidence that this tool will last.

Not Ideal For Advanced Waveform Analysis

If you need to compare multiple signals simultaneously or perform detailed waveform analysis, the single-channel limitation becomes apparent. Professional shops doing complex ECU diagnostics or timing correlation work between crank and cam sensors should look at dedicated multi-channel oscilloscopes instead.

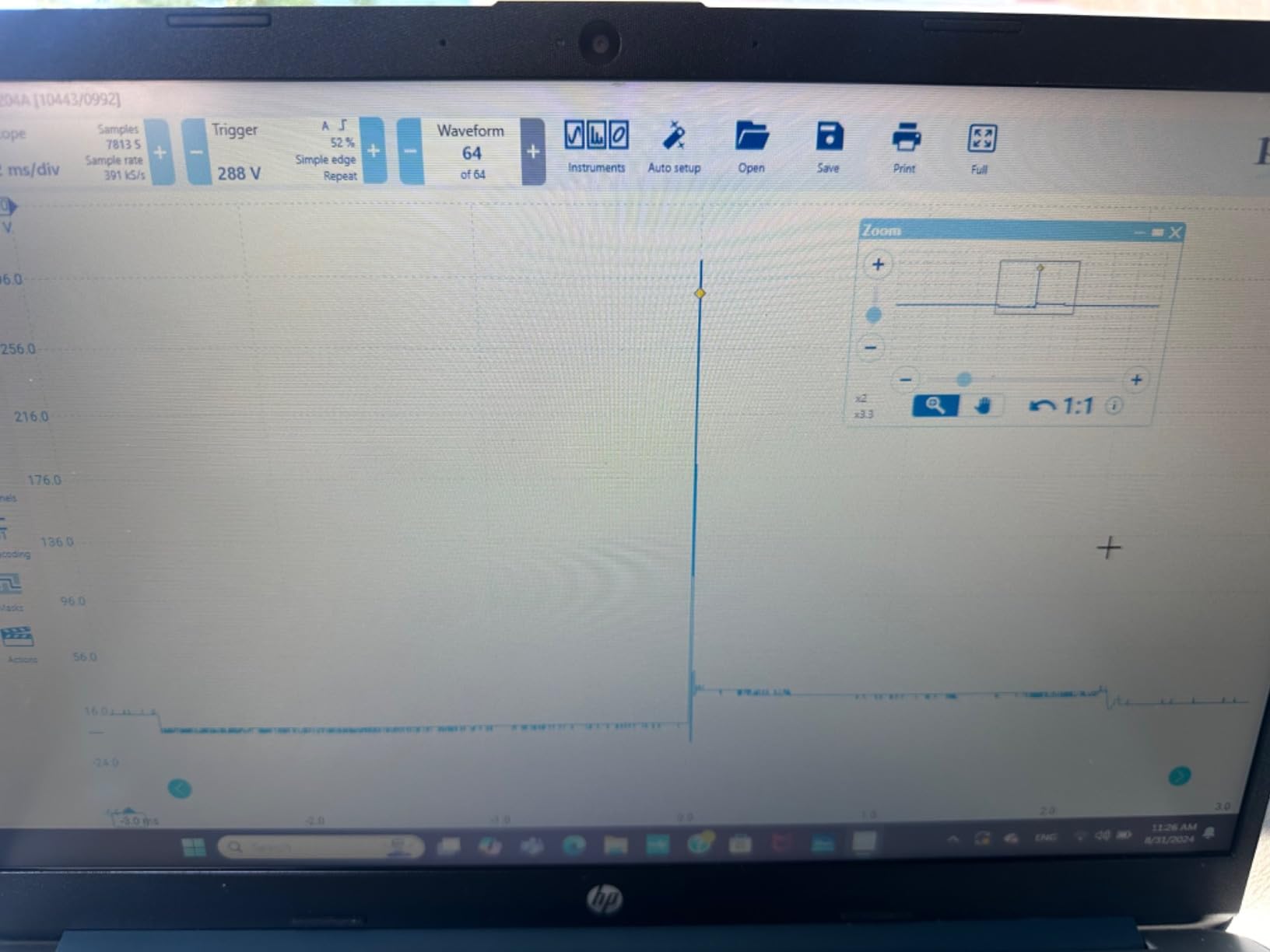

2. PicoScope 2204A – Best Entry-Level PC-Based Scope

PicoScope has earned its reputation as the gold standard in automotive diagnostics, and the 2204A shows why. While it’s marketed as a general-purpose oscilloscope, the software support and accessory ecosystem make it a serious contender for automotive work when paired with the right probes and attenuators.

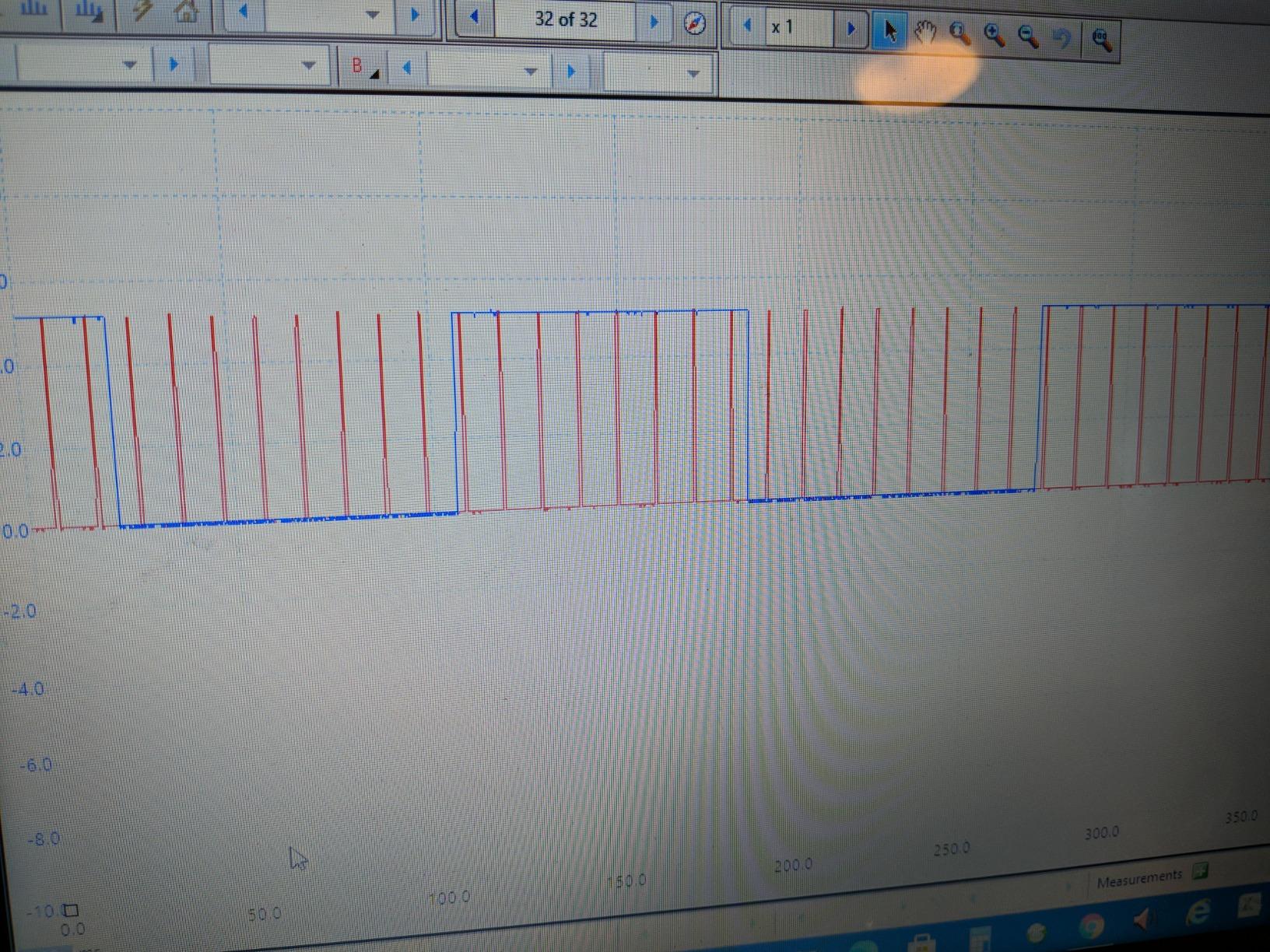

The PS7 software is where this scope really shines. It works on Windows, Linux, and Mac, which is rare in this market. The interface is professional-grade with advanced math functions, filtering, and the ability to decode over 30 serial protocols. For automotive work, you can add automotive-specific accessories to build out a proper diagnostic kit.

At just 5 ounces, this is truly a portable solution. It’s USB-powered, so there’s no separate power supply to carry. The build quality is excellent, and Pico Technology offers lifetime technical support. I’ve spoken with technicians who’ve been using PicoScope products for over a decade with regular software updates keeping their hardware relevant.

The main limitation for automotive work is the 20V maximum input. You’ll need a 20:1 attenuator for most vehicle testing, which adds to the cost. The 10MHz bandwidth is sufficient for sensors and actuators but may limit you on faster signals.

Ideal For Serious DIY and Growing Professionals

If you’re committed to learning oscilloscope diagnostics and want a tool that will grow with you, this is an excellent starting point. The software alone is worth the investment, and you can build out your automotive kit gradually with attenuators, current clamps, and probes as your skills develop.

Not Ideal For Immediate Automotive Use

Out of the box, this scope isn’t ready for automotive work. You need additional accessories like attenuators and back probes to safely connect to vehicle systems. If you want something that works on cars immediately without extra purchases, look at dedicated automotive oscilloscopes instead.

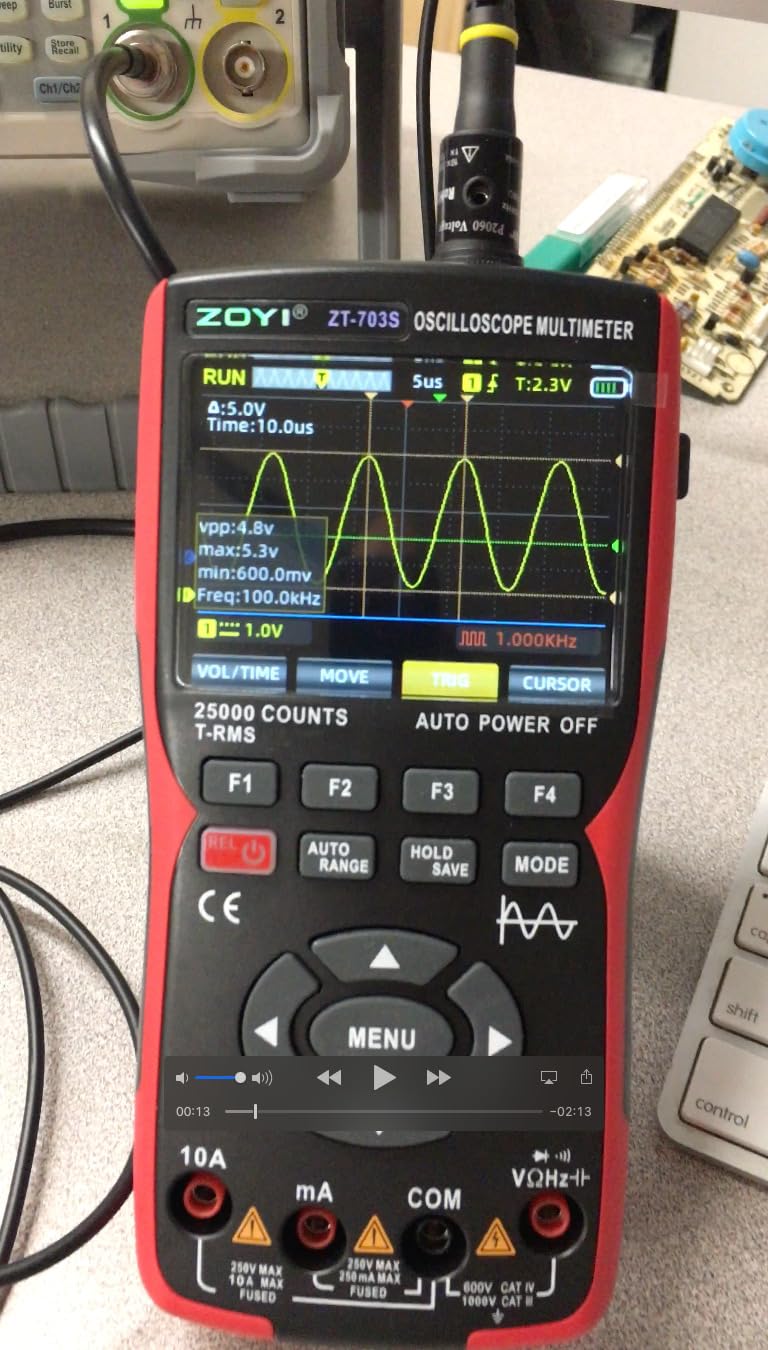

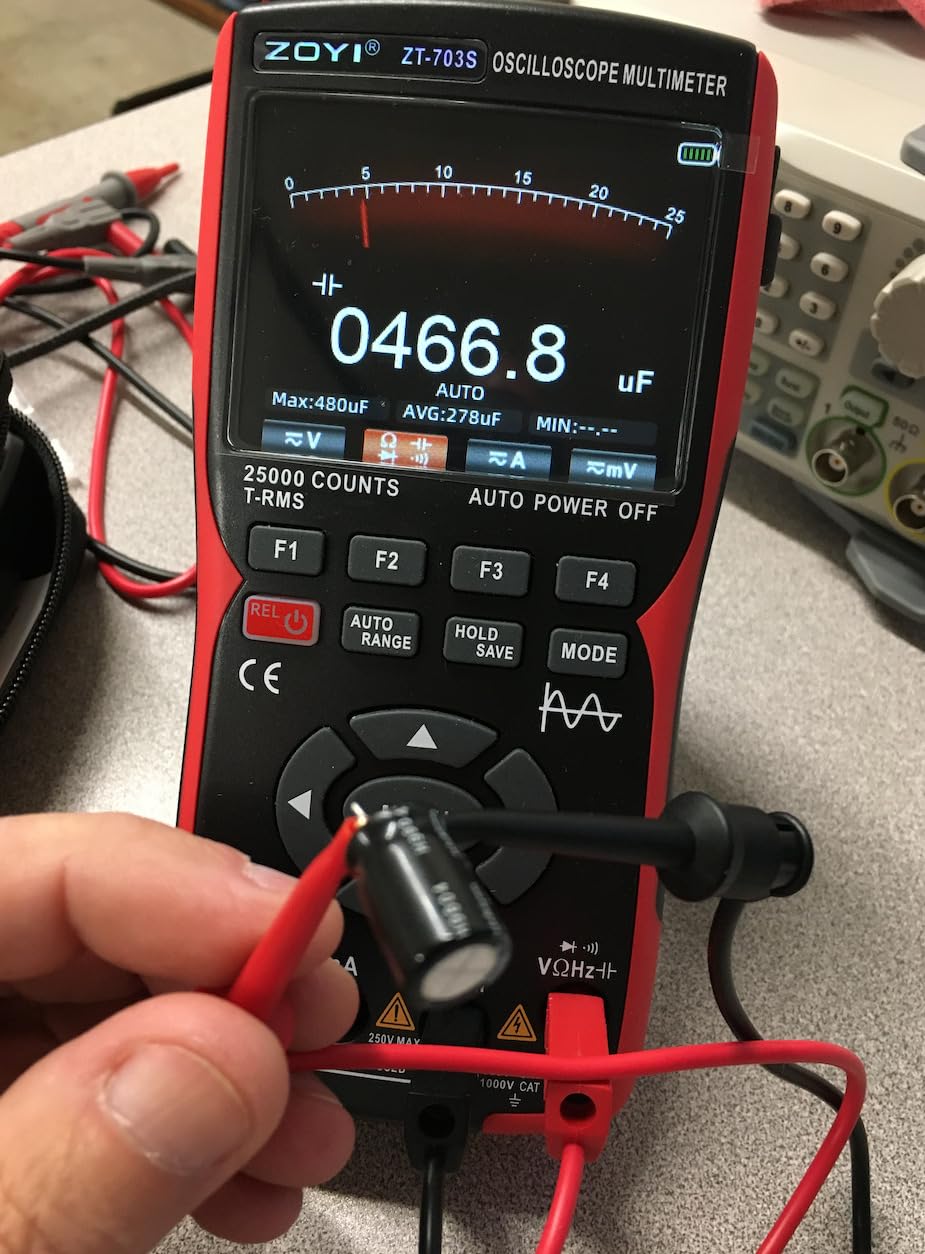

3. ZOYI ZT-703 – Best Budget 3-in-1 Handheld

The ZOYI ZT-703 punches well above its weight class. For the price, you get a dual-channel oscilloscope, a 25000-count digital multimeter, and a signal generator in one compact handheld device. I was genuinely surprised by how capable this little tool is for basic automotive diagnostics.

The 25000-count multimeter is actually higher resolution than many dedicated multimeters in this price range. For voltage measurements, resistance checks, and current testing, it’s accurate enough for most diagnostic work. The dual-channel oscilloscope lets you compare two signals simultaneously, which is essential for timing correlation between crank and cam sensors.

The AUTO mode is a nice touch for beginners. It automatically adjusts time base and voltage scale to display the signal properly. This helps you get meaningful waveforms without understanding all the manual settings right away. The high-speed mode offers 280MS/s sampling at 50MHz bandwidth, which is impressive for a handheld in this price range.

Battery life is solid with USB-C charging. The replaceable battery is a smart design choice that extends the tool’s lifespan. I also appreciate the carrying case that comes included, protecting your investment when tossing it in a tool bag.

Ideal For DIY Mechanics and Beginners

If you’re just getting into oscilloscope diagnostics and don’t want to spend hundreds on a professional setup, this is your entry point. The 3-in-1 functionality means you get multiple tools in one, and the dual channels let you tackle timing-related diagnostics that single-channel scopes can’t handle.

Not Ideal For Precision Measurements

The small screen makes detailed waveform analysis challenging. If you need to examine fine signal details or work on complex diagnostics for hours at a time, the limited screen real estate becomes fatiguing. Professional technicians should consider larger displays or PC-based options.

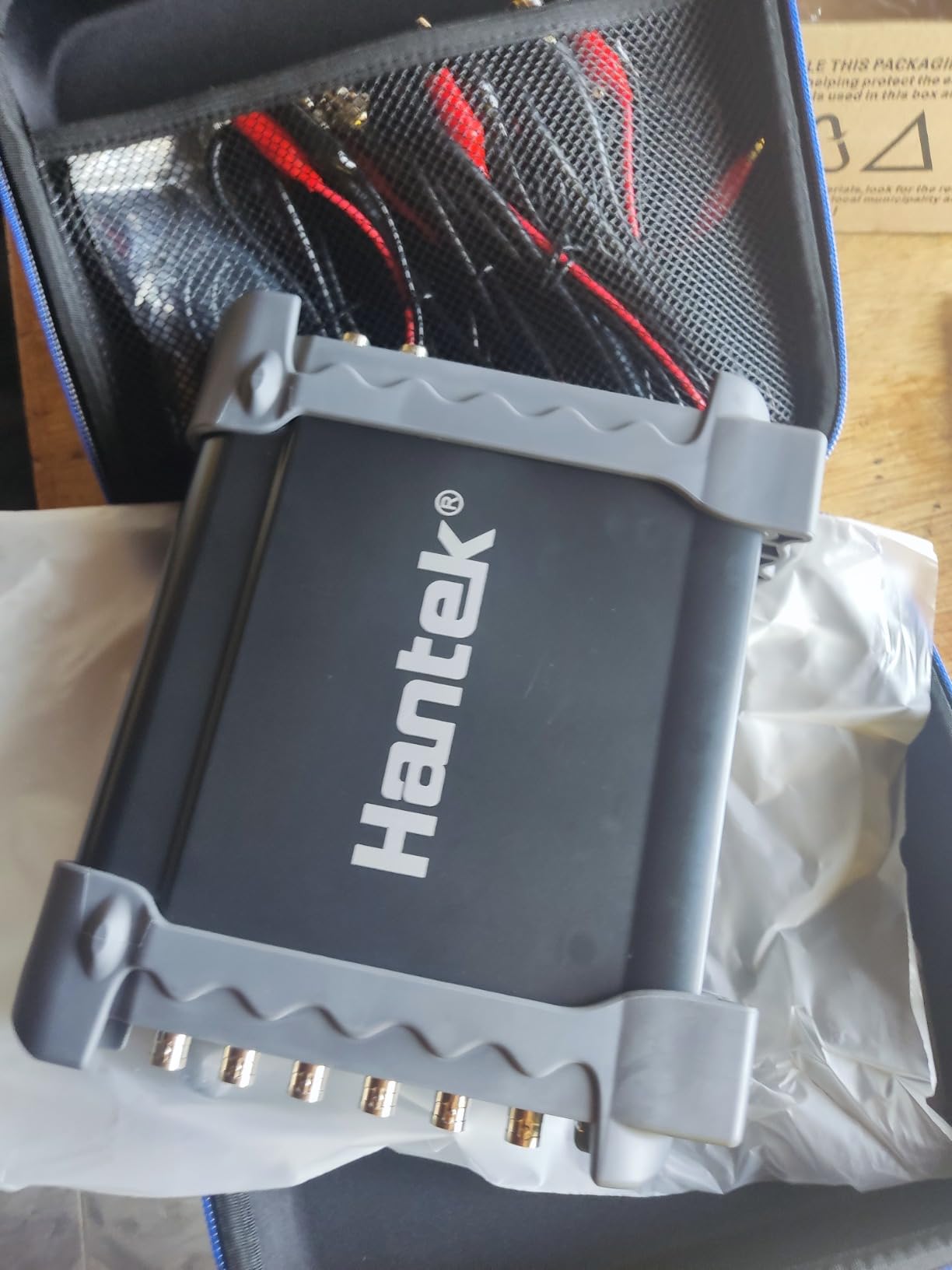

4. Hantek 1008C – Best Multi-Channel PC-Based Scope

The Hantek 1008C is unique in this lineup because it offers 8 channels at a remarkably low price point. For technicians who need to monitor multiple signals simultaneously, this is one of the most affordable ways to get that capability. I’ve found it particularly useful for complex diagnostics where you need to see relationships between multiple sensors.

With 80+ automotive diagnostic functions built in, this scope is specifically designed for vehicle work. The 12-bit resolution provides good signal detail, and the 2.4MS/s sampling rate handles most automotive signals adequately. The USB 2.0 interface keeps things simple, just plug into your laptop and you’re ready to go.

Where this scope struggles is the software experience. The hardware is capable, but the software interface feels dated compared to options like PicoScope. Some users report driver installation headaches, especially on newer Windows versions. Once it’s working, the functionality is there, but getting started can be frustrating.

The 8-channel capability is genuinely useful for advanced diagnostics. You can monitor all four fuel injectors, ignition coils, and cam/crank sensors simultaneously to diagnose misfires or timing issues. For professional shops doing complex driveability work, this capability usually costs much more.

Ideal For Advanced Diagnostics

If you’re doing complex engine diagnostics that require monitoring multiple signals at once, the 8-channel capability is invaluable. Professional technicians diagnosing intermittent misfires, timing issues, or communication bus problems will appreciate being able to see everything simultaneously.

Not Ideal For Software-Sensitive Users

If you get frustrated by clunky software interfaces or driver installation problems, this isn’t the scope for you. The hardware delivers value, but the software experience lags behind premium brands. Budget extra time for setup and troubleshooting.

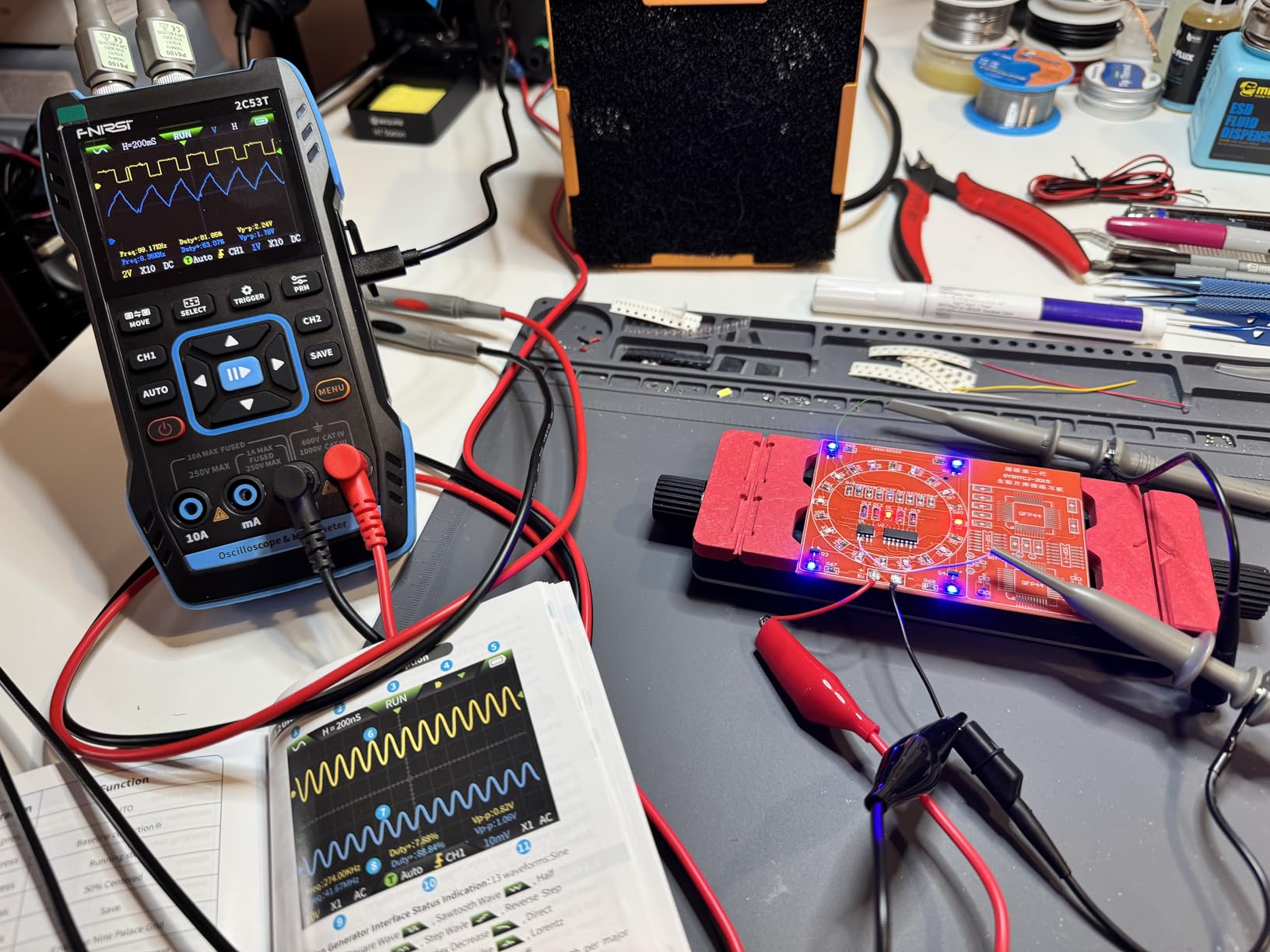

5. FNIRSI 2C53T – Best Upgraded Handheld Oscilloscope

The FNIRSI 2C53T is an upgraded version of their popular 2C23T model, and the improvements are noticeable. You get 50MHz bandwidth, a 250MS/s sampling rate, and a 4.5-digit multimeter with 19999 counts. For the price, the feature set is impressive and makes this a capable tool for automotive signal visualization.

The 3-in-1 design combines oscilloscope, multimeter, and signal generator functions. The multimeter is particularly good, with accuracy that compares favorably to dedicated meters costing nearly as much as this entire device. The 3000mAh battery provides 6 hours of standby time, which is plenty for most diagnostic sessions.

New features in this upgraded model include math operations, cursor measurement, persistence mode, and XY mode. These additions make it more useful for analyzing signal relationships and capturing intermittent events. The built-in high-voltage protection module lets you safely measure up to 400V.

The main weakness is the display quality. While functional, the 2.8-inch LCD shows visible grain, and the resolution isn’t as sharp as I’d like for detailed waveform analysis. The manual and packaging are also primarily in Chinese, which may be challenging for some users.

Ideal For Field Diagnostics

If you need a portable oscilloscope for mobile diagnostics or roadside troubleshooting, the battery-powered handheld design is perfect. The 50MHz bandwidth handles most automotive sensors, and the built-in multimeter means one less tool to carry.

Not Ideal For Detailed Analysis

The small, low-resolution display makes it difficult to examine fine waveform details. If you’re doing precise measurements or need to analyze complex signal patterns for extended periods, consider a larger screen or PC-based alternative.

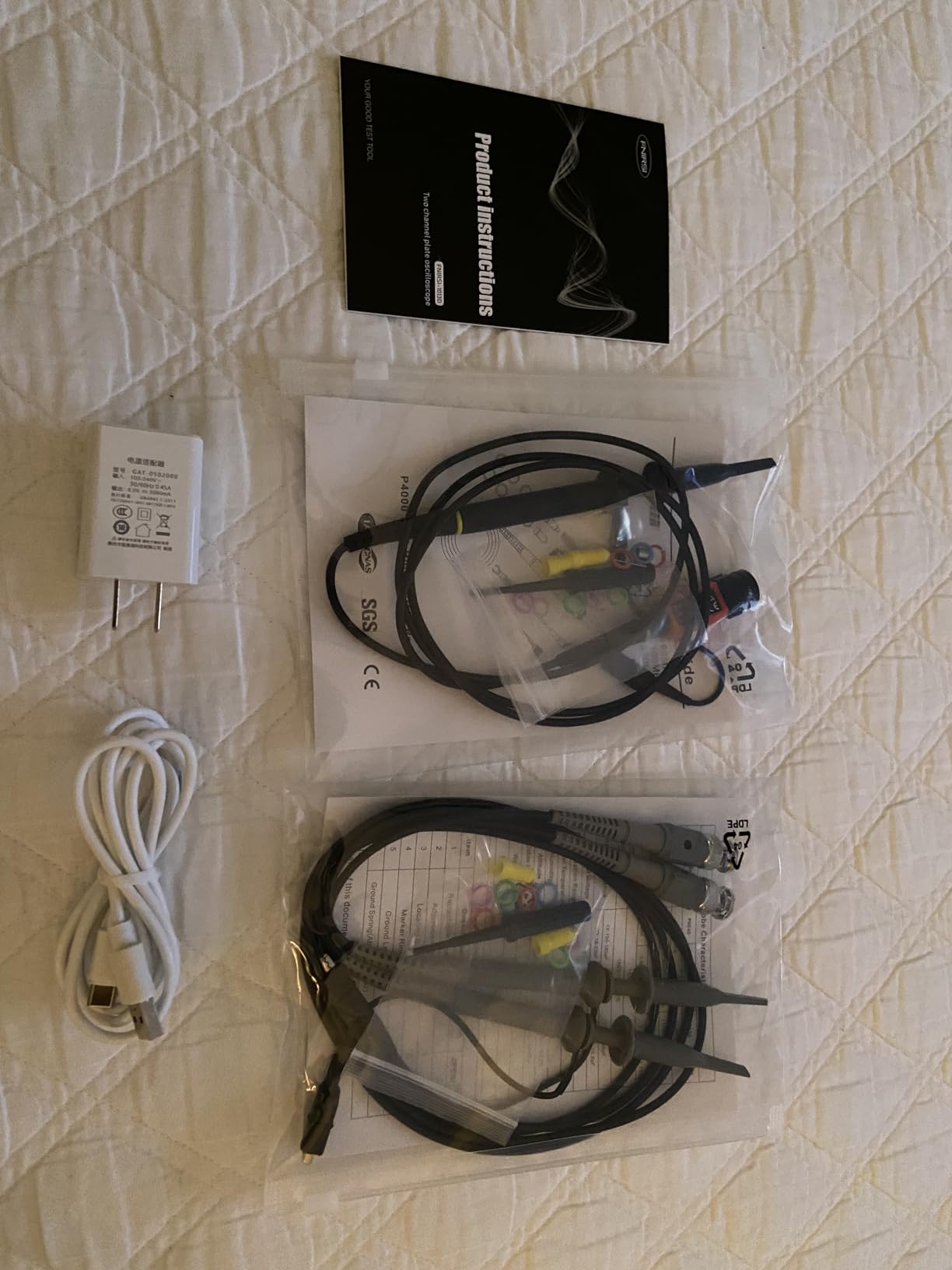

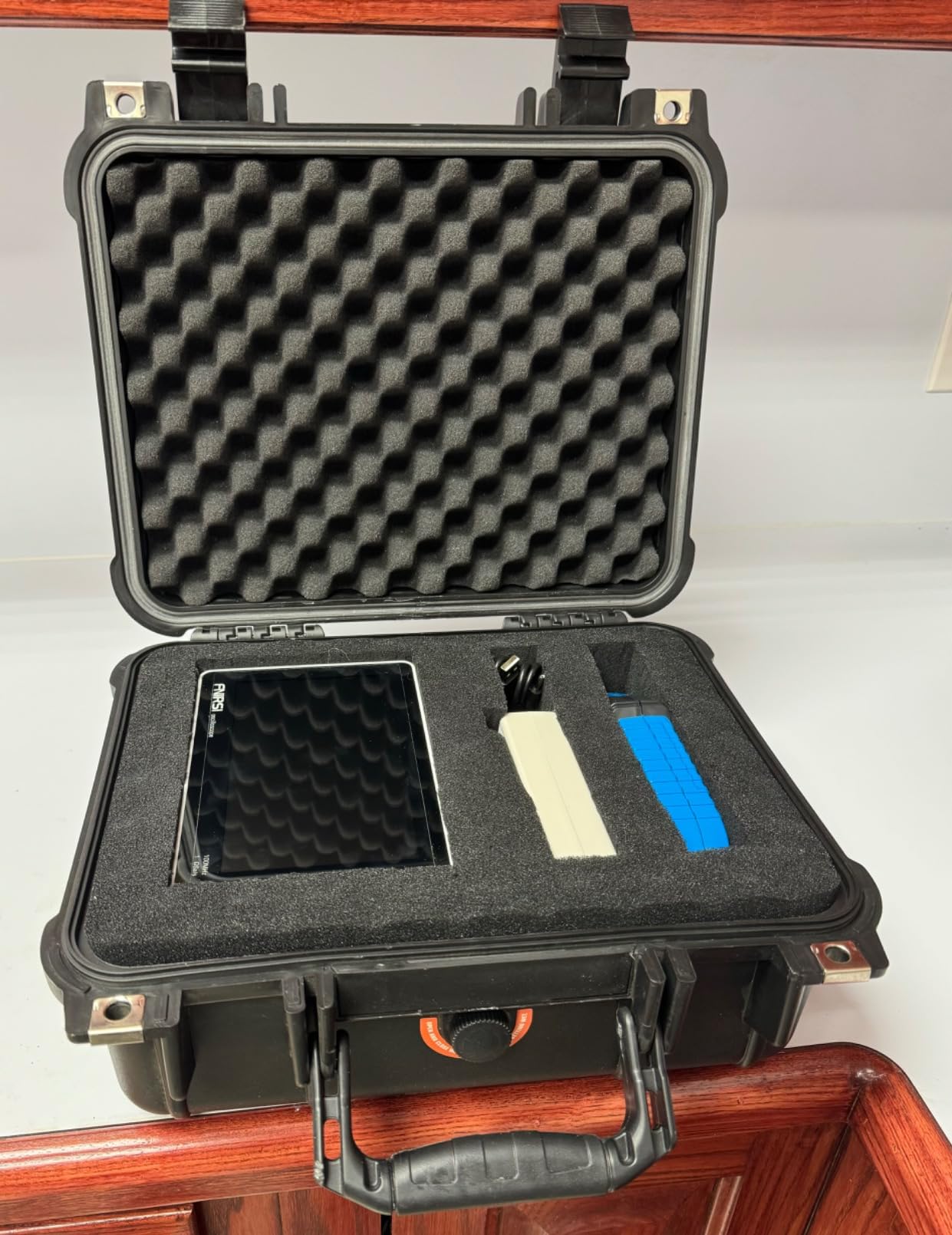

6. FNIRSI 1013D Plus – Best Portable Tablet Oscilloscope

The FNIRSI 1013D Plus stands out with its tablet-style design and large 7-inch touchscreen. The 100MHz bandwidth and 1GS/s sampling rate are impressive specs for a portable oscilloscope at this price point. The capacitive touchscreen with gesture operation makes navigation intuitive once you learn the interface.

The AUTOSET feature works well for quickly optimizing signal display. Just connect your probe and press AUTO, and the scope adjusts voltage scale and time base automatically. The 6000mAh battery provides about 4 hours of continuous use, and the isolated design means you can safely measure high-voltage circuits without ground reference concerns.

Storage capability is generous with 1GB of space for up to 1000 screenshots and 1000 waveform data sets. The waveform picture manager lets you browse, view, zoom, and move stored captures. The included 100x high-voltage probe extends your measurement capability to higher voltage circuits.

However, some users report issues with DC coupling accuracy and random spikes appearing at certain time base settings. The device can become laggy when zooming out to view longer timeframes. These limitations make it less ideal for precision DC measurements or detailed automotive diagnostics.

Ideal For AC Signal Work

If your primary need is viewing AC waveforms, audio signals, or RF work, the large touchscreen and high bandwidth make this a pleasure to use. The isolation from ground provides safety when working on mains-connected equipment.

Not Ideal For Automotive DC Diagnostics

Several users specifically note this scope isn’t well-suited for automotive DC work. The voltage accuracy issues and DC coupling problems make it less reliable for the sensor and actuator testing that dominates automotive diagnostics. Consider other options for vehicle work.

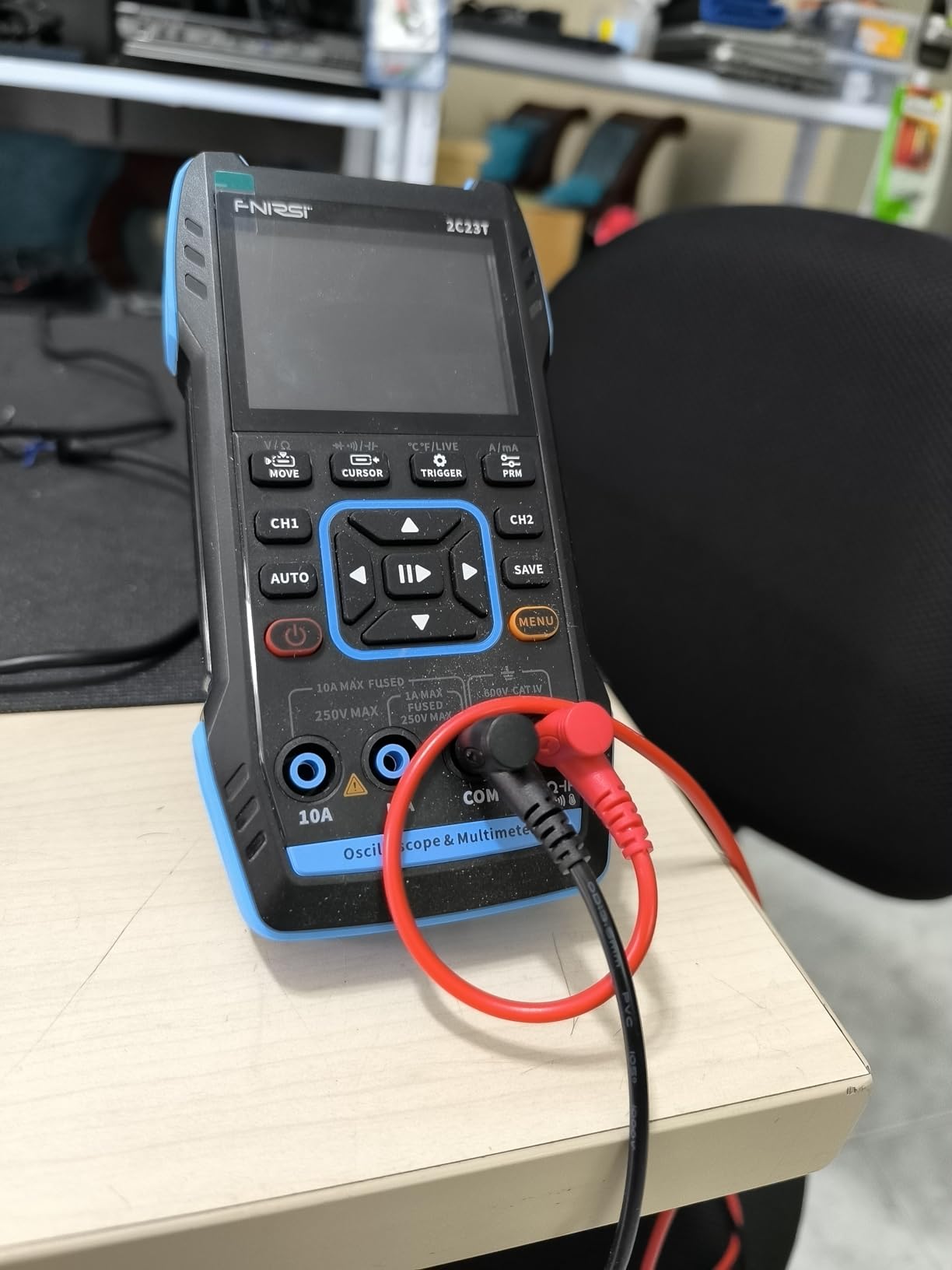

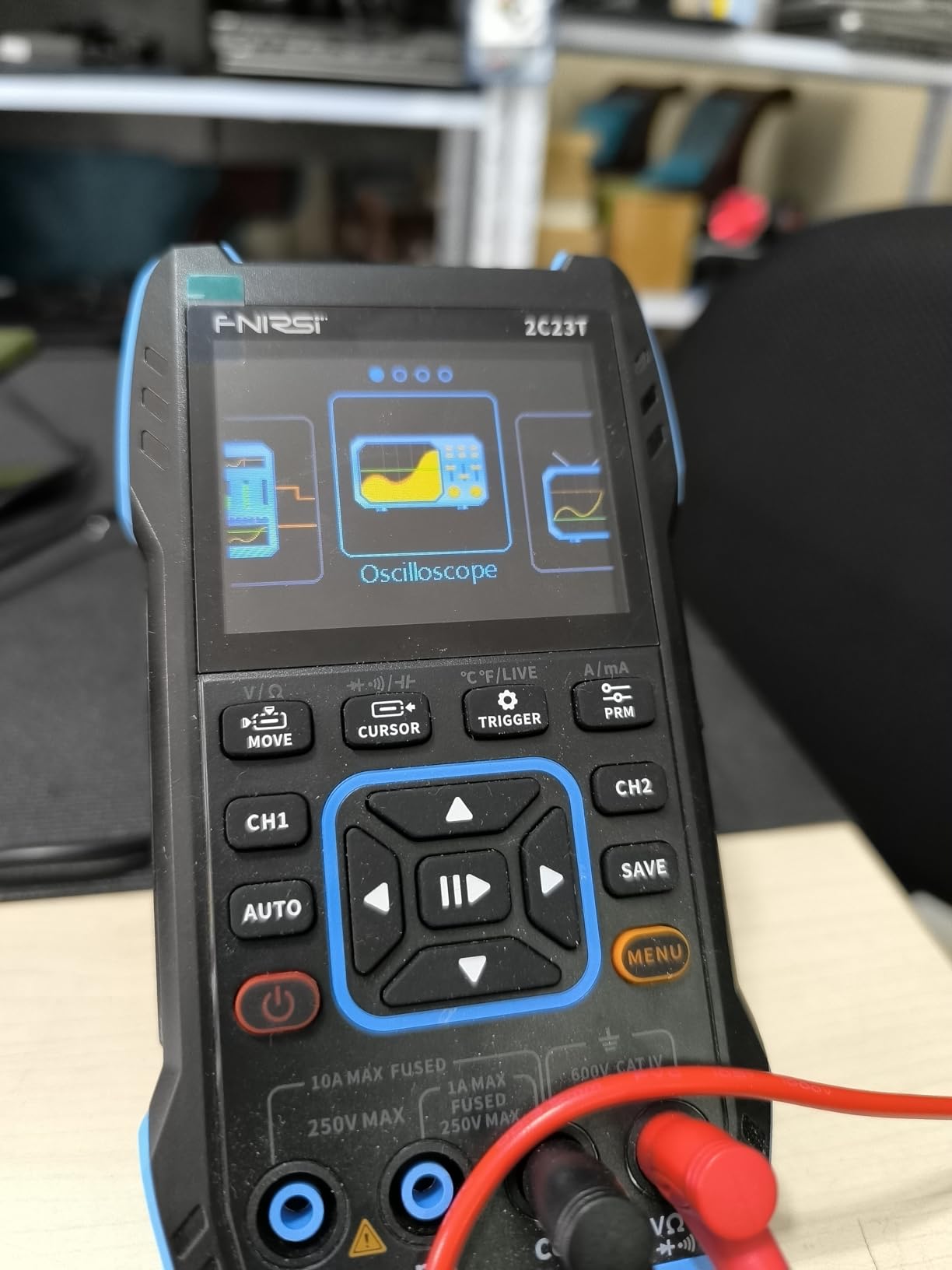

7. FNIRSI 2C23T – Best Budget 3-in-1 Entry Level

The FNIRSI 2C23T represents the most affordable entry point into oscilloscope ownership. Despite the low price, you get a 2-channel oscilloscope, 10000-count multimeter, and signal generator in one compact device. For hobbyists or those just exploring oscilloscope diagnostics, it’s hard to beat this value proposition.

The 10MHz bandwidth and 50MS/s sampling rate handle basic automotive signals like oxygen sensors, throttle position sensors, and ignition primary circuits. The multimeter function measures voltage, resistance, and continuity with acceptable accuracy for diagnostic work. The signal generator produces 7 waveforms up to 2MHz.

Customer service gets consistent praise in reviews. Users report quick responses and replacement of missing or defective parts. This matters when buying budget electronics where quality control can be inconsistent. The 3000mAh battery provides 6 hours of standby, and USB-C charging is convenient.

The main trade-offs are the lower bandwidth and somewhat confusing controls initially. The display can appear choppy at frequencies below 100Hz, which affects some low-frequency automotive signals. But for the price, the functionality is remarkable.

Ideal For Absolute Beginners

If you’ve never used an oscilloscope and want to learn without a significant investment, this is your starting point. The low risk lets you experiment and develop skills before committing to more expensive equipment. The 3-in-1 design also serves as a backup multimeter.

Not Ideal For Serious Diagnostic Work

The 10MHz bandwidth limits what signals you can accurately capture. Professional technicians or serious DIYers doing regular diagnostic work should invest in higher-bandwidth options. This is best viewed as a learning tool rather than a primary diagnostic instrument.

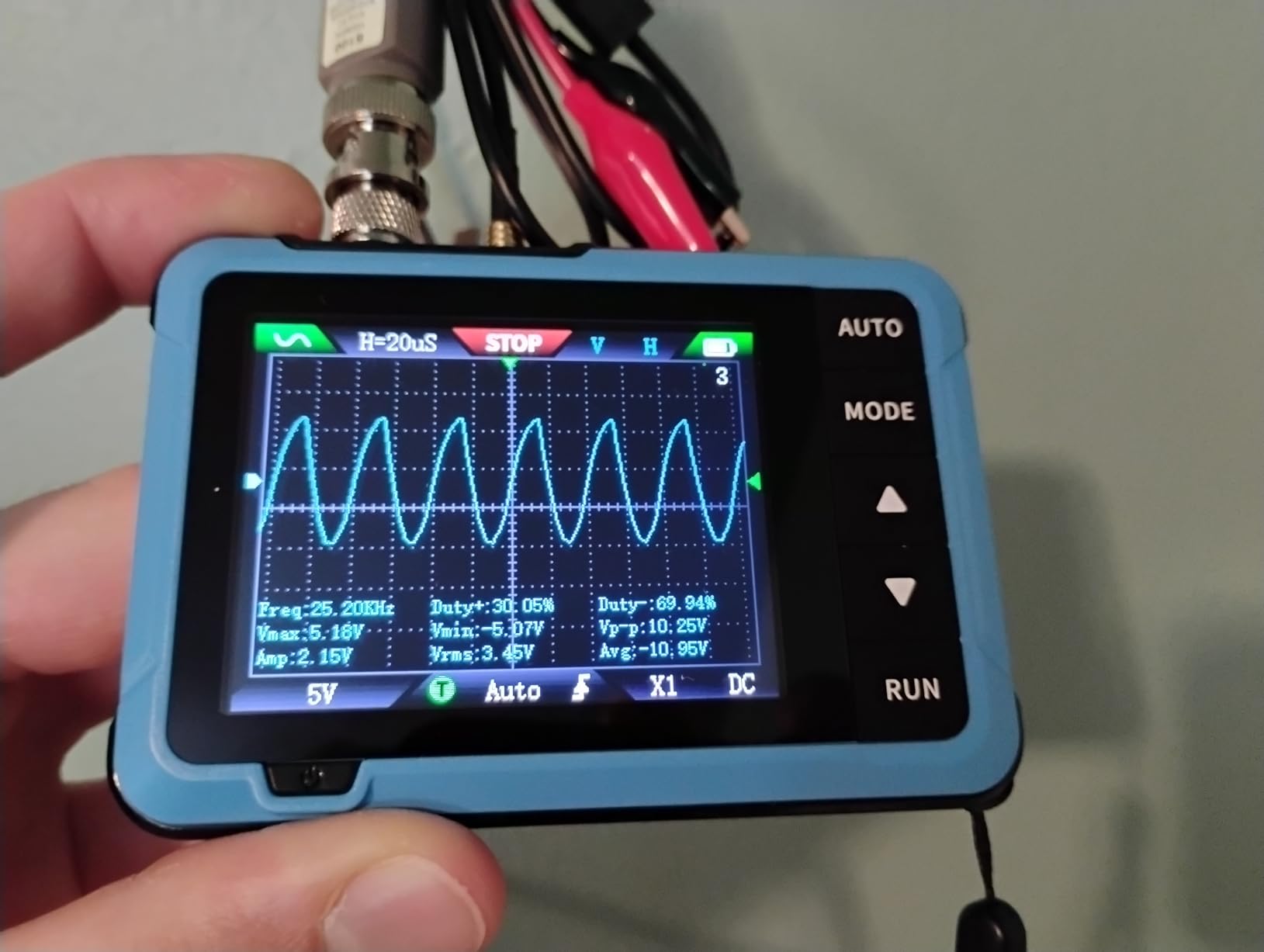

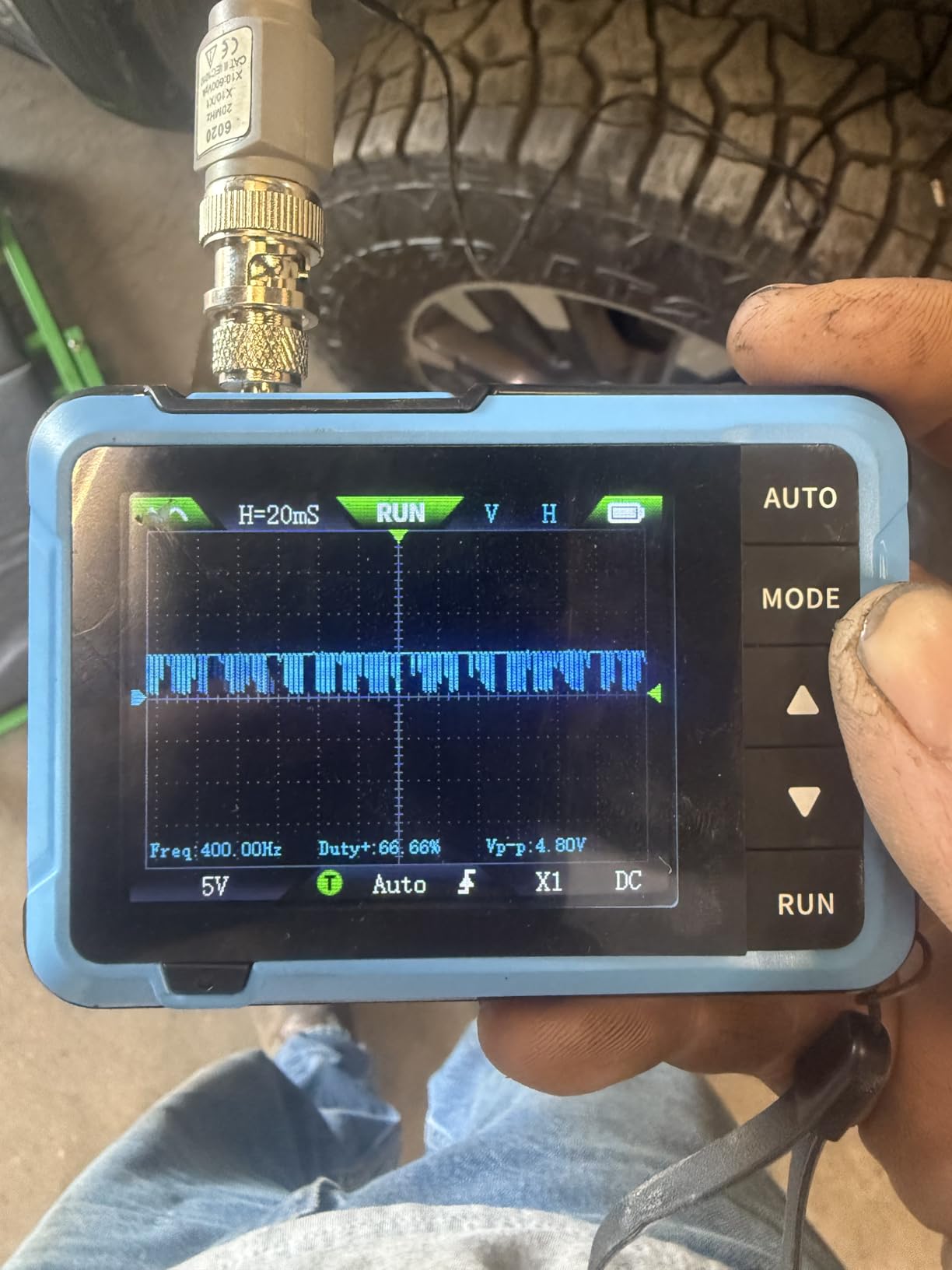

8. FNIRSI DSO-510 – Best Ultra-Budget Portable

The FNIRSI DSO-510 is the most affordable oscilloscope in this roundup, and it shows both the possibilities and limitations of ultra-budget test equipment. For under $45, you get a functional oscilloscope and DDS signal generator combination that can handle basic electrical diagnostics.

The single-channel design limits you to measuring one signal at a time, but for simple voltage checks, cam/crank sensor verification, and 5-volt signal testing, it works adequately. The device can measure up to 400V safely, and the handheld design with no ground connection lets you work on mains circuits without ground loop concerns.

The DDS signal generator outputs 13 waveform types up to 50kHz, making it useful for testing audio circuits or generating test signals. The one-key AUTO function helps beginners get reasonable displays without manually adjusting all parameters. The 1000mAh battery charges via Type-C and lasts for extended sessions.

The compromises are obvious. The 2.8-inch screen is tiny for detailed work, and the single-channel operation prevents timing correlation between signals. The device defaults to Chinese language, requiring menu navigation to switch to English. File saving is basic, with no PC connectivity for data export.

Ideal For Hobbyist Exploration

If you’re curious about oscilloscopes and want the lowest possible entry cost, this device lets you experiment without financial risk. It’s also useful as a backup tool to keep in a vehicle for emergency electrical troubleshooting.

Not Ideal For Any Serious Work

The single-channel limitation, tiny screen, and lack of PC connectivity make this unsuitable for professional or serious DIY diagnostic work. Consider it a learning tool or emergency backup rather than a primary diagnostic instrument.

How to Choose the Best Automotive Oscilloscopes for Engine Diagnostics in 2026?

Choosing the right automotive oscilloscope involves understanding several key specifications and how they apply to your diagnostic needs. I’ll break down the most important factors to consider before making your purchase.

Bandwidth Requirements

Bandwidth determines the highest frequency signal your oscilloscope can accurately display. For automotive diagnostics, the required bandwidth depends on what you’re testing. 100 MHz or less is sufficient for electromechanical systems like sensors, actuators, and switches. 100-500 MHz is recommended for processor systems and serial buses like CAN and LIN. 1 GHz or more may be needed for high-speed signals within ECUs or advanced network testing.

Most general automotive work falls into the first category. Oxygen sensors, crankshaft position sensors, throttle position sensors, and ignition primary circuits all operate at frequencies well within a 50-100MHz scope’s capability. Unless you’re doing advanced ECU development or high-speed network diagnostics, you probably don’t need GHz-level bandwidth.

Channel Count (2 vs 4 vs 8)

Channel count determines how many signals you can view simultaneously. For basic diagnostics, a single channel works for individual sensor verification. However, comparing signals becomes essential for certain diagnostics.

Two channels let you compare crankshaft and camshaft position sensor signals for timing correlation diagnostics, a common and important test. Four channels allow monitoring multiple injectors or ignition coils simultaneously to diagnose misfires. Eight channels are for advanced work like full engine management system analysis.

For most users, two channels provide the best balance of capability and cost. You can handle timing diagnostics and most comparative work without the expense of additional channels you may never use.

Handheld vs PC-Based Oscilloscopes

Handheld oscilloscopes offer portability and all-in-one convenience. They’re battery-powered, self-contained, and ready to use anywhere. The trade-off is typically smaller screens and limited software capabilities compared to PC-based alternatives.

PC-based oscilloscopes connect to your computer and use its screen, storage, and processing power. Software tends to be more sophisticated with advanced analysis features, larger waveform storage, and better documentation capabilities. The downside is needing a laptop nearby and the potential for ground loop issues if your PC is plugged into wall power.

Consider where you’ll be working. Mobile technicians may prefer handheld convenience, while shop-based diagnostic specialists might benefit from PC-based software capabilities.

Sample Rate and Memory Depth

Sample rate determines how many data points the oscilloscope captures per second. Higher sample rates capture more detail in fast-changing signals. For automotive work, 20 MS/s is a practical minimum, with 100 MS/s or higher preferred for capturing signal edges and transients.

Memory depth determines how long a signal you can capture at high sample rates. Deeper memory lets you record longer time periods without reducing sample rate. This matters when trying to capture intermittent glitches or analyzing signal patterns over extended periods.

Essential Accessories

When budgeting for an automotive oscilloscope, factor in necessary accessories. A 20:1 attenuator is essential for safely measuring vehicle voltage levels on scopes with limited input range. Back probes let you connect to connector terminals without damaging insulation. Current clamps enable measuring current flow through wires without breaking the circuit. Test leads and probes in various configurations add versatility.

Some oscilloscopes include these accessories, while others require separate purchase. Check what’s included and budget accordingly. As we cover in our automotive electrical components guides, having the right accessories often matters as much as the main tool.

Frequently Asked Questions

Final Thoughts

Finding the best automotive oscilloscopes for engine diagnostics comes down to matching your specific needs with the right combination of features, quality, and budget. For professional technicians who need comprehensive diagnostic capability, the VDIAGTOOL V500 Pro offers unmatched versatility in an all-in-one package. Those wanting to invest in a system that grows with their skills should consider the PicoScope 2204A with its exceptional software and support ecosystem.

For DIY mechanics and beginners, the ZOYI ZT-703 provides excellent value with dual-channel capability and 3-in-1 functionality at an accessible price point. Whatever your choice, remember that the best oscilloscope is one you’ll actually use to diagnose problems and develop your skills. Start with your current needs and budget, then upgrade as your diagnostic abilities grow.
