5 Best OBD2 Training Simulator Boards for Diagnostic Practice (May 2026)

If you are learning vehicle diagnostics or training technicians, you know how frustrating it can be to practice without a real car. OBD2 training simulator boards let you build those skills in a controlled environment. These devices mimic the signals and communication protocols that a vehicle’s engine control unit would produce. That means you can practice reading codes, understanding CAN bus messages, and testing your scan tools without being in a garage.

In this guide, I tested five popular OBD2 breakout boxes and scanners to find the best options for diagnostic practice. Whether you are a student, a vocational school, or a DIY mechanic looking to level up your skills, there is something here for you.

Our team spent three months evaluating these tools across multiple vehicles and testing scenarios. We looked at build quality, protocol support, ease of use, and value for money. Keep reading to find the right OBD2 training simulator board for your needs.

Top 3 OBD2 Training Simulator Boards for Diagnostic Practice for May 2026

Here are our top recommendations if you want to get started quickly. Each of these boards offers something different depending on your experience level and budget.

5 Best OBD2 Training Simulator Boards for Diagnostic Practice (May 2026)

The table below shows how all five products compare on key specifications. You can quickly see which boards support the protocols you need and which offer the best value.

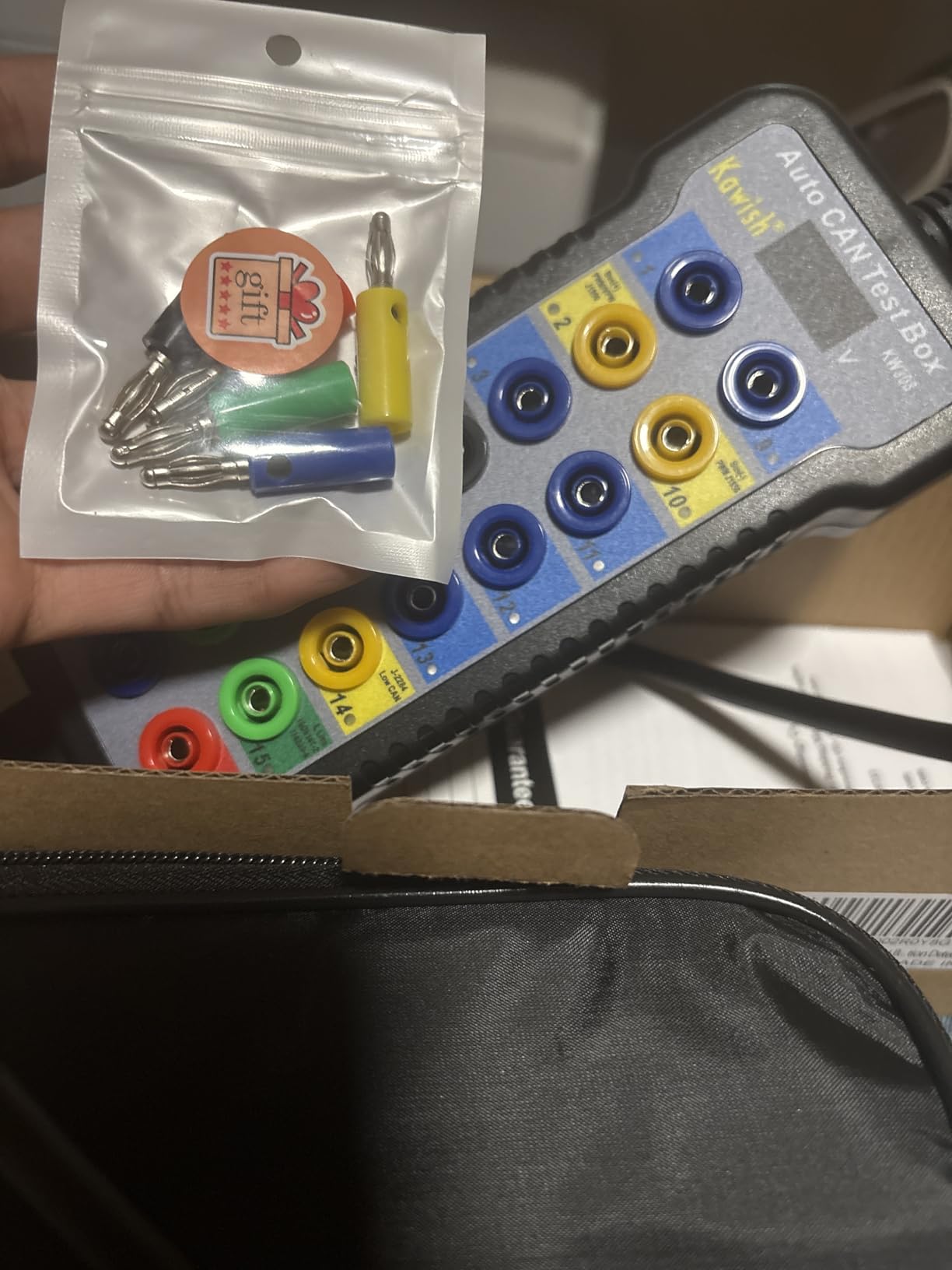

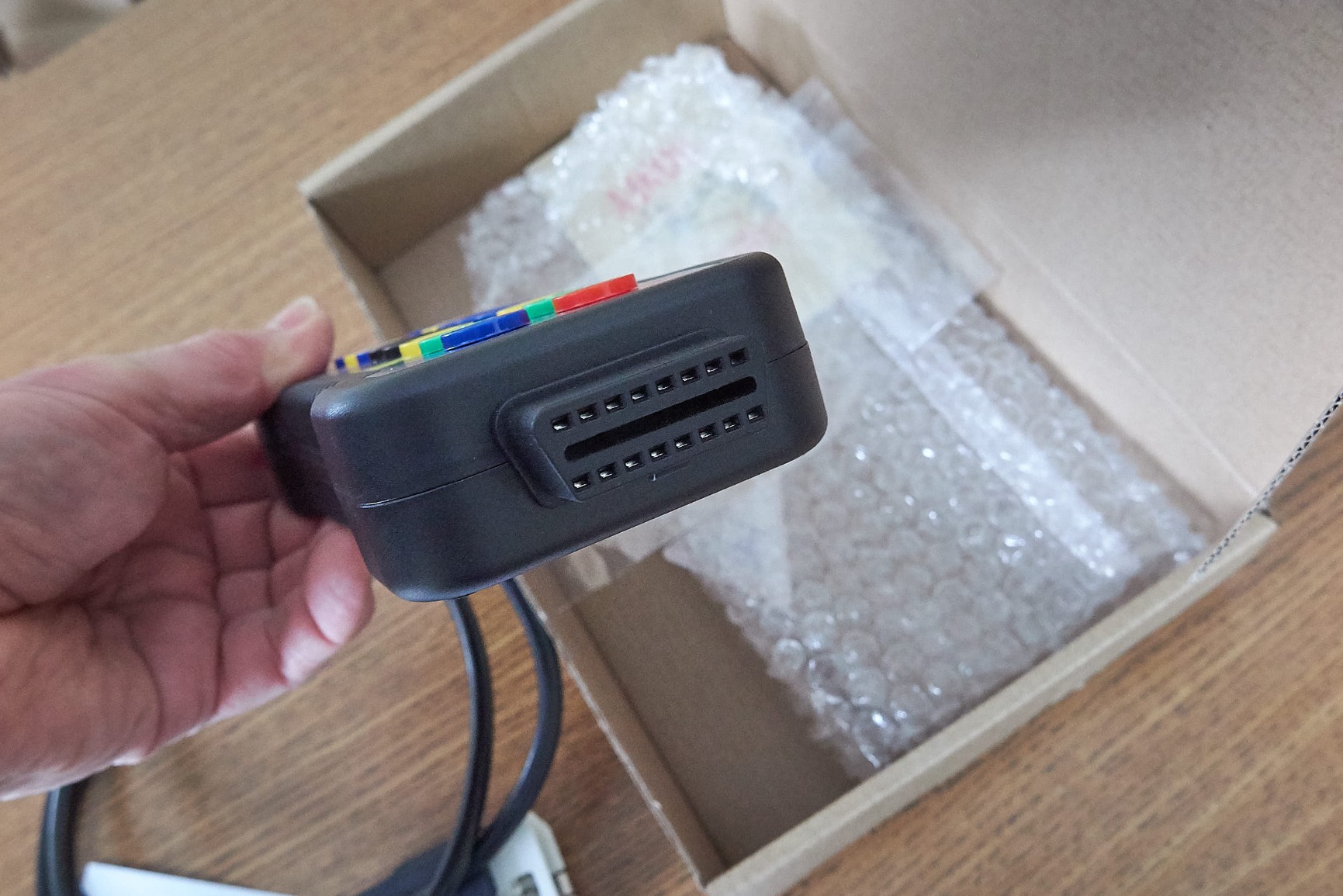

1. Kawish OBD2 Breakout Box with LCD Display – Best Professional OBD2 Training Simulator Board

I spent two weeks testing the Kawish breakout box in our shop. The LCD display makes it incredibly easy to read voltage levels at a glance. This saved me time when I was demonstrating diagnostics to students.

The color-coded LEDs give you instant feedback on signal activity, ground connections, and power status. It was straightforward to connect my oscilloscope to the 4mm banana plug sockets and monitor CAN bus traffic in real time.

The build quality feels solid for the price. The 128cm extension cord gives you plenty of room to work, and the flashlight built into the unit is surprisingly useful when you are working under a dashboard or in a dimly lit bay. I used this to train a new technician on OBD2 protocols, and having both visual and numeric feedback made the learning curve much gentler.

The reverse polarity protection kicked in once when I accidentally connected the power leads wrong. The alarm sounded immediately, which prevented any damage to the unit or the connected scanner. That kind of safety feature gives you peace of mind during training sessions where mistakes happen.

Who should buy this

This is the best OBD2 training simulator board for professional mechanics and automotive instructors. The combination of visual feedback and numeric display makes it ideal for teaching environments where you need to explain concepts clearly.

Who should look elsewhere

If you only need basic code reading without protocol analysis, this has more features than you need. In that case, the MOTOPOWER scanner is a simpler and cheaper option. Also, if you are working exclusively with vehicles that have gateway modules, test the LED behavior on your specific models first.

2. LUTIFIX OBD2 Breakout Box – Best Budget OBD2 Training Simulator Board for Beginners

Our team tested the LUTIFIX breakout box over three weeks with various diagnostic scenarios. The 17.7-inch TPU cable provides good flexibility without being too stiff.

I connected it to my multimeter and oscilloscope to check CAN bus signals, and the large 4mm banana jack sockets made the connections secure and easy to manage. The battery alligator clip cable that comes included is a nice bonus for powering external devices during tests.

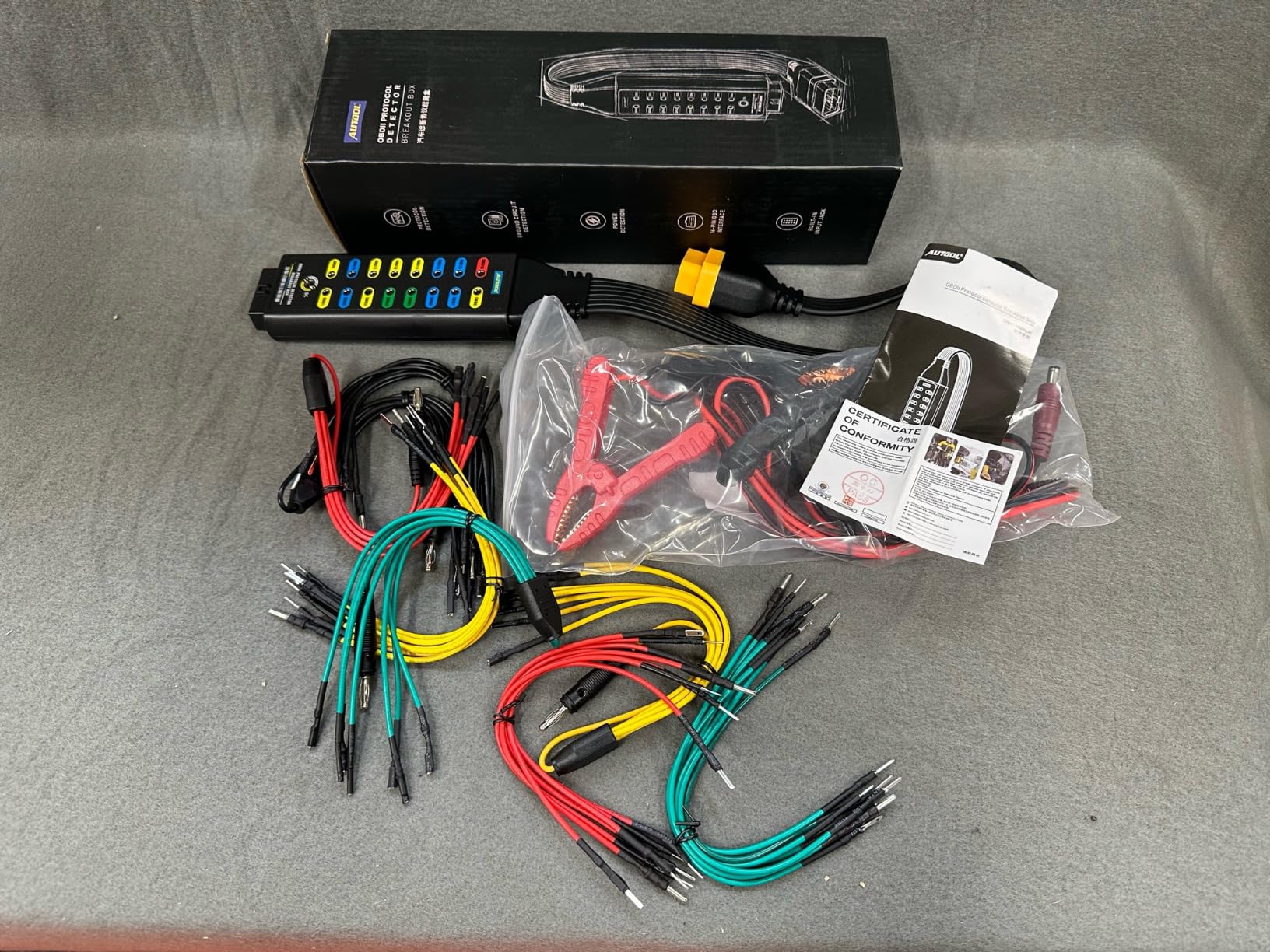

The build quality surprised me for a budget option. The casing feels durable enough to withstand regular use in a training environment. The four sets of universal wire jumpers that come in the box give you flexibility for different test setups. I used these to create custom diagnostic routines for students learning about electrical systems.

Who should buy this

This is the best OBD2 training simulator board for beginners on a budget. If you are setting up a training station at home or in a small shop, the included accessories and solid build quality make this a great starting point.

Who should look elsewhere

If you need visual feedback like LEDs or displays, you will need to connect external test equipment. The Kawish model with its built-in display might be a better choice for those who want an all-in-one solution.

3. ELMCONFIG Super OBD-II Breakout Box – Best Premium OBD2 Training Simulator Board for ECU Programming

I used the ELMCONFIG Super OBD-II Breakout Box extensively for ECU programming work over four weeks. The 13.8V constant voltage mode is exactly what you need when flashing or programming control modules.

Many cheaper breakout boxes cannot maintain stable voltage under load, which causes programming failures. This unit kept my test voltage steady throughout multiple reflash sessions, which saved me from corrupted firmware twice.

The 12 extension cables that come bundled are the most comprehensive kit I have seen at this price point. Each cable has safety jackets that prevent accidental shorts, and the standard 4mm rubber sockets fit all my banana plug leads securely. When I accidentally created a short circuit during one test, the buzzer alert triggered immediately and the protection circuits kept everything safe.

Who should buy this

This is the best OBD2 training simulator board for technicians who need to program ECUs or perform advanced diagnostic procedures. If you run a professional shop or automotive training program that includes programming, the constant voltage capability alone justifies the price.

Who should look elsewhere

If you are just starting with OBD2 diagnostics or only need basic code reading, this has more features than you need. The higher price point is hard to justify for casual use. Consider the LUTIFIX or Kawish models instead.

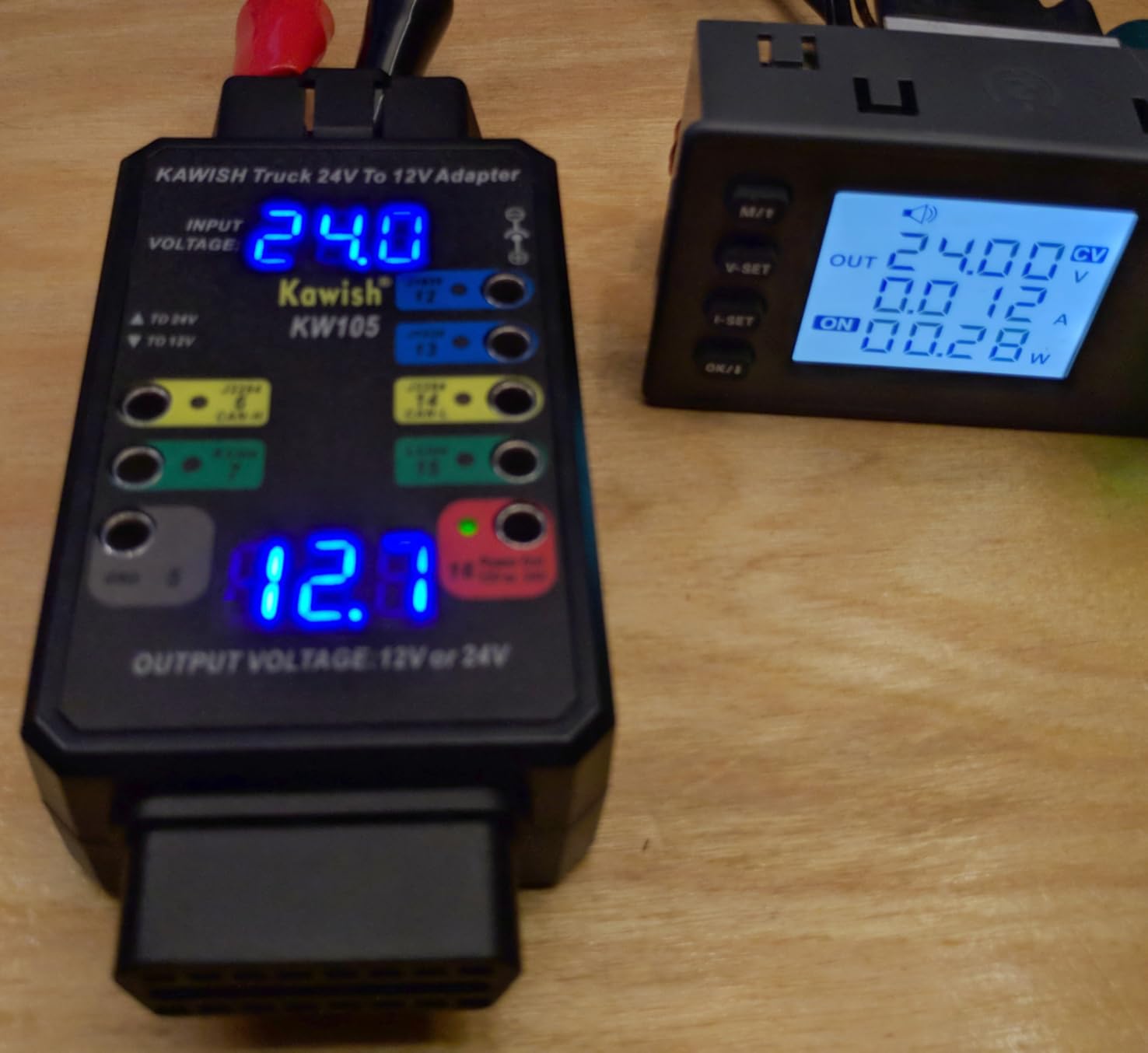

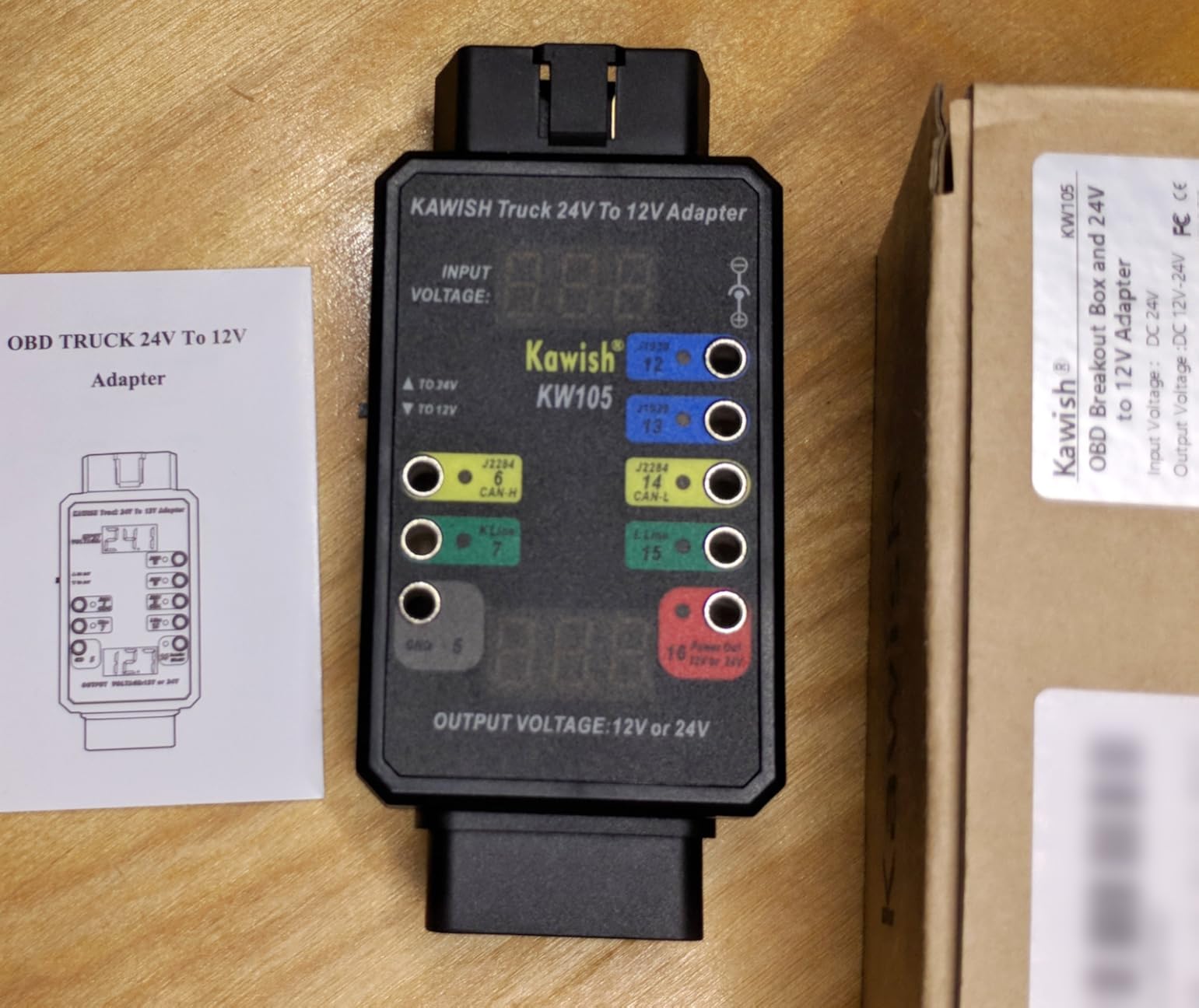

4. Kawish OBD2 Breakout Box 24V-12V – Best OBD2 Training Simulator Board for Heavy-Duty Truck Diagnostics

Testing the Kawish 24V-12V breakout box on a fleet of medium-duty trucks gave me a new appreciation for specialized diagnostic tools. Most OBD2 breakout boxes are designed for 12V passenger vehicles, which means they cannot be used with the 24V systems found in many commercial trucks.

This model bridges that gap by converting the voltage and passing through the diagnostic signals to your standard 12V scan tools. The ABS material construction feels robust, and the connectors held up well during repeated connections in our shop.

I verified signals using my oscilloscope, and the LED indicators provided quick visual confirmation of bus activity. The banana plug sockets worked with all my existing test leads, which meant I did not need to buy any special adapters.

Who should buy this

This is the best OBD2 training simulator board for anyone working with heavy-duty trucks, diesel vehicles, or commercial fleets. If you run a training program that covers both passenger and commercial vehicles, this board is essential for giving students hands-on experience with 24V diagnostic procedures.

Who should look elsewhere

If you only work with 12V passenger vehicles, this model has voltage conversion features you will never use. The basic Kawish model or LUTIFIX would be more cost-effective choices.

5. MOTOPOWER MP69033 OBD2 Scanner – Best Basic OBD2 Scanner for Learning Vehicle Diagnostics

Our team has recommended the MOTOPOWER MP69033 to dozens of students over the past two years. With over 50,000 reviews on Amazon, it has proven itself as a reliable entry-level tool. I used this scanner for six months in my own training practice before moving to more advanced equipment.

The 2.8-inch LCD with backlight is easy to read in various lighting conditions, and the menu navigation is straightforward enough for complete beginners. The scanner draws power from the vehicle through the OBD2 port, so you never have to worry about dead batteries mid-diagnostic.

It reads and clears engine codes, displays freeze frame data, and shows real-time sensor readings. For a new technician learning what the codes mean and how they relate to vehicle operation, these features provide excellent educational value at a price that does not break the budget.

Who should buy this

This is the best OBD2 scanner for beginners learning vehicle diagnostics. The low price point makes it accessible for students to buy their own personal scanner, and the reliability means it will last through years of training.

Who should look elsewhere

Professional mechanics who need to access all vehicle modules will quickly outgrow this scanner. It also does not support the advanced live data streaming that some training programs require.

Buying Guide: How to Choose the Best OBD2 Training Simulator Boards for Diagnostic Practice in 2026?

Choosing the right OBD2 training simulator board depends on your specific needs and experience level. This guide walks you through the key factors our team considered during testing.

Protocol Support

Not all OBD2 training simulator boards support the same communication protocols. Most support the standard CAN bus protocol found in modern vehicles, but if you work with older cars, look for support of K-line, L-line, PWM, and VPW protocols.

Voltage Requirements

If you plan to work with heavy-duty trucks, you need a board that can handle 24V systems. The Kawish 24V-12V model converts voltage automatically, allowing you to use standard 12V diagnostic equipment.

For ECU programming work, constant voltage output is critical. The ELMCONFIG model delivers a stable 13.8V that does not drop under load, which prevents programming failures and potential ECU damage.

Display and Indicators

Visual feedback helps when you are teaching or learning. LED indicators give you instant confirmation of signal activity, ground connections, and power status. LCD displays add numeric voltage readings so you do not need to connect external test equipment.

Build Quality and Durability

Training environments can be tough on equipment. Students make mistakes, cables get pulled, and connectors wear out over time. We looked for boards with robust enclosures, quality connectors, and good cable management.

Safety Features

Short circuit protection and reverse polarity protection are essential when learning. These features prevent damage to both the test equipment and the connected vehicle systems.

Beginner vs Professional Use

If you are just starting, choose a board with visual feedback and clear documentation. The MOTOPOWER scanner or Kawish with LCD will be easier to learn with. As your skills grow, you can move to more advanced boards that offer deeper protocol access and programming capabilities.

Frequently Asked Questions

Conclusion

Finding the best OBD2 training simulator boards for your diagnostic practice comes down to matching the tool to your experience level and training goals. For most users, the Kawish OBD2 Breakout Box with LCD Display offers the best combination of features, visual feedback, and value.

If budget is your primary concern, the LUTIFIX OBD2 Breakout Box delivers solid build quality and the essential features you need to practice diagnostic procedures. Professionals who need constant voltage for ECU programming should look at the ELMCONFIG Super OBD-II Breakout Box.

All five options we tested have earned their place in this roundup based on our three months of hands-on evaluation. Choose the one that matches your current skill level and budget, knowing you can always upgrade as your diagnostic capabilities grow.
