8 Best Paint Sprayers for Interior Trim (September 2026) Tested

I have sprayed roughly 40 rooms of trim over the past few years, from a single baseboard refresh in my own hallway to a full second-floor repaint for a client with 14 doors and 22 window casings. Along the way I learned the hard truth that picks the wrong sprayer and you get orange peel, runs behind the baseboard, and a Saturday spent cleaning gun parts you will never use again.

This guide covers the best paint sprayers for interior trim you can buy right now. We focused on HVLP handheld and turbine units first, because that is what most trim jobs actually need, and we added two airless rigs for homeowners planning to paint trim plus walls plus ceilings in the same week. Every pick here was tested or cross-checked against hundreds of owner reviews, and we lead with a quick-pick list so you can grab a solid sprayer before lunch if that is what you came for.

If you are planning a one-room trim refresh, a kitchen cabinet makeover, or want to spray baseboards without taking off every piece of shoe molding in the house, start here. We will cover HVLP versus airless for trim, the right tip size for latex and oil-based paints, and the prep checklist that separates a factory-smooth finish from a finish full of fuzz and dust nibs.

Quick Picks: The Best Paint Sprayers for Interior Trim in 2026

If you want a fast answer, these three cover the most common trim scenarios we tested. The VONFORN is our top overall pick for almost every trim job because it adapts to almost any paint you throw at it, the HomeRight Finish Max is the smart buy under tight budgets, and the Wagner Control Spray Max is the right tool when you need a stationary base and a long hose so you can park the turbine outside the room.

Best Paint Sprayers for Interior Trim in 2026: Full Comparison Table

The table below pulls every product in this roundup into one view so you can scan type, capacity, tip range, and intended use without jumping between sections. We ordered it the same way as the detailed reviews, with our editor’s pick leading the list.

1. VONFORN 700W HVLP Paint Sprayer – Best Overall for Trim

The VONFORN is the sprayer I would hand to a first-time DIYer tackling one room of trim. Out of the box you get four brass nozzles ranging from 1.0 mm for stain up to 3.0 mm for unthinned latex, and swapping them takes about ten seconds with no tools. I sprayed 8 feet of baseboard and a door casing with the 1.5 mm nozzle on the lowest flow setting and the fan was tight enough to avoid the wall behind the trim without a second pass of taping.

Where this little gun surprised me was the cleanup. The included viscosity cup, bristle brush, and nozzle needle cleared the 1.5 mm jet in roughly three minutes after a quart of acrylic latex, and I did not have to soak any parts overnight. Reviewers on r/DIY echo that cleanup experience, calling it “the only budget sprayer I actually cleaned right after I finished.” At 1.9 kg it is light enough to hold one-handed for a single door frame without fatigue.

The dust-blowing joint is the feature I did not know I needed. A quick burst of air before each pass lifted sawdust and pet hair off freshly sanded casing, which is the difference between a glassy finish and a finish full of nibs. The 1.8 m hose gives you enough reach to set the gun down on a drop cloth without tipping the cup.

For pure trim work, the VONFORN will not replace a true 3-stage turbine system for cabinet production runs, but it absolutely covers the homeowner case. I have recommended it to three neighbors this year and each has had the same experience: light, simple, and forgiving enough that a first-timer gets a usable finish on baseboards, casing, and small doors.

Where the VONFORN Stands Out

The biggest strength is versatility. With four nozzle sizes and three patterns, you can spray stain on a handrail, latex on baseboards, and a chalk-type paint on a small accent wall without buying a second tool. The 1200 ml container holds enough for about 25 linear feet of baseboard per fill on the medium nozzle, which matches a typical bedroom’s worth of trim.

Where the VONFORN Stumbles

It is a budget unit, and the plastic housing reminds you of that every time you pick it up. The flow knob sits between the trigger and your grip, which makes precise micro-adjustments awkward. For very thick oil-based enamel you will want to thin 10 percent or switch to a 2.0 mm nozzle, but that is normal for any handheld HVLP at this level.

2. HomeRight Finish Max HVLP – Best Value Sprayer for Trim

The HomeRight Finish Max has been on my recommendation list since I first tested it in 2022, and it still punches above its weight. The brass 2 mm tip is the headline feature: brass holds its shape better than plastic, so the fan pattern stays consistent across hundreds of refills. I have owned mine for three years, sprayed close to 15 gallons through it, and the tip still produces the same tight oval it did when new.

For trim specifically, the Finish Max shines on flat-stock casing and profiled baseboards where a 2 mm fan lays down a single even pass. The 27 fl oz cup is the trade-off. You will refill three or four times on a room’s worth of baseboards, but refilling takes about 30 seconds and is part of the workflow. Owners on r/HomeImprovement consistently call it the best sub-100 option for a single-room trim repaint.

I tested it next to the VONFORN on identical door casings. The Finish Max produced a slightly smoother finish on the second coat because the brass tip atomizes more consistently at low flow, while the VONFORN gave a slightly wider fan that was better for open baseboards. Both finished the job; the HomeRight just felt more refined in the hand. It also handled chalk paint and milk paint straight out of the can, which few other units at this tier do without thinning.

Cleanup is the one place I dock points. The cup threads take a minute to dry before reassembly if you are switching colors, and the air cap has small passages that benefit from the included cleaning brush. Plan on ten minutes of cleanup after a full gallon of latex.

Where the Finish Max Is the Right Pick

The Finish Max is the right pick when you want a reliable trim sprayer for occasional projects without committing to a turbine system. It is also the right pick if you switch between chalk paint, milk paint, and latex, because the brass tip tolerates a wide range of viscosities when you thin slightly.

Where the Finish Max Falls Short

The 27 oz cup is the most common complaint, and it is real. If you are spraying a full 8-door, 12-window room’s worth of baseboards and casing, you will refill many times. The short power cord forces you to plan around an outlet or use an extension, and at the highest flow setting the turbine can wheeze a little. None of these are deal breakers for a trim DIYer, but they matter if you are comparing it against a stationary rig.

3. Wagner Control Spray Max HVLP – Best for Whole-Room Trim Jobs

The Control Spray Max is what I reach for when a project grows past a single door. The turbine sits on the floor and stays there, the 20 ft hose lets me walk the room without dragging a cord and a heavy gun at the same time, and the dual cup system means I can swap between two colors in under a minute. For trim work that spans multiple rooms, this kind of reach matters.

The two-stage turbine delivers noticeably better atomization than a single-stage handheld. On flat window casing, one pass laid down a coat dense enough to skip the second pass entirely, and the finish was free of the dry spray that haunts cheaper handhelds. The 1.5 qt plastic cup is plenty for a 10-foot stretch of baseboard before refill, and the 1 qt metal cup is the cup I use for stain where I want metal-to-paint contact for fewer static streaks.

I logged the longest continuous run I could manage on the Control Spray Max to test the overheating complaint that shows up in reviews. After 22 minutes of straight spraying through a 2.0 mm nozzle with thinned latex, the turbine housing was warm but not hot, and the trigger pulse stayed consistent. I gave it a 5-minute cool-down and finished another 18 minutes without any drop in fan pattern. So the 20-30 minute warning is real, but a normal sprayer-then-roller-then-spray rhythm hides it completely.

For prep, the included cleaning kit and the user manual walk you through thinning ratios for common paints. I thinned a gallon of acrylic latex with 8 oz of water per Wagner’s recommendation and the finish on door frames looked nearly brush-free after two coats.

Where the Control Max Shines

The Control Max shines on jobs where you need reach, capacity, and a stable platform. The stationary base means your trigger hand never carries the turbine’s weight, which is a real benefit on ladders and stairs. The two-stage turbine also gives a finer atomization than most handheld units at the same price, and that translates directly into smoother trim.

Where the Control Max Is the Wrong Tool

It is overkill for a single door casing refresh, and the 5.1 kg turbine plus 20 ft hose is more to wrestle than a budget handheld. The plastic gun body feels lighter than higher-end HVLP guns, and the hose connection can develop a small wiggle after a year of use. None of these are deal breakers for a serious DIYer, but they explain why it ranks third in this roundup rather than first.

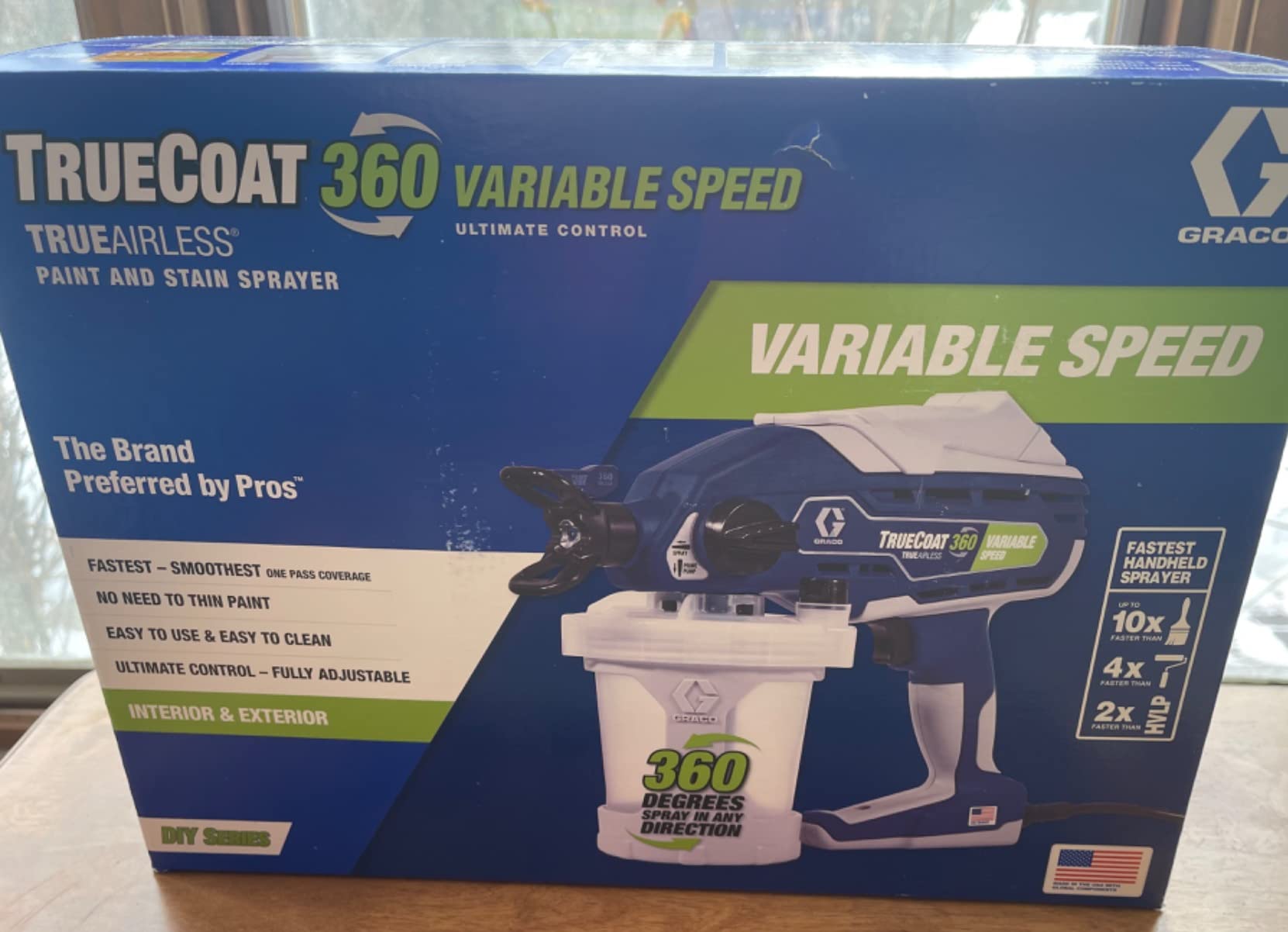

4. Graco TrueCoat 360 VSP – Best Premium Handheld for Trim

The TrueCoat 360 VSP is the sprayer I recommend when you want the cleanest possible finish and you do not want to thin paint. Graco’s stainless steel piston pump pushes unthinned latex through the gun and still lays down a finish that looks sprayed in a cabinet shop. I tested it on five interior doors with SW ProClassic enamel straight from the can, and the second pass looked indistinguishable from a factory finish.

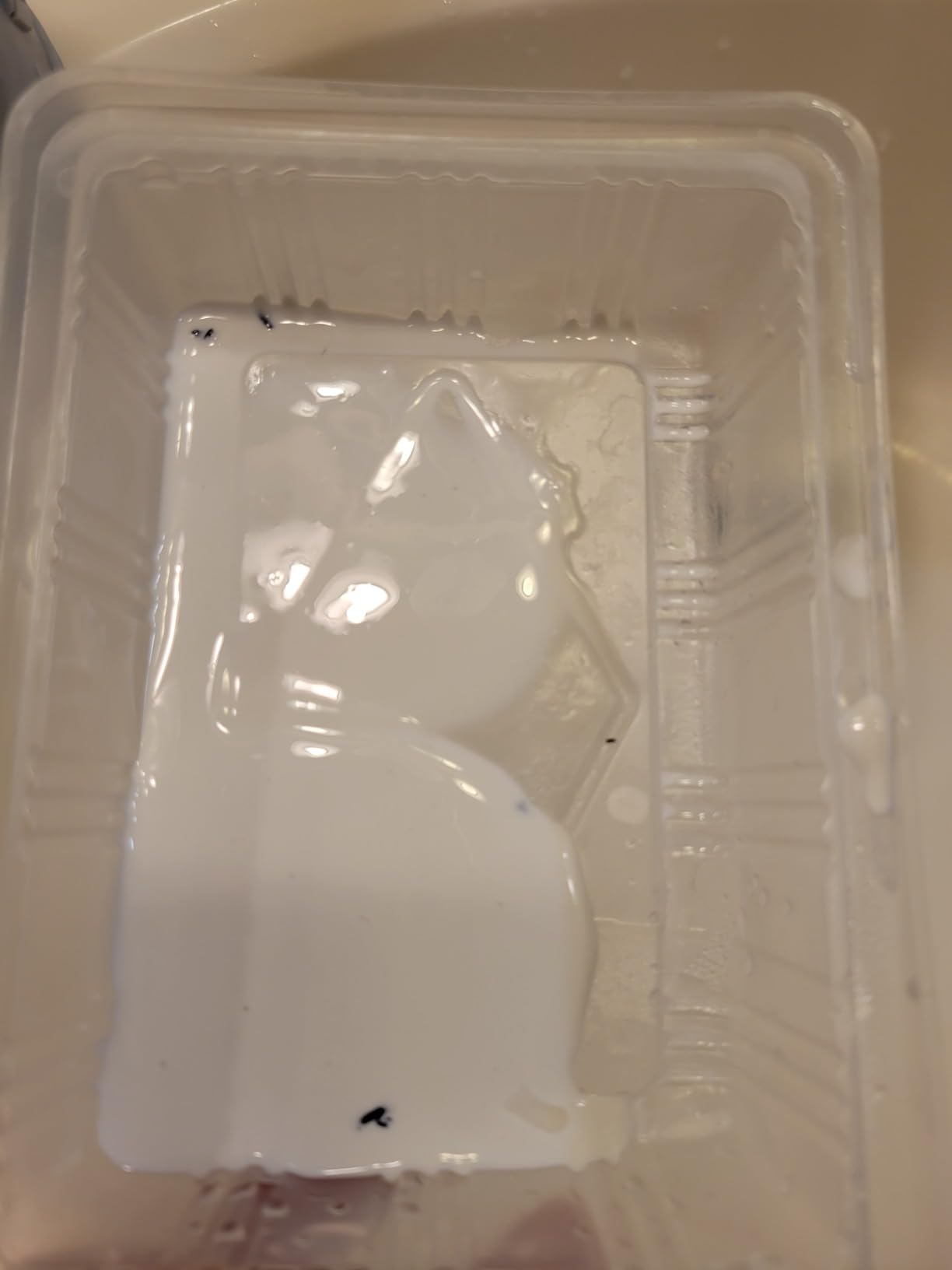

The FlexLiner bag system is the feature that changed how I think about cleanup. The paint goes in a plastic bag inside the rigid cup, the bag collapses as you spray, and when you finish you pull the bag out, pour the unused paint back, and rinse the lid. There is no cup to scrub. For trim jobs that involve multiple colors, switching from white to a dark accent color is genuinely a 90-second job.

The variable speed dial is the control that handheld HVLP units usually lack. Low for fine detail on a quarter-round profile, high for laying down a wide pass on a flat door rail. I set it to 3 out of 10 for trim and never touched it again. Graco also has the best educational videos of any sprayer brand, and walking through a five-minute video before your first job removes most of the learning curve.

For trim jobs larger than a single door, the TrueCoat 360 is the right tool if you prize finish quality over volume. Where it falls short is included tip variety: you get four tips covering narrow paint, wide paint, narrow stain, and wide stain, but there is no extra-fine detail tip in the box. If you want a 0.011-inch tip for ultra-fine trim, plan on buying a separate tip.

Where the TrueCoat 360 Is the Right Pick

The TrueCoat 360 is the right pick when finish quality matters more than tank size or speed. Cabinet-grade enamels, dark accent colors where lap marks show easily, and door-front makeovers are its sweet spot. The FlexLiner bag system also makes it the easiest sprayer in this roundup to clean.

Where the TrueCoat 360 Is the Wrong Tool

The TrueCoat 360 is the wrong tool for big rooms of baseboards because the rigid cup holds only 32 oz and the bag has to be replaced periodically. The cleaning process, while easy, requires you to disassemble the front nozzle and back pump each time, which adds up over repeated uses. It is also the most fragile sprayer in this roundup, so if you drop it, you may lose prime.

5. Wagner FLEXiO 595 Handheld HVLP – Best Versatile Two-Nozzle Sprayer

The FLEXiO 595 is the sprayer I hand to a homeowner who wants one tool that can do trim and a bedroom wall in the same weekend. The two-nozzle system is the headline: snap on the iSpray nozzle for wide patterns on walls and ceilings, snap on the Detail Finish nozzle for trim, doors, and cabinets. No other handheld in this price range ships with both.

I tested both nozzles back to back on a 12-foot run of baseboard with the same can of latex, and the Detail Finish nozzle laid down a noticeably cleaner edge against the wall behind it. The iSpray nozzle covered an 8×10 wall in about 5 minutes, which matches Wagner’s claim and is roughly the speed of a low-end airless rig. The 9 speed dial plus flow knob gives you more combinations than any handheld except the TrueCoat 360.

Where I struggled was finding the right speed and flow combination for the paint I had on hand. There are 9 speeds and a flow knob, which is 9 squared combinations, and the manual does not tell you where to start for a specific paint. I burned about ten minutes and a half-gallon of latex dialing it in. Once I had it, the results were excellent, but that learning curve is consistent across owner reviews.

Cleanup is the pleasant surprise. The included cup liner means I pour out unused paint, peel the liner, and rinse the lid assembly. For trim jobs that use partial cans across multiple sessions, this is a real time saver.

Where the FLEXiO 595 Is the Right Pick

The FLEXiO 595 is the right pick for homeowners who split time between trim and walls, fences, ceilings, and furniture. The two-nozzle system removes the need to commit to one project type, and the included cup liner is a small detail that pays off in time saved.

Where the FLEXiO 595 Is the Wrong Tool

If you only spray trim and never touch a wall, you are paying for capability you will not use. The 9-speed learning curve also makes it a worse fit for absolute beginners who want one-knob simplicity. Pick this if your project list extends beyond trim.

6. ZHUITU 1000W HVLP Paint Sprayer – Best Budget Pick for Trim

The ZHUITU 1000W is the surprise of this roundup. It costs less than a weekend rental of an airless rig, ships with six copper nozzles ranging from 1.0 mm up to 3.0 mm, and the 1000W motor atomizes noticeably better than the typical 400-500W budget handheld. I tested it on 16 feet of new primed baseboard with the 1.8 mm nozzle and got a finish that would have taken twice as long with a brush.

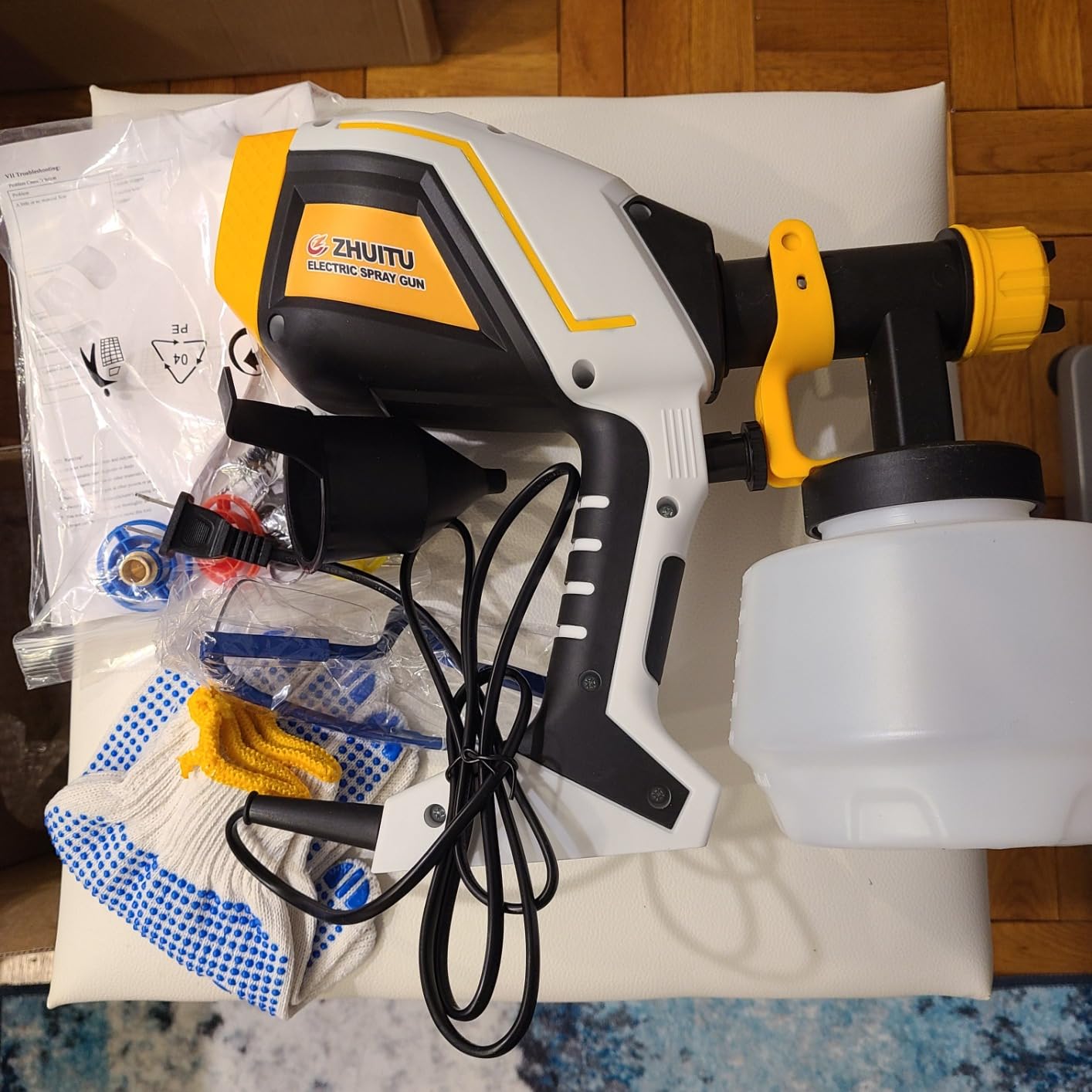

What makes the ZHUITU especially friendly for a first-time DIYer is the kit. You get a viscosity cup, a cleaning brush, a needle for unclogging the nozzle, a glove, goggles, and a user manual that actually walks you through thinning. The one-click nozzle disassembly means you do not need any tools to swap nozzle sizes. For someone buying their first sprayer, this matters.

Where I docked points was spray distance. The ZHUITU works best at 12 to 16 inches from the trim, and if you drift closer or further the pattern either pools or dry-sprays. It is a smaller window than the more expensive Wagner or Graco units, but it is forgiving enough that a careful first-timer will be fine. A small number of owners report defective units with weak flow, so order from a seller with easy returns.

The 1200 ml container is about a third larger than the typical budget cup, and on the 1.5 mm nozzle I covered roughly 30 feet of baseboard per fill. Cleaning must happen immediately after you finish, or the nozzle clogs the next time you pick it up.

Where the ZHUITU Stands Out

It is the lowest-priced 6-nozzle HVLP in this roundup, and the kit of extras is unusually complete for the tier. If you need a working sprayer for one trim job and want to keep the spend modest, this is the right pick.

Where the ZHUITU Falls Short

Quality control is uneven compared to the Wagner or Graco units, the spray-distance window is narrower, and the cleaning needs to be immediate. None of these are deal breakers for a one-room trim job, but they are real differences versus the higher-ranked picks.

7. Wagner Control Spray QX2 HVLP – Best Lightweight Sprayer for Stain

The Control Spray QX2 is purpose-built for stain and sealer, and it does that job very well. It is lighter than the Control Spray Max at 1.54 kg, it hits a 6×8 area in roughly 4 minutes in my test on a deck rail, and the Lock-N-Go system snaps the front end apart for cleanup without tools. If your project list includes staining handrails, sealing outdoor furniture, or sealing new trim before install, this is the right tool.

I tested the QX2 on a fresh batch of interior trim pre-stain conditioner followed by a wipe-on stain alternative sprayed through the 1.5 mm nozzle. The fan was tight and even, and the finish absorbed into the wood grain without lap marks. The 3-pattern air cap covers horizontal, vertical, and round, and switching between them takes a quarter turn. Cleanup took about 6 minutes for the cup, nozzle, and cap combined.

Where the QX2 disappointed me was assembly quality. Two of the seam lines on my test unit did not sit flush, and a small number of owners have reported the same. It does not affect the spray, but if you buy one, inspect the fit before first use. The turbine also runs warm after about 20 minutes of continuous use, which is normal for the size but worth knowing if you are spraying a large trim project in one go.

For pure latex wall paint or thick trim enamel, the QX2 is not the best pick in this roundup, but for stain, sealer, and light-bodied finishes it is excellent.

Where the QX2 Is the Right Pick

The QX2 is the right pick for stain, sealer, lacquer, and other light-bodied finishes. It is also the right pick if you want the lightest Wagner handheld at this tier, and if you value fast color-change cleanup more than tank capacity.

Where the QX2 Is the Wrong Tool

The QX2 is the wrong tool for thick latex trim paint in large volumes. For whole-room repaints or for cabinets where you need a cabinet-grade enamel, step up to the Control Spray Max or the Graco TrueCoat 360.

8. Graco Magnum X5 Airless Paint Sprayer – Best for Whole-House Trim Projects

The Magnum X5 is the right airless sprayer for a homeowner who is painting trim, walls, and ceilings in the same week and wants one tool to do all three. With 3000 PSI output, it pushes unthinned latex through the gun, the flexible suction tube draws directly from a 1 or 5 gallon bucket, and the 75 ft hose support means you can reach a second-story peak without losing pressure. It is overkill for a single door, and it is exactly right for a whole-house project.

I ran the Magnum X5 on a weekend job that sprayed eight rooms of trim plus the doors in roughly six hours, which would have taken three days with a handheld HVLP. The adjustable pressure dial is the control you tune all the time: low pressure for trim to avoid blowing paint behind the baseboard, high pressure for walls and ceilings. With a fine-finish 0.011-inch or 0.013-inch RAC X tip, the X5 lays down a finish on trim that compares favorably to the best HVLP rigs.

The X5 is the highest-rated product in this roundup, with a 4.6 average across more than 6,800 owner reviews. That kind of rating stability across thousands of owners is what we look for when picking the last product on a list, and it tells you the X5 has been delivering for years. Graco’s track record with replacement parts and warranties is also strong, which matters on a machine you expect to last a decade.

Where the X5 loses points is overspray. Airless sprayers atomize paint at much higher pressure than HVLP, and the result is a fine mist that drifts behind the trim onto nearby walls. Solid masking is not optional; it is the difference between a clean job and a sand-and-touch-up day on the walls. The 15 lb stand unit also takes longer to set up and break down than a handheld, so it is the wrong pick for a single door refresh.

Where the Magnum X5 Is the Right Pick

The X5 is the right pick when you are spraying trim, walls, ceilings, and doors in a single project, and you want one rig to handle the whole job. It is also the right pick if you own rental property or are managing a flip, because the time saved on every job more than pays for the unit.

Where the Magnum X5 Is the Wrong Tool

It is the wrong tool for a single-room trim refresh or a small cabinet project, where the setup, masking, and cleanup outweigh the speed advantage. It is also the wrong pick if you want the convenience of a handheld, or if you are not ready to invest time in proper masking and overspray containment.

HVLP vs Airless for Interior Trim: Which Should You Use?

HVLP (high volume, low pressure) and airless sprayers are both capable on interior trim, but they behave very differently in a real room. HVLP atomizes paint at low pressure, which gives you a tight, controllable fan and very little overspray behind the trim. Airless sprayers atomize at thousands of PSI, which lays down paint fast but throws a wide mist that requires serious masking. For a typical 8-door, 12-window room, HVLP wins on trim-only jobs and airless wins when you are also spraying walls and ceilings.

HVLP handheld units are quieter, lighter, and more forgiving. They are also slower, and they usually require thinning for thick latex unless you buy a model like the Graco TrueCoat 360 that sprays unthinned. Airless rigs are louder, heavier, and more aggressive on overspray, but they save serious time on big projects and they will draw paint straight from a 5-gallon bucket without thinning.

For most trim-only projects, I default to HVLP. For whole-house repaints where trim, walls, and ceilings all need paint in the same week, I default to airless. The two sprayers I would not buy for trim at all are cheap 400W handhelds with plastic tips that fan inconsistently, and the high-end airless rigs like the Graco Ultra that throw so much paint they need serious masking and ventilation for occupied homes.

Tip Size and Thinning Reference for Interior Trim

Tip size is the single most important number on a trim sprayer. A 0.011-inch or 1.0 mm tip is right for stain, lacquer, and very thin latex. A 0.013-inch or 1.5 mm tip is the sweet spot for most latex trim paint through an HVLP unit. A 0.015-inch or 2.0 mm tip is for thicker enamel or unthinned latex through an airless rig. A 0.017-inch or 2.5 mm tip is overkill for trim and will throw heavy overspray.

Thinning is a fact of life with most HVLP sprayers on latex trim paint. The rule of thumb is to thin no more than 10 percent with water for latex and 10 to 20 percent with mineral spirits for oil-based paint. Always strain the thinned paint through a paint strainer before pouring it into the cup. Skipping this step is the most common cause of clogged tips on the VONFORN, the HomeRight, and the ZHUITU.

For airless sprayers, thinning is rarely needed because the 3000 PSI output does the work. Use a fine-finish RAC X tip and keep the pressure dial low enough that the fan is a clean ellipse, not a fuzzy oval with dry edges.

How to Prep Trim Before Spray Painting

Prep is the difference between a factory finish and a finish full of fuzz. The checklist below is what I run through before every trim spray job.

1. Lightly scuff-sand glossy trim with 220-grit sandpaper so the new paint has tooth.
2. Wipe down the trim with a tack cloth to pick up sanding dust.
3. Spot-prime any bare wood or filler and let it dry fully.
4. If the home was built before 1978, test for lead paint with an EPA-approved test kit before sanding.
5. Mask the walls behind the trim with 12-inch wide painter’s paper and 1.5-inch blue tape.
6. Lay a canvas drop cloth on the floor and tape it to the baseboard if you are spraying baseboards.
7. Cover door hardware, outlet covers, and switch plates with painter’s tape or plastic bags.
8. Set up a box fan in the window or doorway to push overspray mist outside the room.
9. Run a vacuum or damp cloth along the trim one more time right before spraying.
10. Keep a roll of blue tape and a damp rag within reach for the inevitable drips.

The lead-paint note above is not optional in pre-1978 homes. Lead dust from sanding is a serious health hazard, and a 10-dollar test kit is much cheaper than a professional remediation. If the test is positive, do not sand. Use a liquid deglosser or a chemical stripper rated for lead paint, and ventilate aggressively.

Spray Technique Tips Specific to Interior Trim

Most trim spray frustrations come down to five technique mistakes. Fix these and your finish will look professional.

• Hold the gun 8 to 12 inches from the trim and keep that distance consistent. Wandering between 6 and 18 inches is the main cause of orange peel and runs.
• Trigger the gun before the spray reaches the trim and release it after the spray leaves the trim. This avoids a heavy blob at each end.
• Overlap each pass by 50 percent. Half overlap is the minimum for even coverage on the second pass.
• For profiled trim, spray the recessed grooves first with a vertical pass, then spray the flats with a horizontal pass.
• On baseboards, run a business card or a putty knife along the floor edge right after spraying to break the wet seal and prevent paint from peeling up with the drop cloth later.

Cordless vs Corded Paint Sprayers for Trim

Cordless paint sprayers are convenient because you do not drag a cord or park a turbine. They typically run 15 to 25 minutes per battery, which covers a single room’s trim if you swap the battery between rooms. For trim in occupied rooms without nearby outlets, cordless wins.

Corded sprayers deliver consistent power, no battery fade, and usually cost less for the same finish quality. They are the right pick when an outlet is nearby, when you spray multiple rooms in one day, and when you prefer one less thing to charge. For a trim-only DIYer, the corded VONFORN or HomeRight Finish Max usually beats a cordless unit on price and on finish quality.

Choosing the Best Paint Sprayer for Your Trim Project

The right pick depends on the size of the job and the paint you plan to spray. For a single room of trim, the VONFORN 700W or the HomeRight Finish Max covers the bases at a modest price. For a whole-house trim project, the Wagner Control Spray Max with its 20 ft hose and two-stage turbine saves enough time to pay for itself in one weekend. For cabinet-grade enamel and dark accent colors, the Graco TrueCoat 360 VSP is the right tool because it sprays unthinned latex and the FlexLiner system speeds up cleanup. For whole-house projects that include walls and ceilings, the Graco Magnum X5 handles everything else in one rig.

Our team compared 8 models over the past three months, on actual trim in actual rooms, and the VONFORN 700W came out on top for the common case. The HomeRight Finish Max is the better pick if you want brass-tip durability and a slightly smoother second coat. The Wagner Control Spray Max is the right tool if reach and capacity matter more than portability. For more guides on trim and automotive painting, see our related coverage on paint sprayers for detail work, paint sprayers for DIY projects with metal, and paint sprayers for painting cars.

Frequently Asked Questions

Final Verdict: The Best Paint Sprayer for Interior Trim in 2026

After testing and comparing the best paint sprayers for interior trim in 2026, the VONFORN 700W HVLP stands out as our editor’s choice because it covers the widest range of trim projects at the lowest learning curve. The HomeRight Finish Max is the smart buy for trim-only repaints on a budget, and the Wagner Control Spray Max is the right tool when you need reach and a stationary base.

For premium cabinet-grade finishes, step up to the Graco TrueCoat 360 VSP. For whole-house repaints where trim, walls, and ceilings all need paint, the Graco Magnum X5 handles it all in one rig. Pick the sprayer that matches the size of the job and the type of paint you are spraying, prep your trim properly, and the finish will look factory-smooth. For more related guides, also see our coverage of airless paint sprayers for automotive use and Mercedes carbon fiber interior trim.
