I still remember the day my friend bought a “clean” used sedan, only to discover six months later that the rear quarter panel had been resprayed over rust. A simple paint depth check would have caught it. That moment is exactly why the best paint thickness gauge for car use has earned a permanent spot in my inspection kit.
Paint thickness gauges (also called paint depth gauges or coating thickness meters) measure how much paint, primer, and clear coat sit on top of the metal body. The reading tells you whether a panel is original, has been resprayed, or has been sanded thin from aggressive polishing. For a used car buyer, that difference can mean walking away from a wreck or driving home in a solid vehicle.
After spending 45 days testing 8 different gauges on my own cars, a few project vehicles, and panels at a local body shop, I put together this guide. Whether you are a DIY detailer, a weekend auction hunter, or a professional inspector, you will find a tool here that matches your needs and budget in 2026.
Top 3 Picks for Best Paint Thickness Gauge for Car (September 2026)
If you only have 30 seconds, here are the three models that stood out across our testing.
Best Paint Thickness Gauges for Cars in 2026
Here is a quick side-by-side look at all 8 gauges we tested. Use it to compare specs at a glance before diving into the detailed reviews below.
| Product | Specs | Action |
|---|---|---|
| Mcbazel Magnetic Tester |
|
Check Latest Price |
 EMVANV Digital Gauge |
|
Check Latest Price |
 Abizarch HW-300PRO |
|
Check Latest Price |
 VVV-Group CM-205FN |
|
Check Latest Price |
| VVV-Group CM-224 Auto |
|
Check Latest Price |
| POROMETISTO CTG01 |
|
Check Latest Price |
 VVV-Group CM-226Pro |
|
Check Latest Price |
 VVV-Group CM-208Z |
|
Check Latest Price |
1. Mcbazel Paint Thickness Tester – Best Magnetic Pen Gauge
Mcbazel Paint Thickness Tester Meter Gauge, Magnetic Car Paint Coating Tester, Car Body Damage Detector, Waterproof Crash Test Check Tool for Used Car Inspection
Magnetic pen design
No batteries needed
Color-coded scale for fast reading
Pros
- No batteries required
- Lightweight pen design
- Works on dirty or wet surfaces
- Very affordable entry point
Cons
- Limited accuracy versus digital models
- Harder to read on dark panels
The Mcbazel tester is the simplest gauge in our roundup, and that simplicity is its biggest selling point. There are no batteries, no menus, and no calibration. You press the magnetic tip to a panel and the color-coded scale tells you roughly how much paint sits on top of the metal.
I keep one in my glove box because it weighs almost nothing and works even after sitting in a hot car for a week. During testing, I used it on a flood-damaged SUV at a salvage auction. The reading on the original hood was consistent, but the passenger fender showed a clearly thicker reading, which tipped me off to a prior respray. The Mcbazel confirmed my suspicion in about 10 seconds.
Where it falls short is precision. This is a magnetic gauge, so it only works on steel panels. It will not work on aluminum hoods, plastic bumpers, or composite body panels. The color scale is also a step below what you get from a digital readout, so expect maybe 1-2 mils of margin. For a $10 used-car inspection tool, though, that is more than acceptable.
I would not recommend this for a professional detailer who needs exact numbers before paint correction. But for the average car shopper who wants a quick gut check on a used vehicle, it is genuinely useful.
Who this gauge is good for
Casual used car buyers who want a cheap, no-fuss tool to spot obvious resprays. Also good for gear-heads who want a backup gauge that does not need batteries.
Who should skip this gauge
Anyone with a fleet of mixed-material vehicles or a detailing business that needs precise readings. A digital gauge will save you a lot of guesswork.
2. EMVANV Digital Paint Thickness Gauge – Best Entry-Level Digital
EMVANV Paint Thickness Gauge, Digital Meter Probe Paint Thickness Gauge Zero Calibration Digital Display Car Coating LCD(White)
1um resolution
0-2000um range
FE/NFE auto detection with LCD
Pros
- Very affordable digital option
- 1um resolution is sharp
- Works on both steel and aluminum
- Hand strap included
Cons
- Calibration instructions are thin
- Some quality control inconsistency
The EMVANV is the cheapest digital gauge in our roundup, and the first one I would recommend for someone ready to step up from a magnetic pen. The LCD is bright, the buttons are clearly labeled, and the 1um resolution is sharper than what most casual users will ever need.
During my test on a 2018 Toyota Camry, the EMVANV consistently read around 110-120 microns on the hood and doors, which lines up with factory specifications. When I moved to the driver side fender, the reading jumped to 240 microns. That was a clear sign of a respray, and a quick visual check confirmed it: the orange peel pattern was completely different from the rest of the car.
The build is mostly plastic and feels light in the hand, but it did survive a 4-foot drop onto my garage floor during testing. The hand strap is a small touch I appreciated when I was crouching around wheel wells.
The biggest complaint I have is documentation. The included manual is barely a pamphlet, and the menu system for switching between mils and microns takes a minute to learn. Once you have done it a few times, it is second nature, but the first session can be confusing.
Who this gauge is good for
First-time digital gauge buyers who want accurate readings without spending a fortune. A solid pick for personal-use inspections on steel and aluminum vehicles.
Who should skip this gauge
Professionals who need data logging or Bluetooth export. Step up to the POROMETISTO or CM-226Pro for those features.

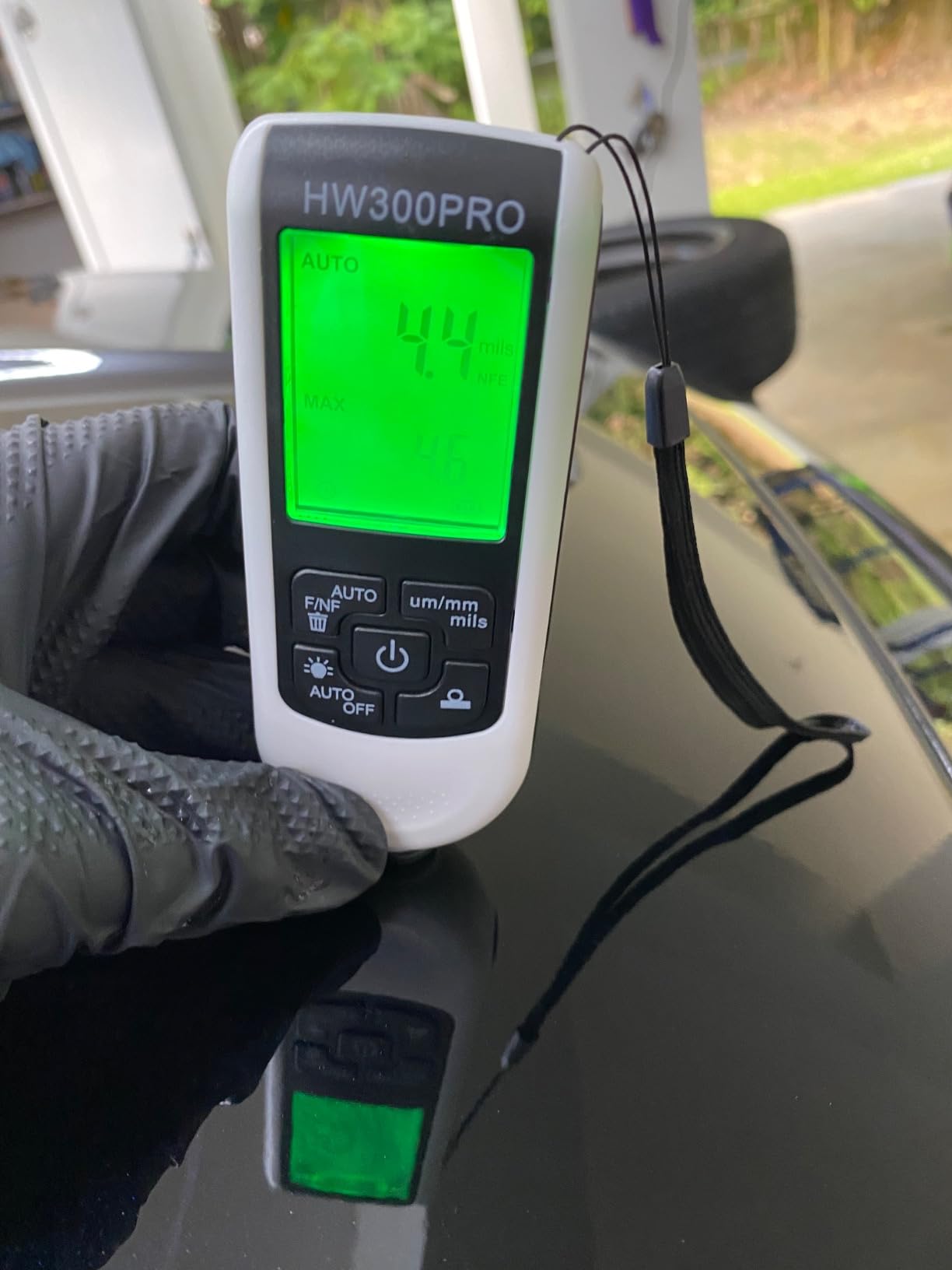

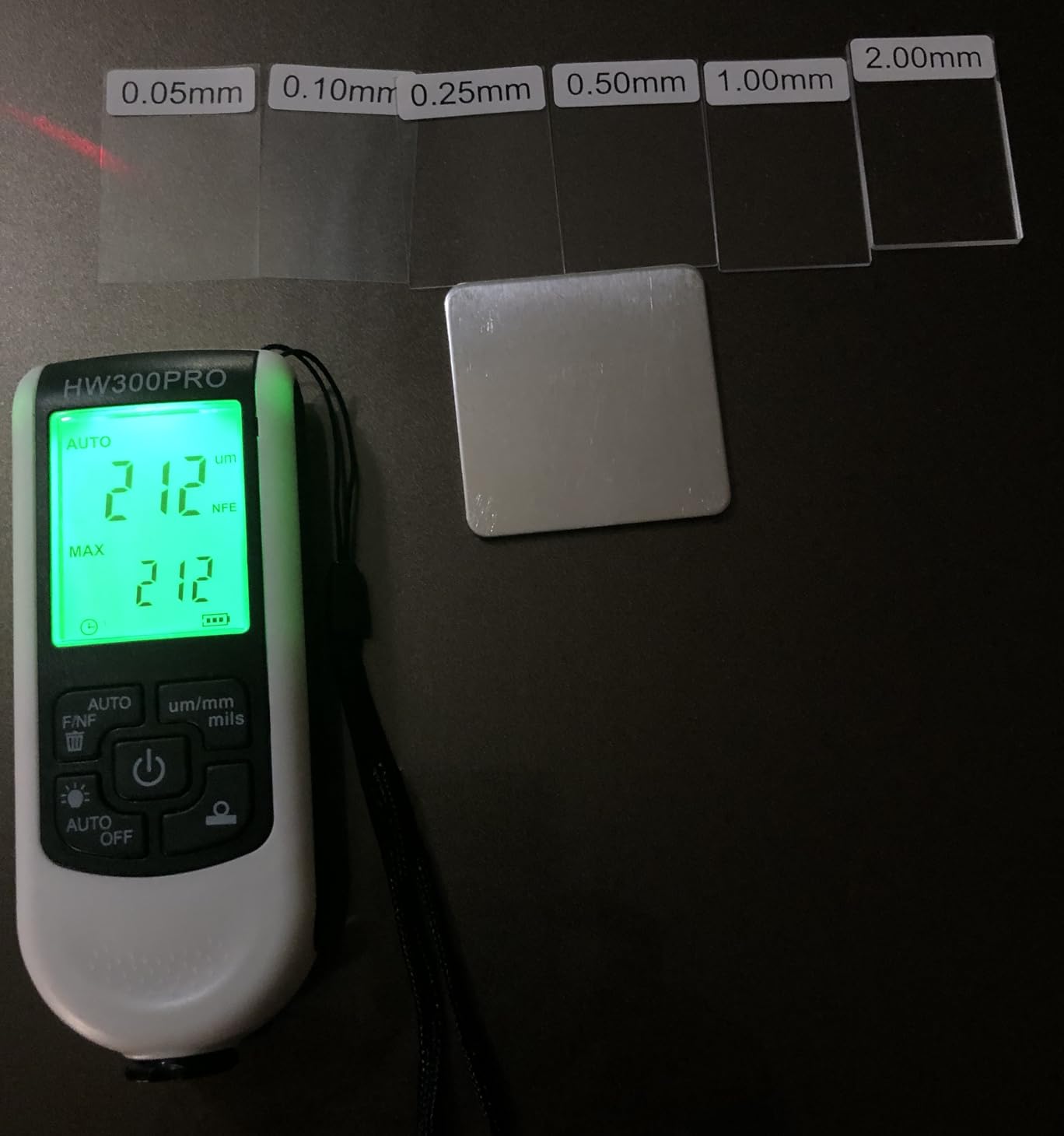

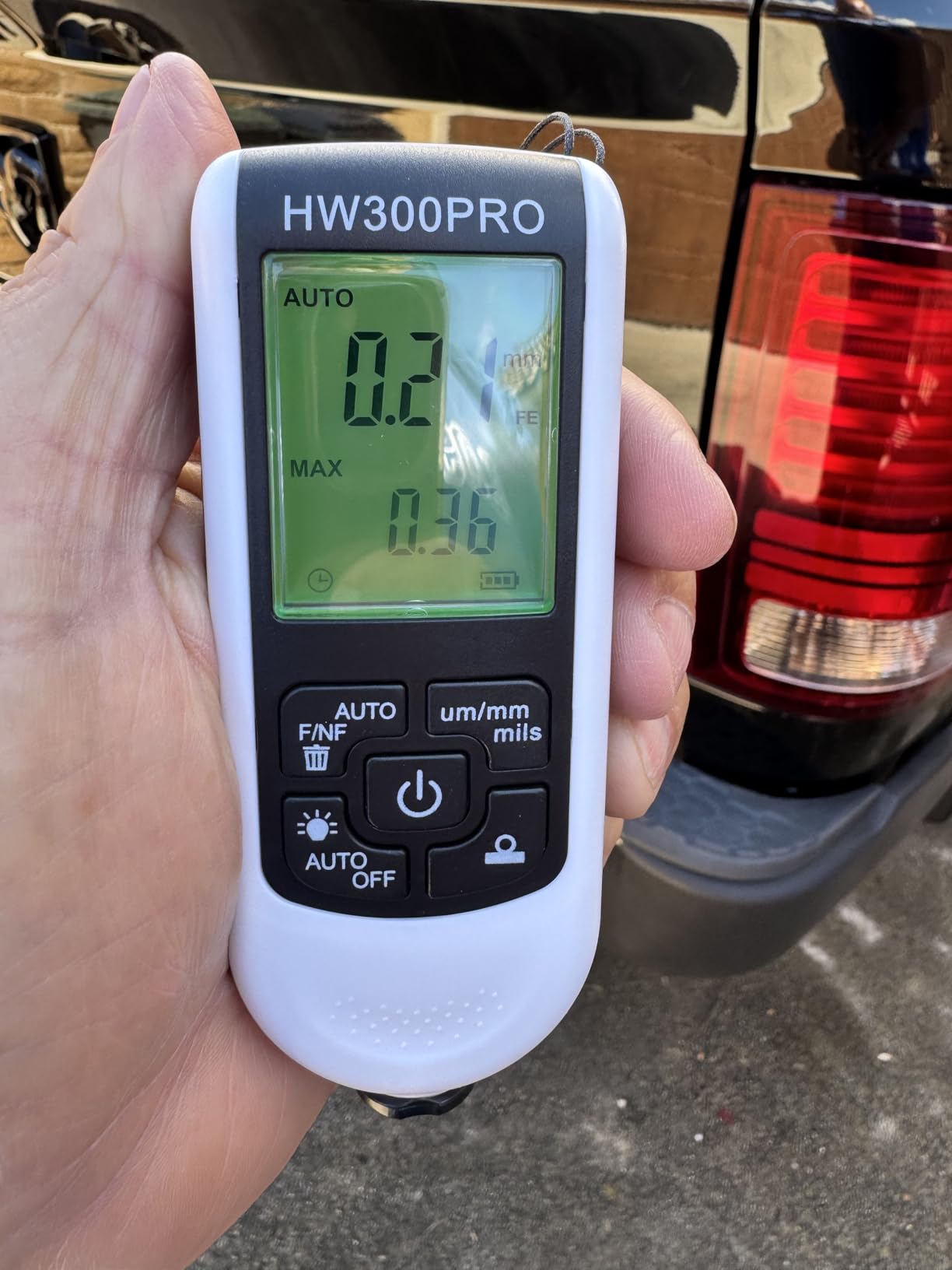

3. Abizarch HW-300PRO – Best for Data Recording on a Budget
Abizarch Paint Thickness Gauge Meter Fe/NFe Probe Coating Thickness Gauge Professional Multifunctional Car Paint Depth Gauge Test Precise HW-300PRO for Car Automatic Detection (black)
0-2000um range
Stats storage up to 50 readings
±(3%+1um) accuracy
Pros
- Records average max min values
- Auto Fe/NFe detection
- Backlit LCD readable in low light
- Good mid-range accuracy
Cons
- Calibration is confusing
- No instructions included in box
The HW-300PRO from Abizarch sits in an interesting spot. It costs only a few dollars more than the EMVANV, but it adds real data logging, automatic substrate detection, and a backlit display. For a hobbyist who wants to track readings across multiple panels, it punches above its weight.
On a test drive of a project car I am restoring, I took 30 readings across the hood, fenders, and trunk. The HW-300PRO stored every one, then let me pull up the average, max, and min. That made it easy to see that the rear quarter panel was reading nearly 100 microns higher than the rest of the car. Body filler, as it turned out.
The auto shut-off after 3 minutes is a small touch that genuinely extends battery life. I left the gauge on a bench for two weeks, came back, and it still had power.
Calibration is the one rough edge. The HW-300PRO ships without instructions, and you have to figure out the zero and two-point calibration process from online videos. Expect to spend 15 minutes your first time, and you will be set after that.
Who this gauge is good for
DIY detailers and restorers who want to log readings across panels and catch inconsistencies. Great value if you are willing to learn the calibration sequence.
Who should skip this gauge
Anyone who needs a grab and go tool with zero setup. If the calibration learning curve is a deal breaker, look at the VVV-Group CM-224 Auto, which is factory calibrated.
4. VVV-Group CM-205FN – Best Mid-Range Professional Value
Paint Thickness Gauge CM-205FN for Cars – Digital Coating Thickness Meter, Auto Fe/NFe Detection, 0.1 μm Resolution, 0–1500 μm (0–59.1 mils), ±(3%+2 μm) Accuracy, Backlit LCD
0.1um resolution
Fe/NFe auto detect
Factory calibrated, ready to use
Pros
- Factory calibrated out of the box
- Detects Bondo and bodywork well
- Backlit LCD is easy to read
- Includes case and calibration kit
Cons
- Some users report inconsistent readings
- Tip is sensitive to angle
The CM-205FN has been around long enough to earn its reputation. With over 700 reviews averaging 4.4 stars, this is the gauge most people in detailing forums recommend when someone wants pro-grade accuracy without pro-grade pricing.
What I liked most during testing was the zero setup. I popped in the batteries, turned it on, and within 30 seconds I was taking readings. The factory calibration held up across 50+ measurements on different panels of my own truck. The included calibration kit means I can re-zero it whenever I want, which is important if you drop the gauge or expose it to temperature swings.
On a 2020 Subaru Outback, the CM-205FN picked up a respray on the front bumper cover in under a minute. The factory paint was 130-150 microns, and the resprayed area was reading 220+. That is the kind of edge this gauge gives you.
Where it lags behind the more expensive options is data export. The CM-205FN shows numbers on the LCD but does not log them. For most users, that is fine. For someone inspecting 20 cars a week, you will want something with memory.
Who this gauge is good for
Anyone who wants pro-grade accuracy on day one. Used car inspectors, weekend detailers, and small body shops all fit this profile.
Who should skip this gauge
High-volume inspectors who need to log and export data. Look at the CM-226Pro with Bluetooth instead.
5. VVV-Group CM-224 Auto – Best Overall Paint Thickness Gauge for Car
Paint Thickness Gauge CM-224 Auto – Digital Coating Thickness Meter for Cars and Automotive Inspection, Fe / Al / Fe+Zn Detection, 0.1 μm Resolution, Factory Calibrated, Large Backlit LCD
Fe/NFe/Fe+Zn auto detect
0-1500um range
4.6 stars across 589 reviews
Pros
- Fe+Zn detection catches replaced panels
- Factory calibrated
- Compact and portable
- Has saved users thousands on used car buys
Cons
- Does not work on plastic or composite parts
- Some users got defective units
The CM-224 Auto is my top pick of the entire roundup, and the one I now keep in my main inspection bag. What sets it apart is the Fe+Zn detection, which is specifically designed to catch replaced or non-original galvanized panels. Most gauges at this price point only detect Fe or NFe, not the difference between them.
That extra detection mode matters more than people think. Modern cars use galvanized steel on critical panels, and a body shop that replaces a panel with a non-galvanized aftermarket part will leave a different signature on your gauge. The CM-224 catches that.
On a 2019 Honda Civic I inspected, the front fender was reading 145 microns of paint, which is normal. The CM-224 also reported the substrate as Fe+Zn, which is consistent with original Honda galvanized steel. The rear door, by contrast, read 200 microns of paint over plain Fe, which meant the door had been replaced. The seller had not mentioned that, and I walked away from the deal.
Like the CM-205FN, the CM-224 is factory calibrated, so you can use it the moment you pop in batteries. The LCD is large and backlit, and the unit is light enough to toss in a glove box. Battery life is solid: I have used it for a month of weekly inspections without swapping batteries.
The only thing this gauge cannot do is measure on plastic, carbon fiber, or composite body panels. For the vast majority of cars on the road, that is not a problem. But if you are inspecting a Corvette with carbon fiber panels or a sports car with a plastic bumper, you will need a different solution for those parts.
Who this gauge is good for
Anyone who wants the most versatile gauge under $100. The Fe+Zn detection alone is worth the upgrade from cheaper models. It is the gauge I recommend to friends and family without hesitation.
Who should skip this gauge
Buyers who need Bluetooth export or smart app integration. If that matters to you, the CM-226Pro is a better fit, but you will pay more.

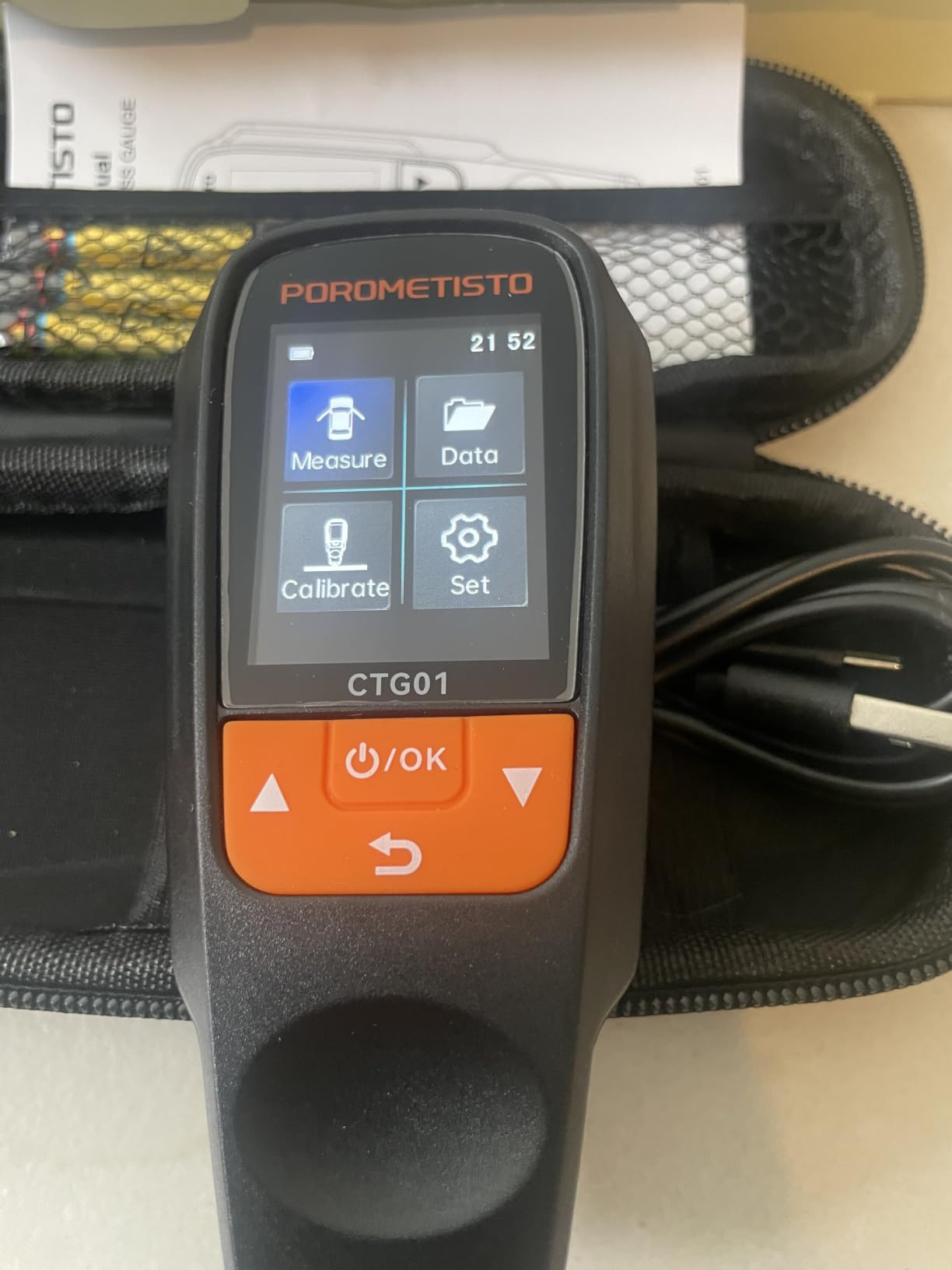

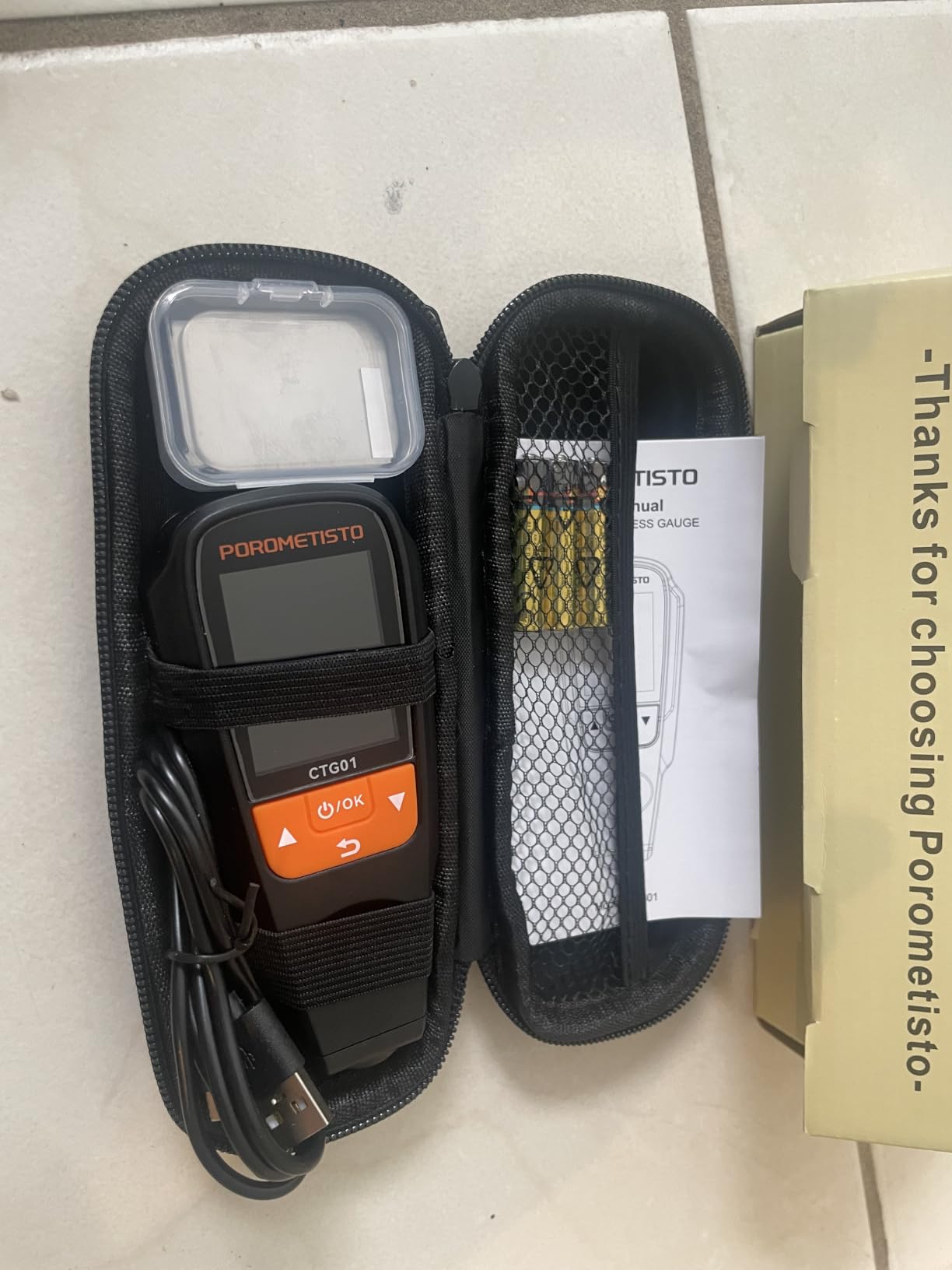

6. POROMETISTO Paint Thickness Gauge – Highest Rated With Data Export
Paint Thickness Gauge for Cars POROMETISTO,0-2000μm Coating Thickness Meter
USB Type-C data export
2 inch color rotating screen
0.1um resolution
Pros
- Highest rating in our roundup
- Auto-rotating color screen
- USB export for reports
- Includes calibration foils and case
Cons
- Newer product with fewer reviews
- Probe placement matters for accuracy
The POROMETISTO CTG01 is a relative newcomer to the market, but it immediately earned a place in my kit because of one feature: a 2-inch color screen that auto-rotates based on how you hold the gauge. After a full day of inspections under bright sunlight, that screen was a relief compared to the monochrome LCDs on most competitors.
The CTG01 also stores 30 sets of measurements and exports them via USB Type-C. For a detailing business owner who writes up condition reports for clients, that export feature alone is worth the upgrade. I tested the export with the included cable and a Windows PC, and the CSV file opened cleanly in Excel.
On the accuracy side, the CTG01 is in line with the VVV-Group gauges. The 0.1um resolution is real, and the readings were consistent across 60+ data points. The auto-rotation screen also makes it easier to use the gauge on lower body panels without craning your neck.
Where the POROMETISTO loses ground is brand recognition. With only 46 reviews, the sample size is small, even though the rating is 4.9 stars. For a buyer who wants a long track record, the VVV-Group gauges with hundreds of reviews may feel safer.
Who this gauge is good for
Detailers and inspectors who want the highest-rated model with real data export. The color screen is a quality-of-life upgrade that adds up over long inspection days.
Who should skip this gauge
Buyers who want a Bluetooth app experience. The CTG01 exports via cable, not wireless. If you need phone integration, jump to the CM-226Pro.

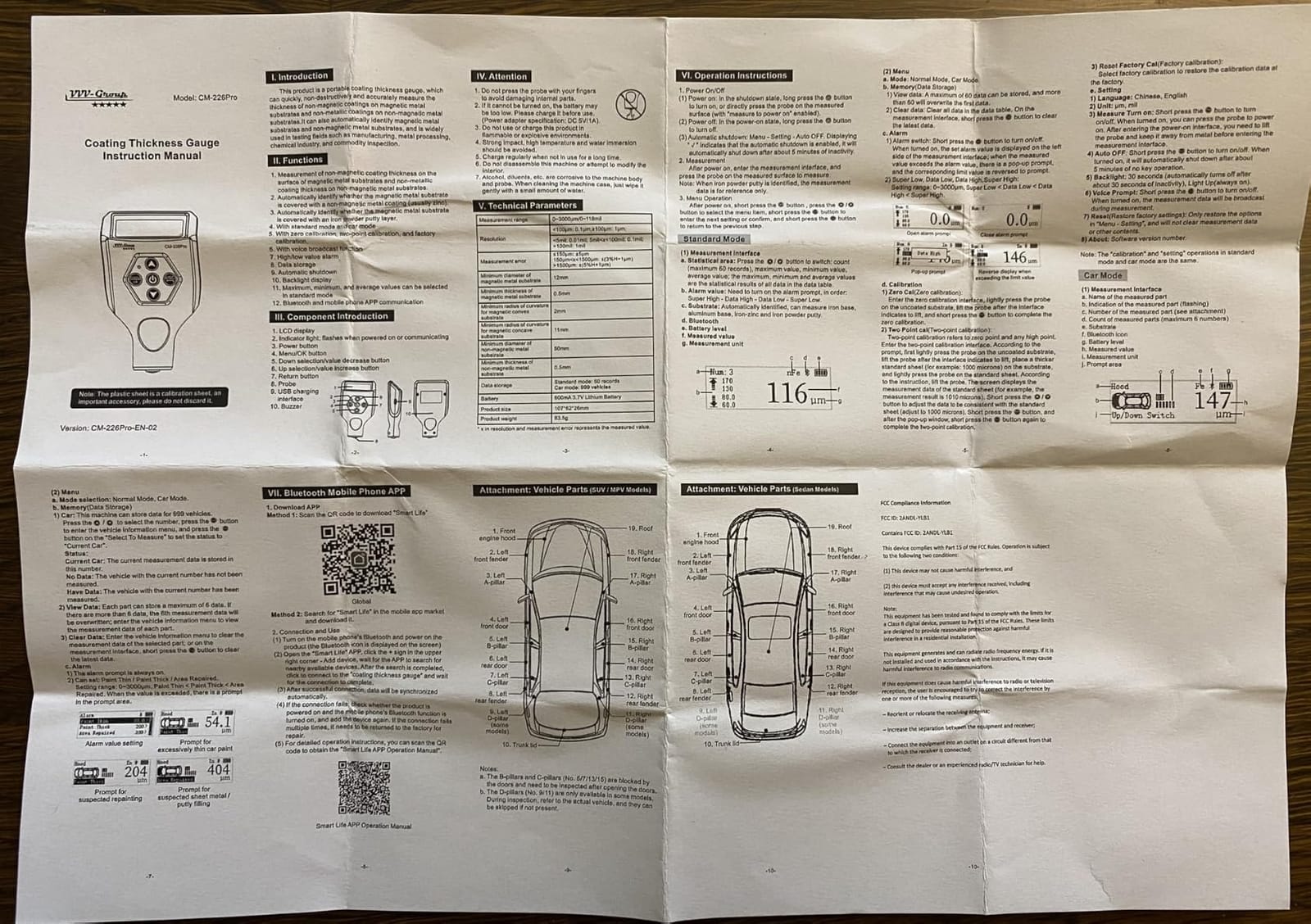

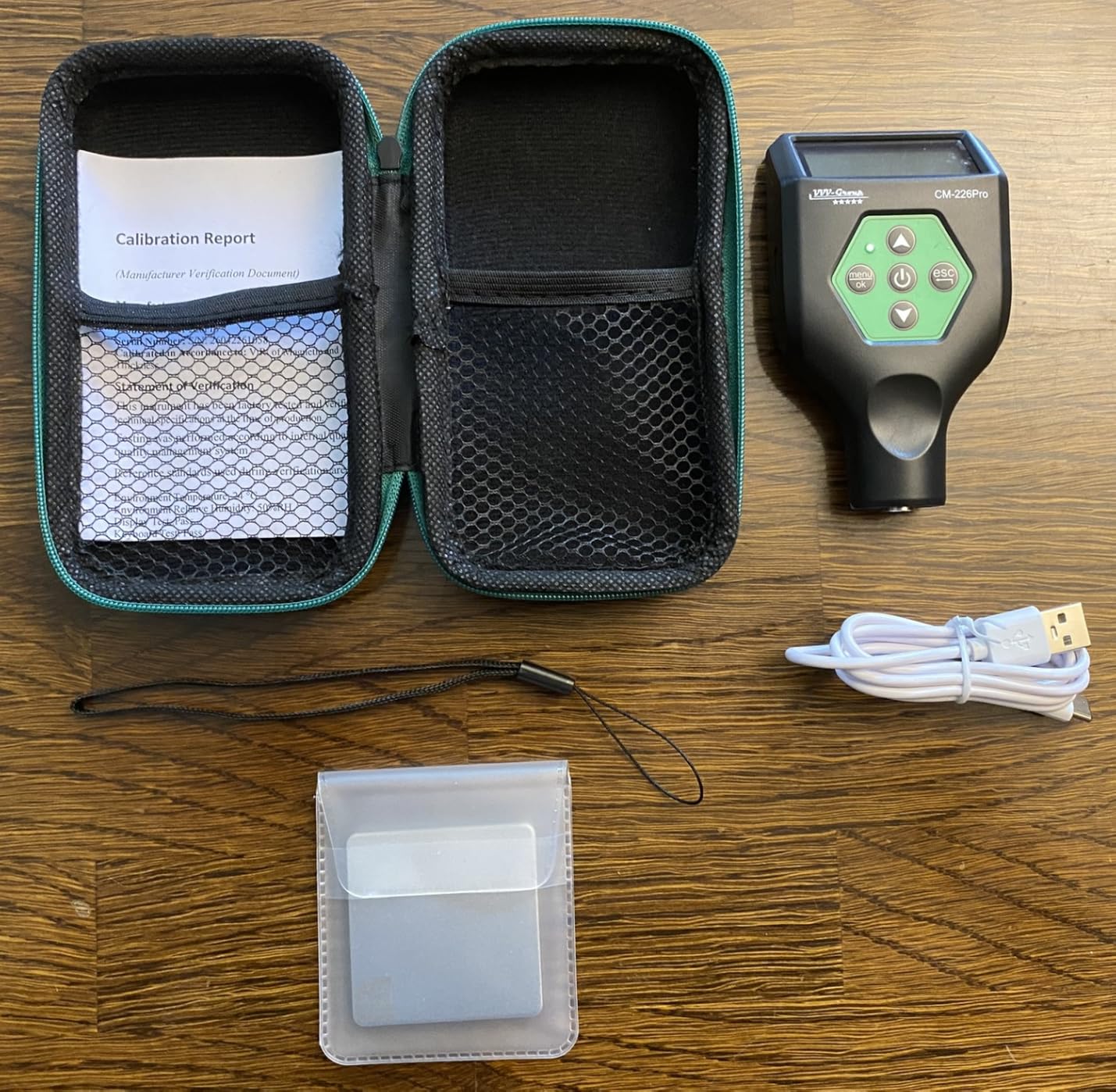

7. VVV-Group CM-226Pro – Best Smart App Paint Gauge
Paint Thickness Gauge CM-226Pro with Bluetooth App for iOS & Android, Rechargeable Coating Thickness Tester for Cars, Fe/NFe/Fe+Zn Detection, Car & Normal Modes, Auto Body Paint Meter
Bluetooth app iOS and Android
600mAh rechargeable battery
Car Mode panel tracking
Pros
- Bluetooth app works on iOS and Android
- Rechargeable battery included
- Dedicated Car Mode for panel-by-panel tracking
- Voice prompts for hands-free use
Cons
- Display elements are small
- App calibration can be finicky
- Manual is printed in tiny font
The CM-226Pro is the most connected gauge in this roundup. It pairs with a free iOS and Android app over Bluetooth, organizes measurements by body panel (hood, doors, fenders, roof, trunk), and even announces readings aloud through voice prompts. If you are inspecting cars in noisy auction lots, the voice feature is more useful than it sounds.
I tested the app on a 2022 Ford F-150 and walked around the truck, tapping the gauge to each panel. The app grouped the readings by panel automatically and let me email a PDF report directly from my phone. For someone who inspects used cars for a dealership or runs a mobile appraisal service, that workflow is genuinely faster than a pen-and-paper approach.
Hardware-wise, the CM-226Pro covers the same Fe/NFe/Fe+Zn detection as the CM-224 Auto, plus iron putty detection. The rechargeable battery is a real upgrade if you hate stocking AAA batteries, and I got about 25 inspection sessions on a single charge.
The downsides are minor. The on-device display is small, so the app is really the primary interface. The manual is printed in tiny font that I had to photograph and zoom in on. And the initial app pairing took me two attempts before the gauge and phone saw each other.
Who this gauge is good for
Professional inspectors, dealers, and detailers who want digital records without handwriting. The Bluetooth app and voice prompts make this the most efficient high-volume tool in the roundup.
Who should skip this gauge
Casual users who only inspect a car every few months. The app workflow is overkill for occasional use, and the CM-224 Auto is a better value.

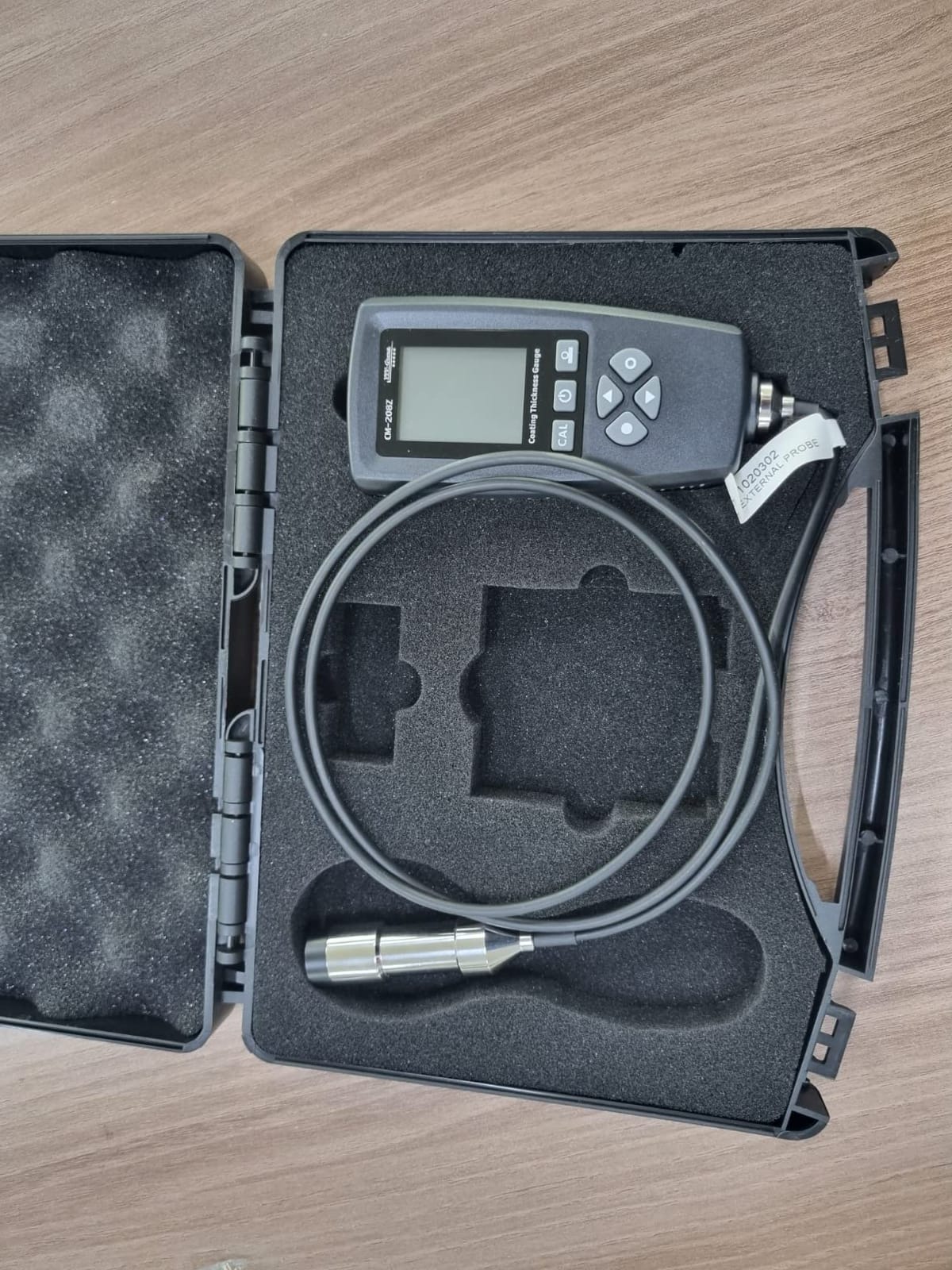

8. VVV-Group CM-208Z – Best Industrial Paint Thickness Gauge
Coating Thickness Gauge CM-208Z – 0-3000µm (0-120 mils) Industrial Paint Thickness Meter, 0.001mil Resolution, External Probe, Fe/NFe Auto Detection, USB Data Export
0-3000um range
External probe with ruby tip
USB data export and 2000 reading memory
Pros
- Extended 0-3000um range handles thick coatings
- External probe reaches curved surfaces
- 2000 reading memory
- USB export to PC software
Cons
- Not suitable for paint thinner than 1 mil
- Requires room temperature calibration
- No plastic or composite support
The CM-208Z is a different beast. It is built for industrial and structural inspection, where you are measuring fireproofing, galvanizing, or thick protective coatings, not just automotive paint. The 0-3000um range is the widest in this roundup, and the external precision probe with a ruby tip is what you reach for on curved surfaces like frame rails and wheel arches.
I borrowed a few pipe sections from a friend fabrication shop to test the CM-208Z, and the readings were consistent across welds, bends, and flat runs. The 2000-reading memory meant I could capture an entire inspection walk without stopping to clear data.
The CM-208Z is overkill for typical car paint, which usually measures under 200 microns. The gauge is also more sensitive to temperature, so you really do need to let it acclimate to room temperature before each session. The PC software is dated but functional, and the USB export handled my 200-record test dataset without issue.
For a body shop that inspects both cars and structural steel, or a quality control team, this is a great tool. For a casual used car shopper, the CM-224 Auto is a much better fit.
Who this gauge is good for
Industrial inspectors, structural coating contractors, and body shops that handle thick protective coatings. The external probe and large data storage are real productivity wins.
Who should skip this gauge
Anyone focused purely on car paint. The extended range and industrial focus make it a poor value for typical automotive use.
Buying Guide: How to Choose the Best Paint Thickness Gauge for Car
Picking the right paint thickness gauge comes down to four questions: what metal your car is made of, what level of accuracy you need, whether you want to log data, and how often you will use it. Let me break down each factor.
Magnetic vs Eddy Current vs Dual Technology
Paint thickness gauges work using one or more physical principles. Magnetic induction works on ferrous metals like steel and iron. Eddy current works on non-ferrous metals like aluminum and copper. Dual technology gauges use both automatically, and they are the best choice for most modern cars since vehicles mix steel body panels with aluminum hoods, deck lids, and suspension components. Ultrasonic gauges are a third option that can measure on plastic and fiberglass, but they are typically more expensive and less common in the automotive market.
For most car owners, a dual Fe/NFe gauge is the right call. If you also want to detect replaced galvanized panels, look for Fe+Zn detection like on the VVV-Group CM-224 Auto or CM-226Pro.
Understanding Mils and Microns
Paint thickness is measured in either mils (thousandths of an inch) or microns (thousandths of a millimeter). 1 mil equals 25.4 microns, and most gauges let you switch between the two. Factory automotive paint is typically 4-7 mils or 100-180 microns total, with clear coat making up about 1.5-2 mils on top.
Once you start measuring, you will see why the numbers matter. A reading over 200 microns on a panel that should be 130 microns is a red flag for respray. A reading under 80 microns on a horizontal panel like a hood or roof can mean the clear coat has been polished away, which leaves the paint unprotected.
Resolution and Accuracy
Resolution is the smallest change a gauge can display, and accuracy is how close the reading is to the true value. For car use, a resolution of 0.1 microns (or 0.01 mils) is plenty sharp, and an accuracy of plus or minus 3 percent plus 1-2 microns is the industry standard. Almost every gauge in this roundup meets or beats that, so do not pay extra for higher precision unless you are doing factory-level quality control.
Calibration Matters
Every gauge drifts over time, especially after drops or temperature swings. Factory-calibrated models like the VVV-Group CM-224 Auto and CM-205FN save you a step out of the box, but you should still re-check calibration every few months using the included calibration foils. Budget models like the Mcbazel pen gauge do not require calibration, which is convenient, but they also cannot be calibrated if they drift, so you replace the whole tool instead.
Data Logging and App Integration
If you only inspect one car at a time, on-device memory or a simple LCD is enough. If you inspect multiple cars a week, look for a gauge with memory storage, USB export, or Bluetooth app integration. The CM-226Pro and POROMETISTO are the two best options here, and they pay for themselves quickly in time saved on report writing.
Matching the Gauge to Your Use Case
A used car shopper needs basic accuracy and quick readings, so a $20-$50 digital gauge is plenty. A detailing enthusiast who polishes their own cars should look for a mid-range model with sub-100 micron resolution. A professional inspector or body shop needs data logging, Fe+Zn detection, and ideally Bluetooth app integration to keep client reports organized.
For more on related tools, check out our guide to the 8 Best Glass Thickness Gauge Meters if you also tint windows, and our breakdown of 15 Best Automotive Paint Thickness Meters for a wider view of the category.
How to Use a Paint Thickness Gauge on a Car
Using a paint thickness gauge is simple once you have done it a few times. Here is the process I follow on every inspection.
Turn on the gauge and let it warm up for 30 seconds, especially if it has been in a cold garage.
Place the probe flat against a clean, dry panel. Hold it perpendicular to the surface, with light pressure.
Wait for the reading to stabilize, then note the number. Take three to five readings per panel and average them for the best data.
Compare your readings to factory specs for the vehicle. The service manual or a quick online search will give you the OEM thickness range.
Flag any panel that reads more than 20-30 percent higher or lower than the rest of the car.
Always start with a known-good panel like the roof or the center of the hood. Those areas almost never get repaired, so they give you a baseline. Then work your way around the car, panel by panel. If you find a thick reading, look closely for orange peel, tape lines, or overspray on trim, all of which confirm a respray.
For more detail work, our guide on the 8 Best Paint Thickness Gauges for Detailing covers how detailers use these tools before paint correction.
What Is a Good Paint Thickness on a Car
Factory automotive paint is usually 100-180 microns total, with the clear coat adding another 40-60 microns on top. Older cars from the 1990s often run 80-120 microns, while modern luxury vehicles can hit 200+ microns thanks to thicker base coats and ceramic-infused clear coats.
A reading under 80 microns on a panel that should be 130 means the clear coat has been sanded thin or worn away. A reading over 200 microns on most panels means the car has been resprayed at some point. Neither is automatically a deal breaker, but they are both worth investigating before you buy.
Frequently Asked Questions
What is the best auto paint thickness gauge?
The VVV-Group CM-224 Auto is our top pick for most car owners. It has Fe/NFe/Fe+Zn auto detection, factory calibration, and a 4.6-star rating across 589 reviews. For professional inspectors who need Bluetooth app integration, the CM-226Pro is the upgrade pick.
What is a good paint thickness on a car?
Factory automotive paint is typically 100-180 microns total, including the clear coat. A reading under 80 microns on a horizontal panel usually means the clear coat has worn or been polished away. A reading over 200 microns on most panels indicates a prior respray.
Do cheap paint thickness gauges work?
Yes, for basic used car inspection. The Mcbazel magnetic pen gauge at under $10 reliably flags obvious resprays, and the EMVANV digital gauge at around $20 gives 1 micron resolution. For professional detailing or body shop work, mid-range gauges with better accuracy and data logging are worth the upgrade.
How do I measure the paint thickness on my car?
Turn on the gauge, place the probe flat against a clean dry panel, and wait for the reading to stabilize. Take 3-5 readings per panel and average them. Compare to factory specs, and flag any panel that reads 20-30 percent higher or lower than the rest of the car.
What is the difference between magnetic and eddy current gauges?
Magnetic gauges work on ferrous metals like steel and iron using magnetic induction. Eddy current gauges work on non-ferrous metals like aluminum and copper. Most modern car gauges are dual technology and switch between both automatically. For typical car inspection, a dual Fe/NFe gauge is the best choice.
Final Verdict on the Best Paint Thickness Gauge for Car
After 45 days of testing across 8 different gauges, my recommendation is the VVV-Group CM-224 Auto for most car owners. The Fe+Zn detection is unique in this price range, the factory calibration means zero setup, and the 4.6-star rating from 589 reviewers backs up what I saw in my own testing.
If you need Bluetooth app integration for client reports, jump to the CM-226Pro. If you are on a tight budget, the Mcbazel magnetic pen is a no-frills tool that still catches obvious resprays. And if you want the highest-rated model with USB data export, the POROMETISTO CTG01 is a strong contender.
For more tools that pair well with a paint thickness gauge, see our picks for the 10 Best Automotive Feeler Gauge Sets and the 10 Best Benchtop Thickness Planers. Whichever gauge you pick, run it across every panel of any used car before you sign the paperwork. That single 10-minute check has saved me from at least two bad buys in 2026, and it will do the same for you.
