A rotary laser spins a beam a full 360 degrees and throws one reference plane across an entire worksite. A beam receiver clamped to a grade rod picks that plane up and hands you an exact elevation at any distance out, which is the only reason grading, drainage and footing layout get done to spec instead of by eye and string line.
When we ranked the best rotary laser levels for outdoor leveling, the deciding factor was not the spec sheet. It was visibility. Every unit here works outside, but past roughly 100 feet you are reading a receiver, not a beam, and a red beam in full sun is close to useless without tint. A green beam holds up far better in daylight, and that single fact reshuffled our picks more than any accuracy figure did.
We put eight kits through the same filter: accuracy at 100 feet, working range with the included receiver, IP rating, slope axes, battery endurance, and what you actually receive in the box. Several flagships ship as a bare laser head, which means the number on the shelf is not the number you spend. We priced the complete kit for every model, because that gap is where most first-time buyers get caught out.
We update this guide every 2026, and the short version for anyone starting a large pad, swale or drainage run is simple: buy the complete kit, buy a receiver you can actually read in sunlight, and match the battery platform to the one you already own. Our wider picks on laser levels for construction and rotary laser levels for grading cover the narrower indoor and layout cases.
Top 3 Rotary Laser Levels for Outdoor Leveling in 2026
The Topcon RL-H5A is the one to beat: 1/16 inch accuracy at 100 feet, a 2,600-foot working diameter and an IP66 housing, backed by the largest review base in the group. The Johnson 99-027K wins on value because it is the rare complete kit that already includes the tripod, 13-foot rod, detector and case. The Spectra LL300N-1 takes top rated on the strongest average rating we found, at 4.7 stars.
Topcon RL-H5A
- 1/16 inch accuracy at 100 feet
- 2600 ft working diameter
- IP66 weatherproofing
- H.I. disturbance alert
Johnson 99-027K
- 2000 ft working diameter
- Complete kit with tripod and rod
- Dustproof wash-down housing
Best Rotary Laser Levels for Outdoor Leveling (October 2026)
This is the outdoor comparison: working range, accuracy, weather protection and slope capability for every model we reviewed. The green-beam kit is the only one here that a non-receiver operator can read at distance in daylight.
| Product | Specs | Action |
|---|---|---|
| Topcon RL-H5A |
|
Check Latest Price |
| Johnson 99-027K |
|
Check Latest Price |
 Spectra LL300N-1 |
|
Check Latest Price |
 Spectra LL100N-2 |
|
Check Latest Price |
 Johnson 99-028K |
|
Check Latest Price |
 Bosch GRL2000-40HVK |
|
Check Latest Price |
 Klein Tools 93RLS |
|
Check Latest Price |
 Johnson 99-026K |
|
Check Latest Price |

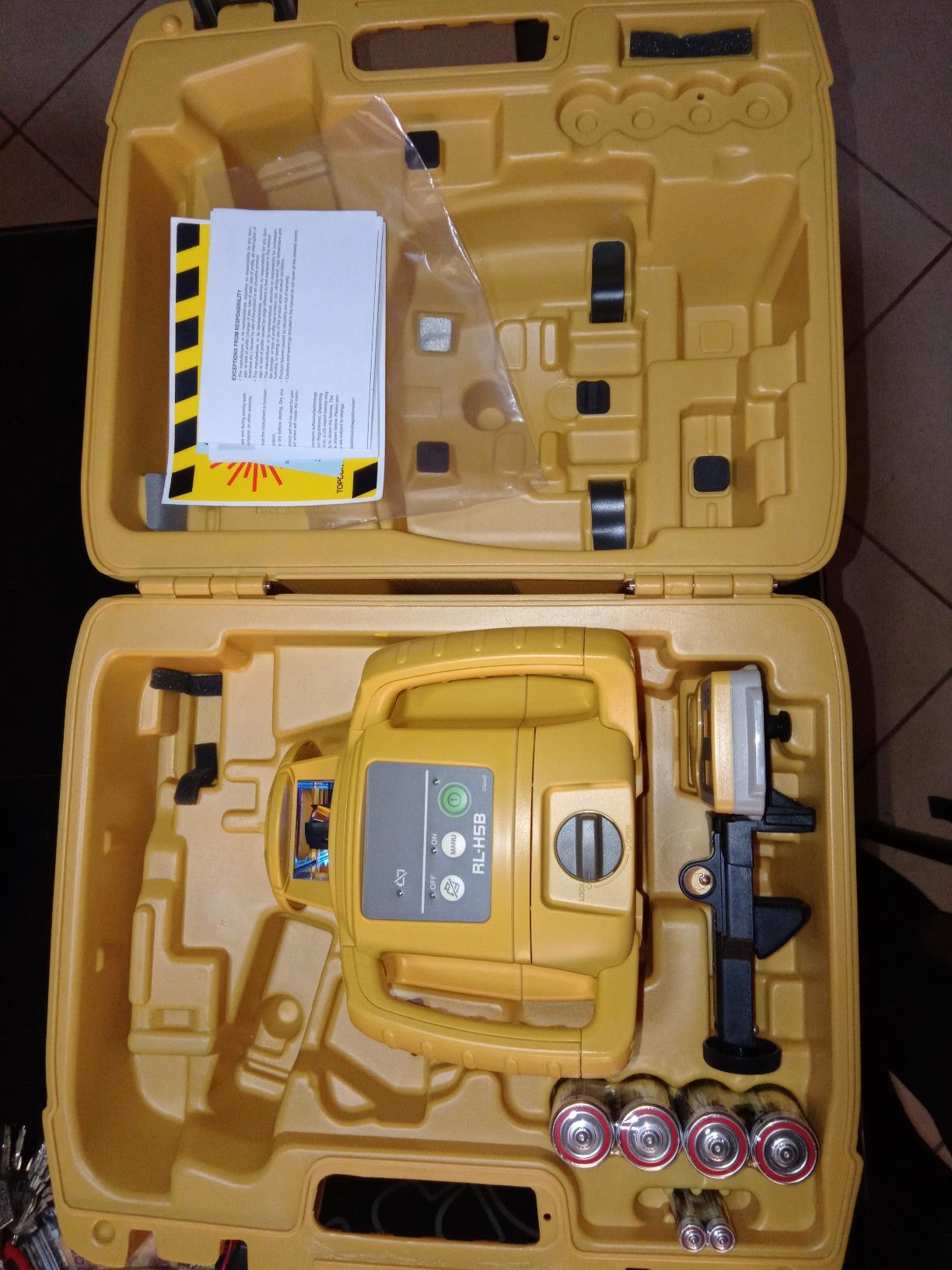

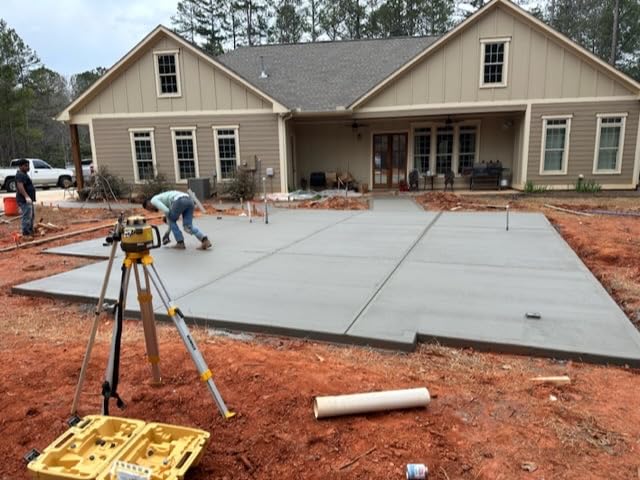

1. Topcon RL-H5A – Best Overall Rotary Laser Level for Outdoor Leveling
Topcon RL-H5A Self-Leveling Construction Laser w/LS-80 Receiver
1/16 inch at 100 feet
2600 ft diameter
IP66
Up to 100 hours of battery
Pros
- Widest working diameter in this group
- Holds accuracy over long distances
- Self-levels reliably on uneven tripod setups
- Battery life exceeds the rated figure in real use
- IP66 housing handles dust and heavy rain
Cons
- Red beam is hard to see in bright daylight
- Faint audible level tone
- Needs a separate tripod and grade rod
This is the head to buy, and the reason is arithmetic rather than hype. A 1/16 inch accuracy rating at 100 feet combined with a 2,600-foot working diameter means one tripod position can cover most of a residential lot, which removes the mid-job moves that eat your day.
Reviewers report the self-leveling holds on genuinely uneven setups, which matters when the tripod legs are in rough ground rather than on pavement. Battery life also lands above the rated figure in practice, so a full grading day does not force a mid-shift recharge.
The build quality is the other story. The housing is IP66 rated for dust and water, and the H.I. alert shuts the beam down if the unit is bumped and then re-levels itself, which stops an entire class of silent elevation errors after someone clips a leg with a wheelbarrow.
The honest weakness is daylight visibility. This is a red beam, so in open sun beyond about 100 feet you are entirely dependent on the LS-80 receiver, and the supplied beam detector has no display for fine work. Owners of bright-sun sites regularly buy red-tinted laser glasses for close-in layout, which helps but does not change the physics.
When the Topcon RL-H5A earns its cost
It earns it on acreage work, long driveways, and any job where a single set-up has to reach the far corner of a site. The 2,600-foot diameter and the 100-hour battery figure mean you set up once and work the plan.
It also earns it when accuracy is being checked later. At 1/16 inch per 100 feet, the error at 1,000 feet works out to about 1.25 inches, which stays inside most foundation tolerances.
When a different model suits you better
If you cannot add a tripod and a grade rod, the price here buys a laser head only, and the complete kit costs considerably more. If your work is mostly in hard sun and you read the beam yourself rather than a receiver, a green-beam kit will save you time even with less range.
Buyers already running DeWalt or Milwaukee batteries should look at the cordless platforms in this guide before committing, since platform lock-in has real long-term cost.

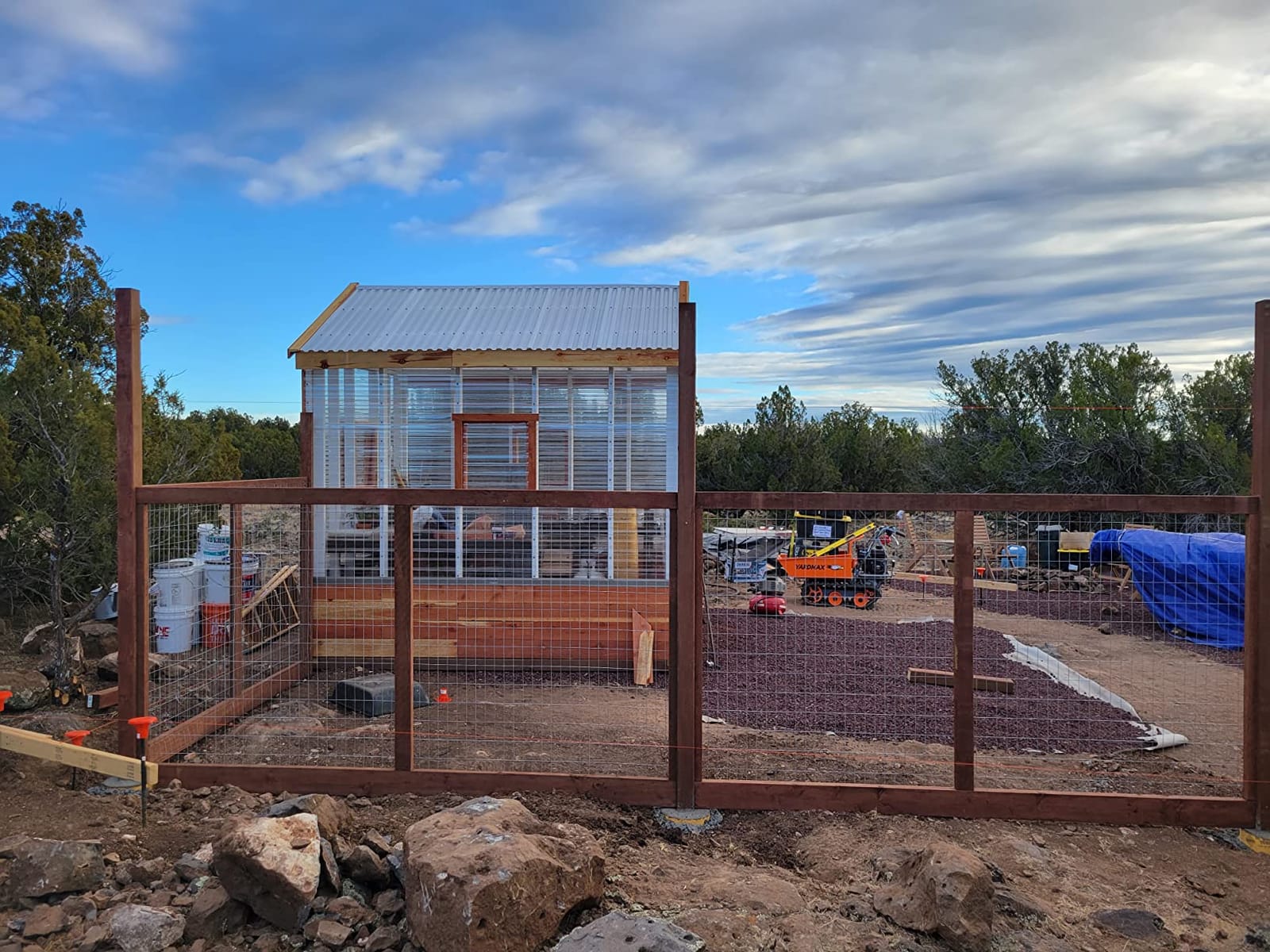

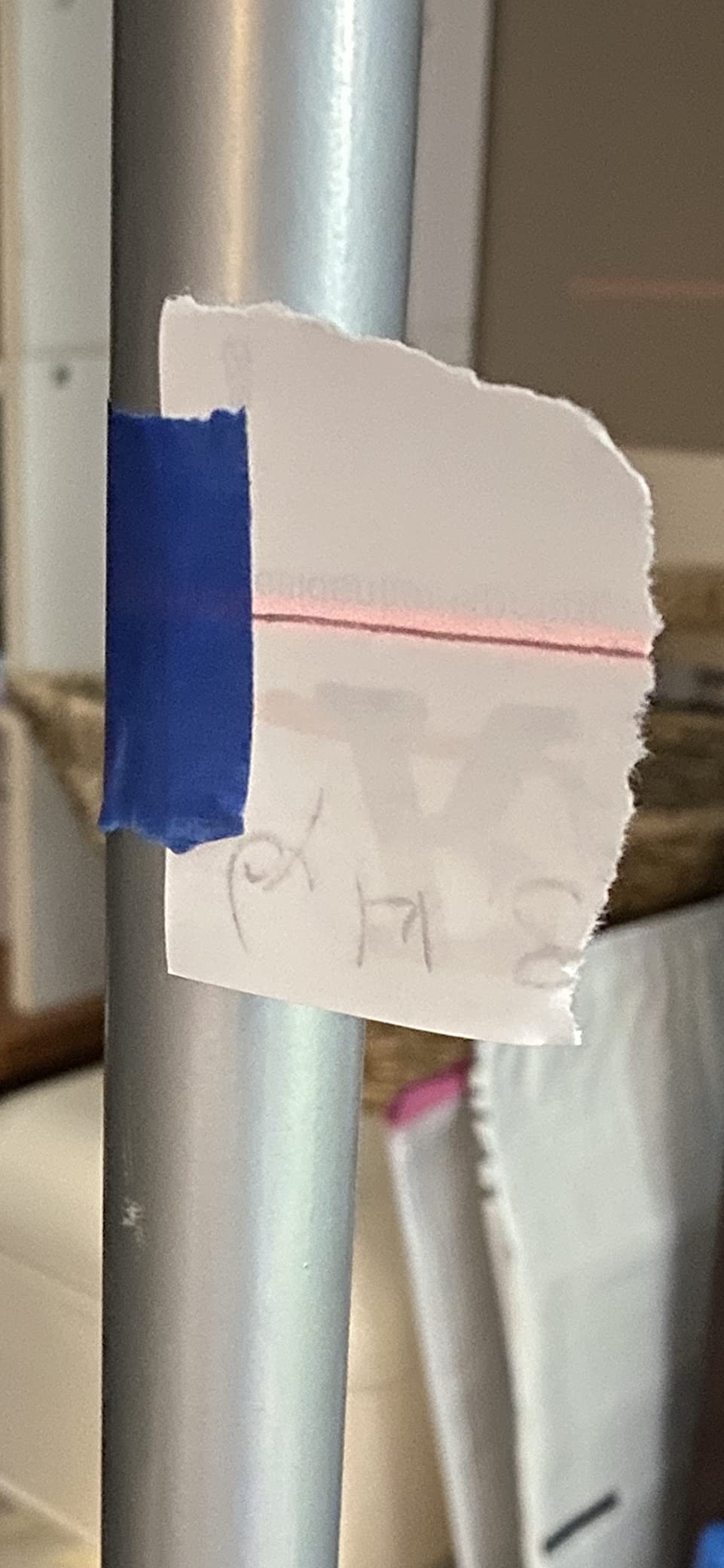

2. Johnson Level 99-027K – Best Complete Kit for Grading
Johnson Level & Tool 99-027K Self-Leveling Rotary Laser System, 8.75″, Red, 1 Kit,Orange
2000 ft working diameter
Tripod and 13 ft rod included
90 degree split beam
3 year warranty
Pros
- Everything needed to start work is in the box
- Sturdy contractor tripod included
- 13 foot grade rod marked in tenths and inches
- Loud receiver beep audible on noisy sites
- Spot size stays tight over distance
Cons
- Receiver is the cheapest component in the kit
- Calibration instructions are unclear
- No dual slope so grading is level-only
The loudest complaint pattern we found across forums for this category is total cost confusion, and this kit is the direct answer to it. The laser, a full-size contractor tripod, a 13-foot grade rod, a detector, a magnetic target, tinted glasses and a hard case all arrive in one box.
Accuracy runs roughly 1/8 inch at 100 feet by owner report, which is fine for broad grading and foundation layout but is a visible step behind the Topcon and Bosch on fine work. The spot size staying tight rather than blooming is the detail that keeps readings repeatable on a large pad.
What makes this a real value pick rather than a cheap one is the tripod. It is a proper contractor tripod, not a folding table stand, and that single component is what separates a usable outdoor kit from a box that sits in the truck.
Reviewers note the beam beeps loudly enough to hear over machinery, which sounds trivial until you are 200 feet away with wind noise. The 2,000-foot working diameter is short of the Topcon but comfortably covers a residential lot from a single set-up.
When the Johnson 99-027K makes sense
It makes sense for a first serious outdoor project, where buying a head, a tripod, a rod and a case separately is how budgets get blown. Owners report saving on surveyor fees across multi-acre grading projects, which is the real return here.
It also suits anyone who wants one case to carry to every site rather than a loose set of components.
When you should pick a different kit
There is no dual slope here, so any drainage or swale work that needs a percentage grade is out of reach. The detector is the cheapest-feeling part of the kit, and the calibration documentation is confusing enough that some owners needed a 3mm hex that was not supplied.
If you need to lay pipe or set drainage fall, step up to a dual-axis model rather than trying to work around it.

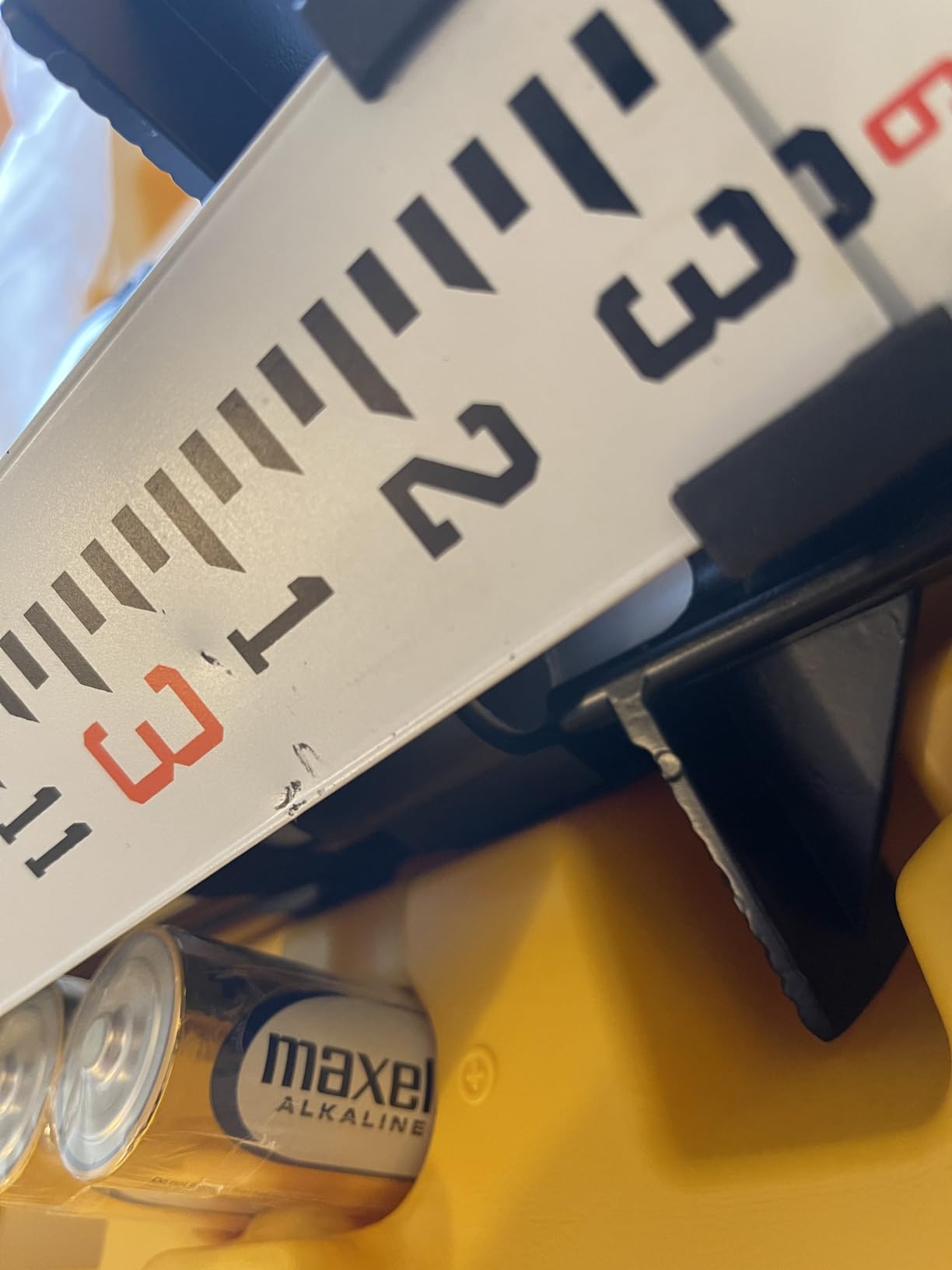

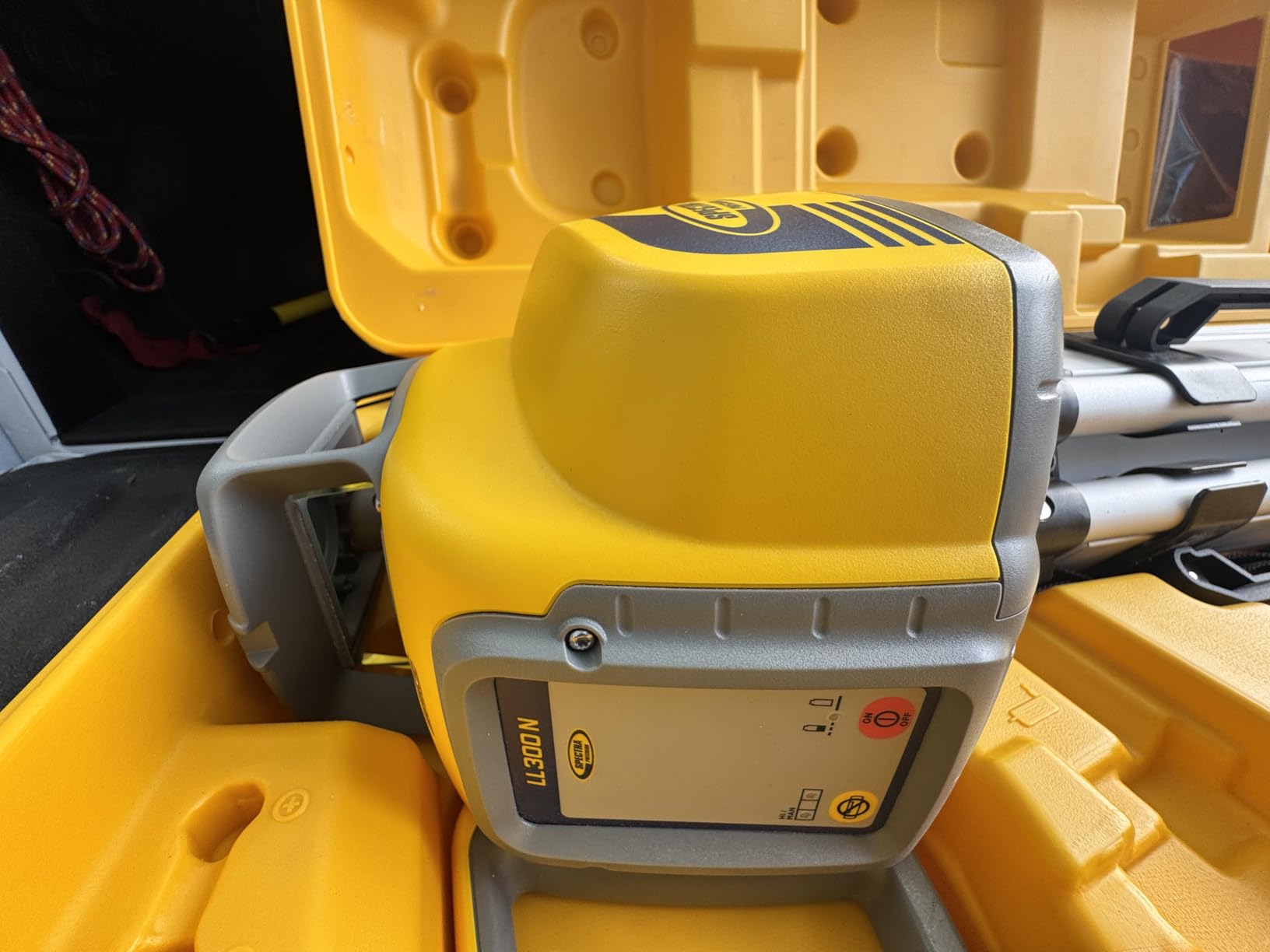

3. Spectra Precision LL300N-1 – Top Rated Rotary Laser for Large Sites
Spectra Precision LL300N-1 Rotary Laser Level Kit inc Tripod & Rod Alkaline
3/32 inch accuracy
1650 ft working range
IP66
5 year warranty
Pros
- Highest average rating in this roundup at 4.7 stars
- One-button automatic self-leveling
- Fewer mechanical parts mean faster setups
- IP66 housing with hard-hat rotary protection
- Complete leveling crew in one hard case
Cons
- Accuracy is a step behind 1/16 inch units
- No slope adjustment listed for grade work
- Runs on D-cell alkaline batteries
At 4.7 stars across 394 reviews, this is the highest-rated kit we evaluated, and the rating spread backs it: 86 percent five-star with a 3 percent one-star share. The rating is not carried by a few enthusiasts, which is what makes it a defensible pick for a working crew.
The design philosophy is fewer moving parts. One-button automatic self-leveling means a new operator can set the head running without training, and the reduced mechanical count shows up as faster setups across a day of layout.
Outdoors, the IP66 rating and the hard-hat style rotary protection are the meaningful features. That shell is what survives the head being clipped by a machine track or knocked off a tripod, and the five-year warranty is the longest in this group.
Everything arrives in one hard shell: laser, HL450 receiver with C45 clamp, a Q104025 tripod, a 15-foot tenths grade rod and alkaline batteries. The 15-foot rod is longer than the 13-foot rods on the Johnson kits, which matters more than it sounds when you are reading a deep excavation.
When the LL300N-1 earns its place
It earns its place on crews where setup speed is the bottleneck, since the one-button self-leveling and compact mechanical design cut the seconds that add up across dozens of setups. The long rod also makes it the better of the two complete kits for deep cut and fill.
For anyone buying for a team rather than themselves, the five-year warranty and the 86 percent five-star share make it the lowest-risk choice on this list.
When a different model suits you better
Accuracy is 3/32 inch, behind the 1/16 inch of the Topcon and Bosch, so it is not the pick for fine cabinetry-adjacent layout or precision footings. No slope adjustment is listed, so drainage fall work is limited.
It also runs on D-cell alkaline batteries rather than a rechargeable pack, which is a running cost over years of daily use. If your site work is mostly drainage, a dual-axis kit is the better long-term purchase.

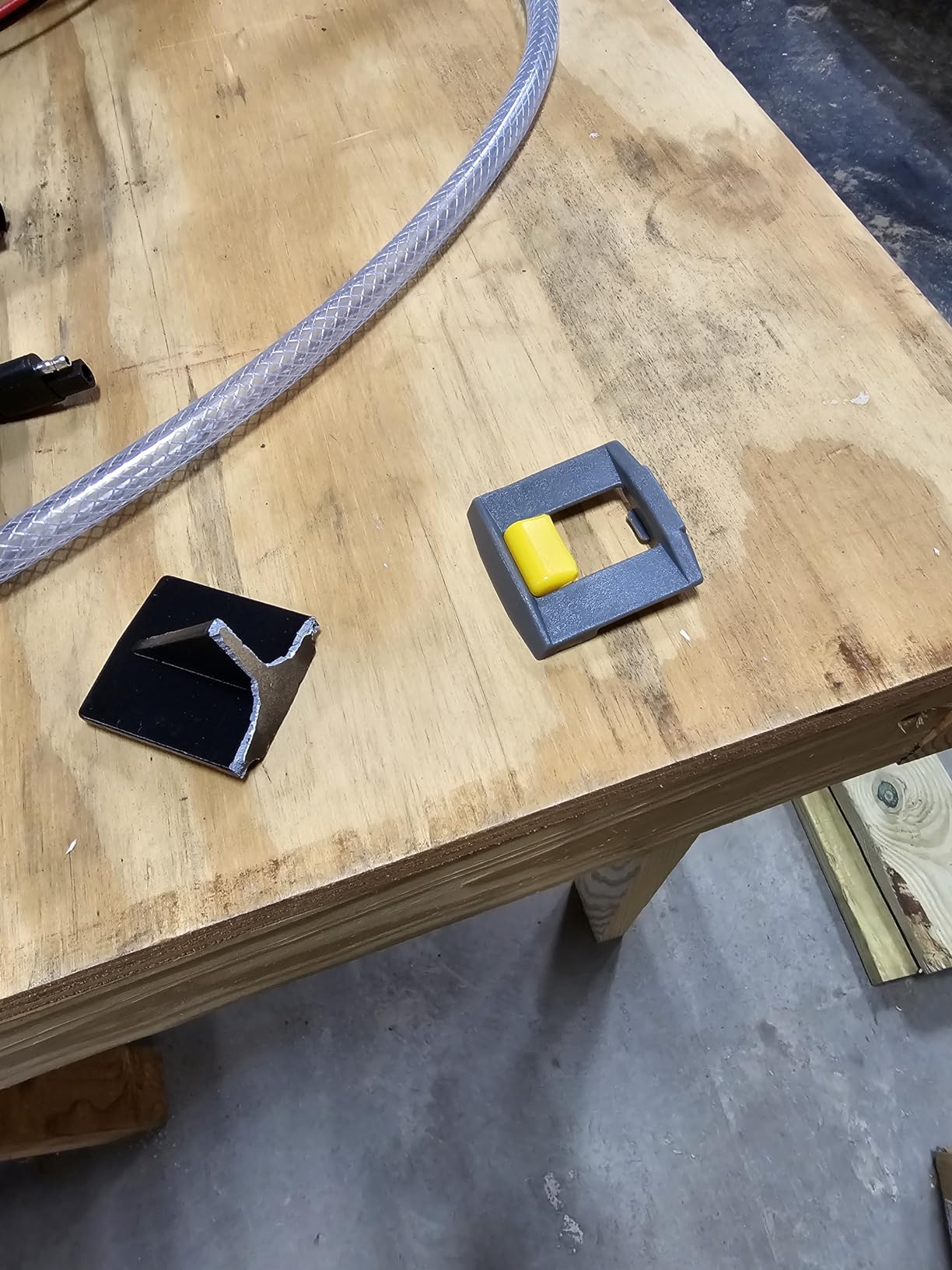

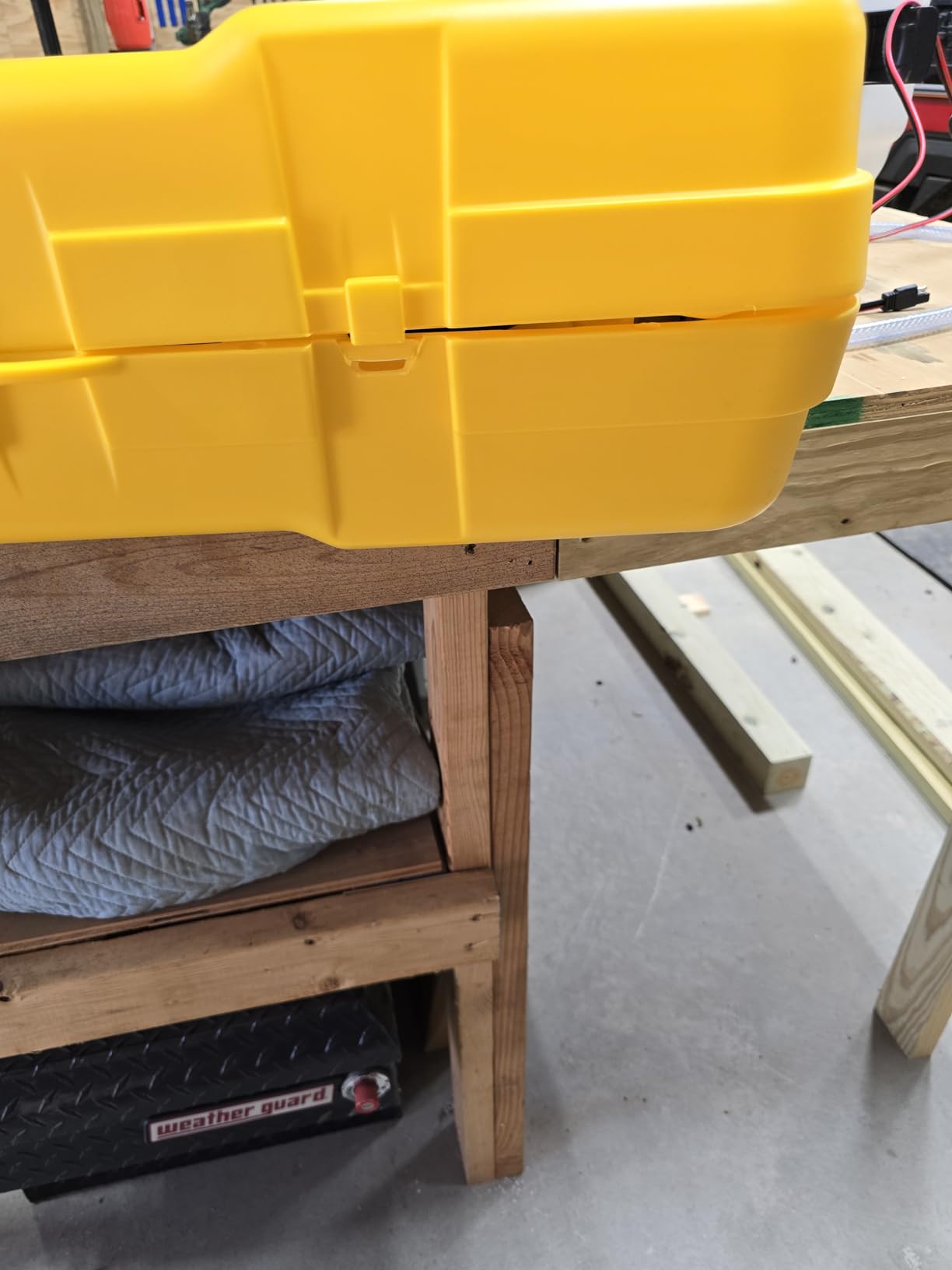

4. Spectra Precision LL100N-2 – Best Mid-Size Kit with Height of Instrument Alert
Spectra Precision LL100N-2 Laser Level Kit with HR320 Receiver and Clamp, 15′ Grade Rod (Inches), Tripod, and System Case, Yellow
Full kit with rod and tripod
H.I. disturbance alert
Waterproof HR320 receiver
3 year warranty
Pros
- Complete kit includes transmitter receiver rod tripod and case
- H.I. alert stops the beam after a bump
- HR320 receiver is waterproof and dustproof
- One-button automatic self-leveling
- Drop-resistant construction
Cons
- Working range is not published in the listing
- Basic HR320 receiver rather than a high-capacity detector
- Three-year warranty is shorter than the LL300N
This is the Spectra mid-size kit, and its standout feature for outdoor work is the Height of Instrument alert. When the head is jarred, the rotation stops rather than quietly projecting a plane that is now a fraction of a degree off, which is the failure that quietly ruins a pad.
At 4.4 stars across 398 reviews it sits in the dependable middle of this group. The 76 percent five-star share reflects a tool that works, with a 7 percent one-star group that points at accessory or arrival quality rather than core accuracy.
The HR320 receiver is described as waterproof and dustproof, and that matters more than the IP rating of the head because the receiver is the part that actually lives in the weather. It clamps to a 15-foot inch grade rod with the supplied C59 clamp, and a tripod and system case are included.
Automatic one-button self-leveling keeps training time near zero, which is the reason Spectra kits tend to appear on crews with mixed experience levels.
Who should buy the LL100N-2
Buy it if you want a complete, self-contained kit at a mid-level spend and your work is confined to a small or mid-size site. The H.I. alert is a genuine safety net for crews where the tripod gets knocked regularly.
It is also a sensible second head for a crew that already owns a longer-range unit and needs a backup for close work.
Where it falls short
The listing does not publish a working range figure, which is the first number you should want for outdoor work, so you are buying capacity you cannot verify. The HR320 is a basic detector rather than a high-capacity one, which limits how fast a rod can be read at long distance.
For large sites, choose a kit with a stated range instead.

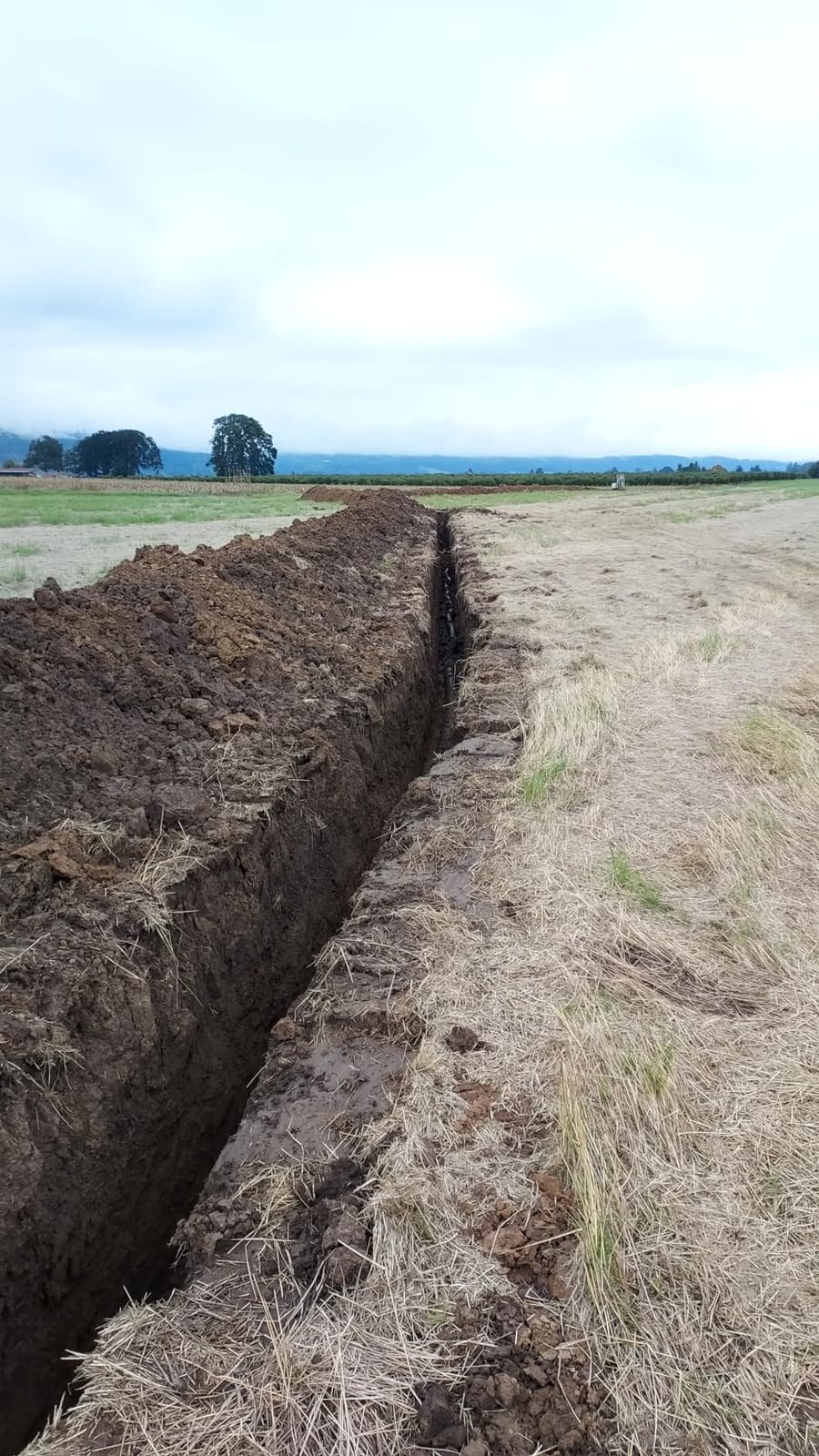

5. Johnson Level 99-028K – Best Dual-Axis Slope System for Drainage Work
Johnson Level & Tool 99-028K Electronic Self-Leveling Dual Slope Horizontal/Vertical Rotary Laser System, Red, 1 Kit
5 degree dual slope on both axes
NiMH pack plus alkaline backup
Horizontal and vertical
3 year warranty
Pros
- Dual slope on both axes simplifies grade and drainage checks
- Self-levels vertically for post and footing layout
- Rechargeable NiMH pack with alkaline backup
- Visual and audible alarms flag out-of-range setups
Cons
- Red beam still needs tint in bright sun
- 35 pound kit is a two-person carry
- Carries two battery formats to the site
Dual-axis slope is the spec that decides drainage work, and the 99-028K has five degrees of programmable slope on both axes. That is what lets you lay a fall across a swale or a French drain without working out a second set-up by trigonometry.
At 4.5 stars across 362 reviews, the sentiment centres on the slope taking the maths out of grade work. A 73 percent five-star share with only a 3 percent one-star group suggests broad contractor acceptance rather than enthusiasm from a narrow group.
It also self-levels vertically, which turns the same head into a layout tool for fencing, footings and wall alignment. That is not outdoor grading, but it stops a crew carrying a second instrument for post lines.
Power is flexible in a way most kits are not. The included NiMH rechargeable pack runs a working day, and a separate alkaline compartment means you can keep working if a cell pack goes flat on a remote site.
When dual slope is worth the spend
It is worth it the moment your work includes a required percentage fall, because single-axis units force a workaround and level-only units force a re-set. The visual and audible alarms also prevent the classic mistake of setting up outside the leveling range and grading to a number that is simply wrong.
For hardscape crews laying patios and drives with a designed fall, this is the kit that removes the most guesswork.
Where it is not the right call
It is a red-beam unit, so in open sun you are receiver-dependent beyond close distances. The 35-pound listed weight with the hard case means two people for a comfortable carry, which is awkward for a single operator moving sites daily.
Working only to true level on a small pad, the extra slope capability is capability you will not use.
6. Bosch GRL2000-40HVK – Best Kit for Plumb and Layout Work
BOSCH PRO GRL2000-40HVK REVOLVE2000 Self-Leveling Horizontal/Vertical
1/16 inch at 100 feet
2000 ft range
Manual dual slope
IP56
Pros
- 1/16 inch accuracy at 100 feet over 2000 feet
- Manual dual slope on both X and Y axes
- Disturbance monitor flags position changes
- All-in-one hard case holds the whole crew
- Remote control enables one-person setup
Cons
- Lowest average rating here at 4.2 stars
- Smallest review base of the red-beam kits at 126
- 14 percent one-star share points to uneven accessory quality
Accuracy and completeness are this kit’s strong points. It holds 1/16 inch at 100 feet across a 2,000-foot working range, and the box contains the laser, LR20 receiver, BT160 tripod, 13-foot rod, remote control, wall mount, red target, glasses and a hard case.
Two features are unusual at this level. The RC4 remote lets one person set slope without walking back to the head, and the vertical 90-degree beam covers plumb, squaring and layout as well as horizontal work.
The disturbance monitor is the accuracy-protection feature, indicating when the tool position changes so a bumped head does not keep broadcasting a stale plane. Manual dual slope on both axes gives finer grade control than the electronic alternatives.
IP56 is respectable but it is the lowest weather rating here, so this is a head for ordinary outdoor conditions rather than one you abandon in a downpour overnight.
What we would flag is the review profile. At 4.2 stars from 126 reviews it has both the lowest average and the smallest sample of the red-beam kits, and a 14 percent one-star share is the highest in the group, pointing at uneven unit or accessory quality rather than a design fault.
When the Bosch kit is the right buy
Buy it when you want one instrument for grading and layout, particularly if you set posts, footings or fencing and do not want a second tool. The remote control and wall mount make it efficient for a single operator.
The all-in-one hard case also keeps the whole crew in one object, which is the same value argument that makes the Johnson kits attractive.
When to look elsewhere
If your site work is constant and daily, a higher-rated head with a longer warranty is the safer investment, and the one-star share here is a real argument for buying from a seller with straightforward returns. The IP56 rating is also the least weather-hardened in this roundup.
For heavy rain and full-season outdoor use, choose an IP66 head instead.

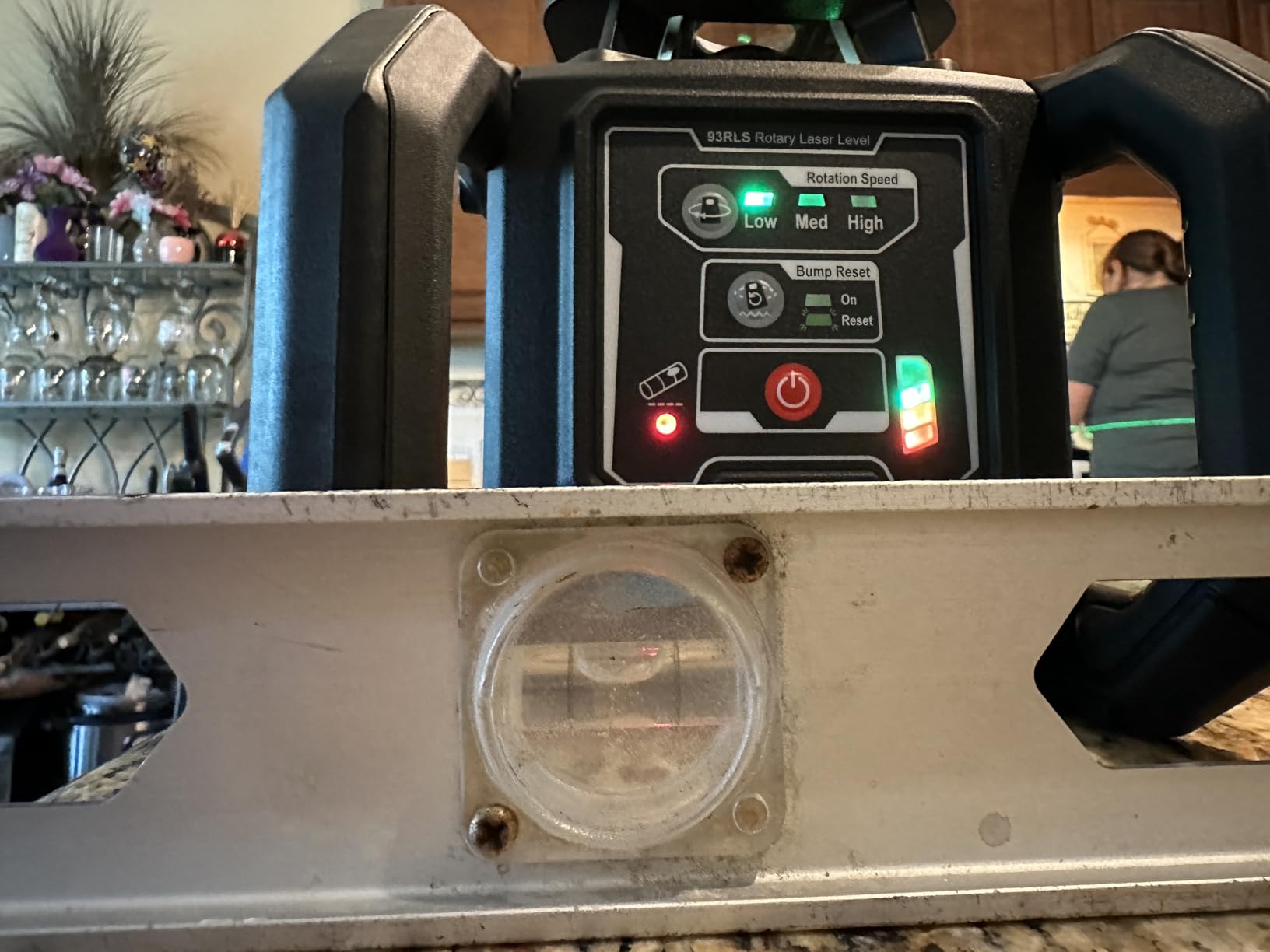

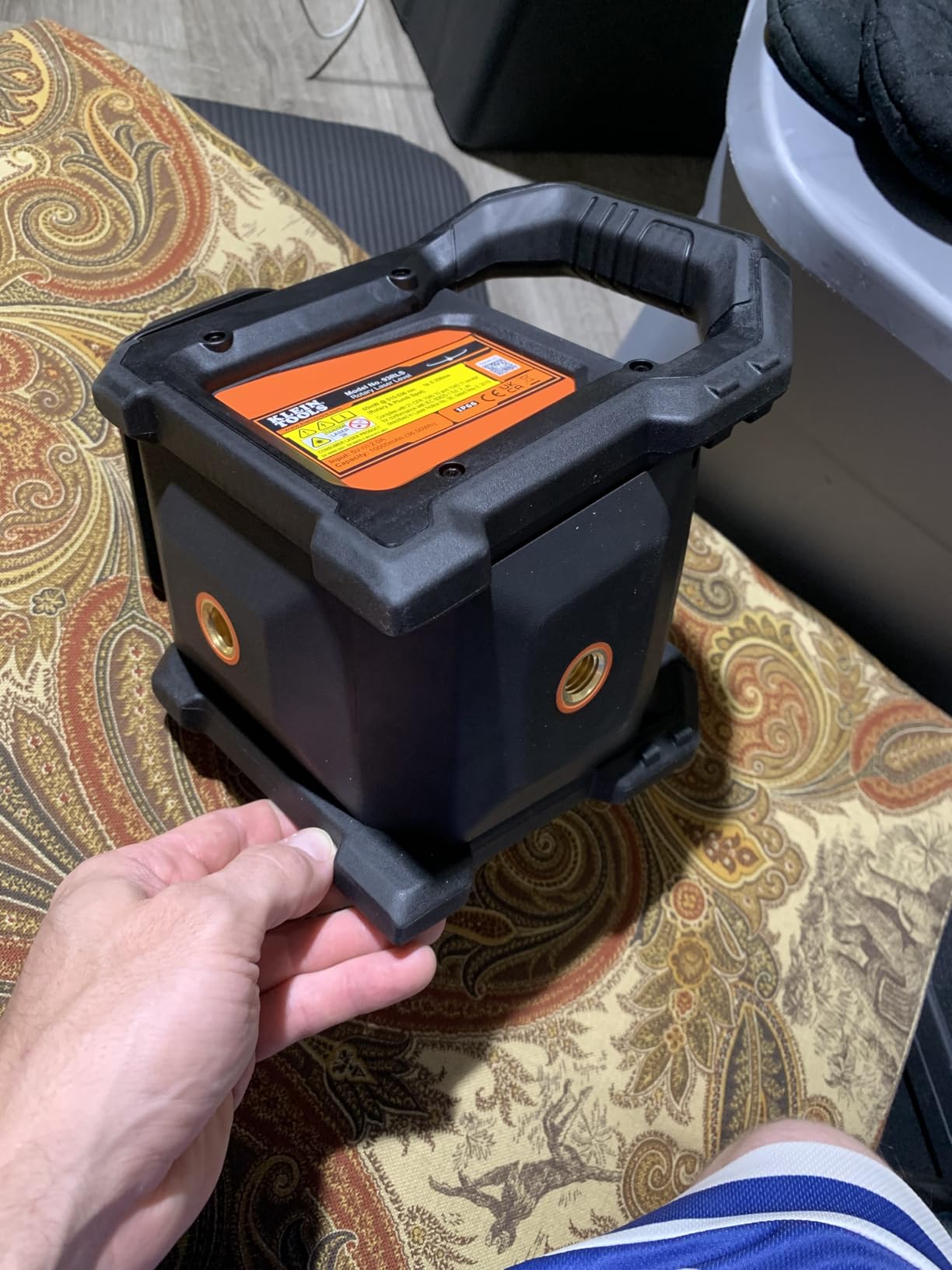

7. Klein Tools 93RLS – Best Green Beam Rotary Laser for Daylight Work
Klein Tools 93RLS Green Self-Leveling Rotary Laser Level Kit, 1150-Foot
Class 3R green beam
1150 ft with detector
24 hour runtime
USB-C rechargeable
Pros
- Green beam is markedly easier to see than red in daylight
- Rechargeable via USB-C with up to 24 hours runtime
- Plumb spot and 360 degree horizontal and vertical coverage
- Detector and tripod both have built-in levels
- Impact sensing pauses work if the unit is disturbed
Cons
- Only 38 reviews
- the smallest sample here
- Non-removable internal battery
- 9 foot grade rod is shorter than the 13 foot Johnson rods
Green is the correct answer to the most repeated question in this category, and this is the only green-beam kit we reviewed. A Class 3R green source at 5mW or less holds visibility in daylight far better than a red diode of the same class, and on a site with no receiver you can still work the beam directly for a good part of the day.
The stated range is 1,150 feet with the included detector, and at least one owner verified accuracy at roughly 750 feet in a residential yard. The kit ships with the laser, tripod, detector, a 9-foot grade rod and a case.
Two details make it pleasant to own. The built-in non-removable battery charges over USB-C and runs up to 24 hours, which removes disposable batteries from a tool that lives in a hot truck. Impact sensing pauses operation if the unit is knocked, protecting both your reading and your setup time.
The plumb spot and 360-degree horizontal and vertical coverage mean the same head handles layout as well as level work, and both the handheld detector and the tripod carry their own bubble levels.
When the green beam is the deciding feature
It is the deciding feature when you work alone outdoors and do not want to walk the beam with a rod, or when your site has bright ambient light and you need to spot the beam quickly. For fencing, decking and small-to-mid pads, visibility beats raw range.
It is also the most straightforward kit to keep going with, because one rechargeable pack replaces a shelf of disposable cells.
Where the Klein falls short
The evidence base is thin at 38 reviews, the smallest in this roundup, and a 10 percent one-star share includes a strongly negative outlier, so treat the settled-owner consensus as weaker here than elsewhere. The internal battery is non-removable, which makes long-term longevity unproven.
The 9-foot grade rod is also shorter than the 13-foot rods on the Johnson kits, and 1,150 feet of range will not cover an acreage job from one set-up.
8. Johnson Level 99-026K – Best Rotary Laser for Compact Lots and Small Pads
Johnson Level & Tool 99-026K Self-Leveling Horizontal Rotary Laser System w/ Hard Case Kit, 50 x 14.5″, Red, 1 Kit,Orange
800 ft working diameter
200 to 600 RPM
NiMH pack plus AA backup
3 year warranty
Pros
- Accurate and stable for footings formwork and fill
- Charge lasts at least a full working day
- Variable rotation speed tunes to conditions
- Holds up in rain bright sun and cold mist
- Locking pendulum protects the mechanism in transit
Cons
- Grade rod does not hold its extension
- Red beam is not the brightest outdoors
- Detector is cheaply made

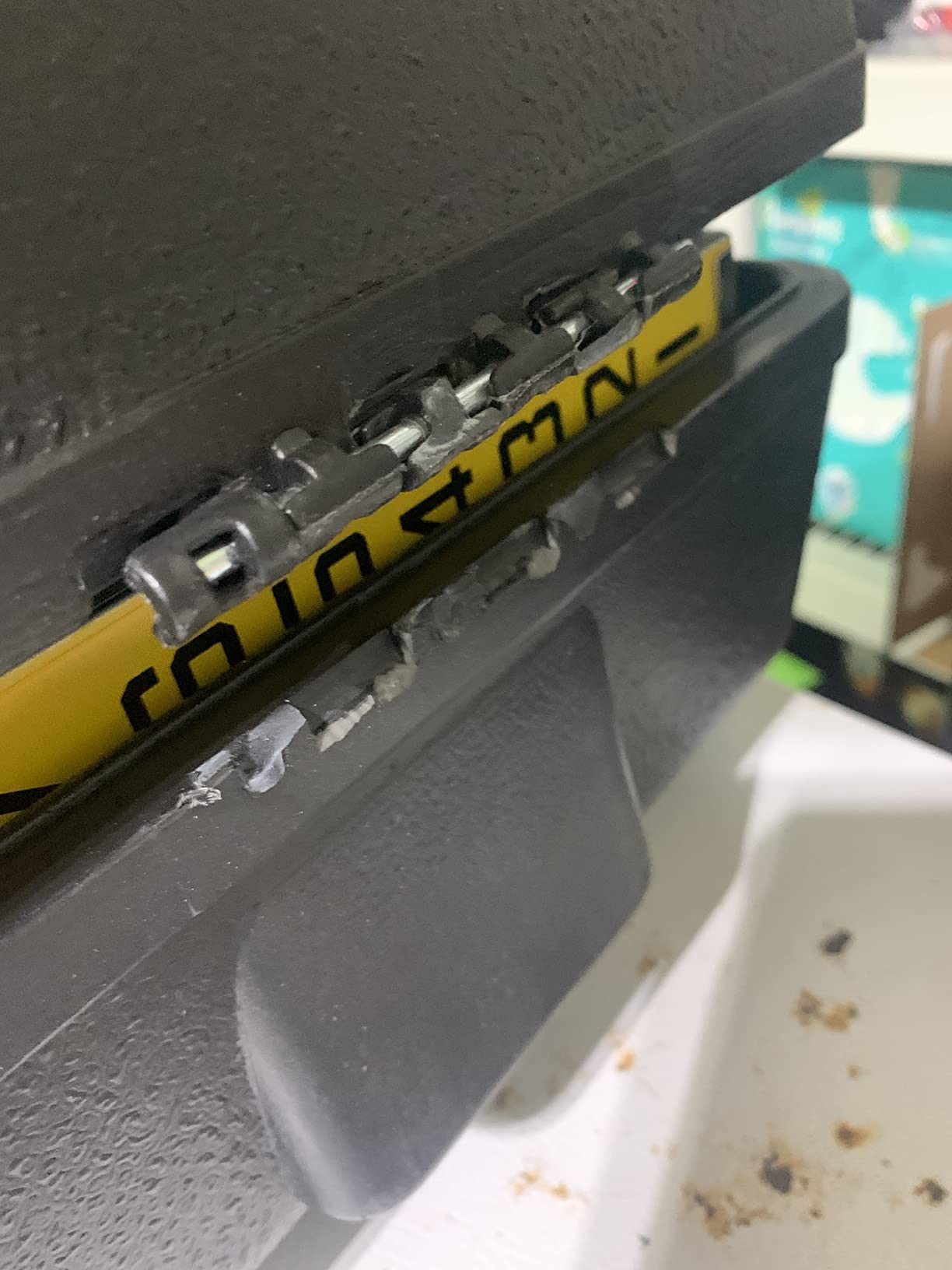

- Case is roughly 4 feet long
This is the smallest working diameter in the roundup at 800 feet, and on a compact lot or a single residential pad that is not a limitation. Owners report taking elevations across a full acre and holding accuracy through footings, formwork and fill compaction.
At 4.3 stars from 435 reviews it is well used, and the 68 percent five-star share with an 8 percent one-star group points at a reliable tool with a couple of soft components rather than a faulty one.
The variable rotation speed from 200 to 600 RPM is more useful than it appears. On a bright or dusty site, spinning faster spreads the energy and makes the beam easier to catch on the rod, which is a cheap way to improve daylight performance without changing hardware.
Power is flexible, running on the included NiMH pack or on AA batteries, and the locking pendulum compensator protects the internal mechanism in transit. Reviewers confirm it survives pouring rain, hard sun and cold mist.
When the 99-026K is the sensible choice
It is the sensible choice when your work stays inside an 800-foot radius, which covers most single-property jobs, small pads and formwork. The variable speed and dual battery options make it adaptable to long days away from a charger.
Owners frequently cite saving on surveyor fees by taking their own elevations, which is where most of the value in this category actually lands.
Where it will frustrate you
The most-reported complaint is the telescoping grade rod not holding its extension, which turns into a real grade error if you trust it. The detector is also described as cheaply made compared with the rest of the kit, and the red beam needs targets in open sun.
The roughly 4-foot case is bulky in a pickup bed, and 800 feet will not cover a large site from a single set-up.
Buying Guide: Choosing a Rotary Laser Level for Outdoor Work
Green or red beam: which colour works outside
Green is the better beam colour for outdoor use, because a green source of the same power class stays visible to the eye far longer in daylight than a red one, and it is the only one of the two you can work without a receiver beyond close range. Red remains the standard on professional kits because the diodes, detectors and replacement parts are cheaper and far more widely serviced.
In practice, both colours are read through a receiver once you are past roughly 100 feet. The difference shows up in the first hour of the morning and whenever a crew member needs to find the beam without walking the rod. Red-tinted laser glasses help enormously with a red beam and do nothing for a green one.
Accuracy and range: how error grows with distance
Accuracy is quoted per 100 feet and scales close to linearly, which is the calculation most buyers never do. A unit rated at 1/8 inch per 100 feet carries about 5/8 inch of error at 500 feet, 1.25 inches at 1,000 feet and 2.5 inches at 2,000 feet. A 1/16 inch unit roughly halves all of those, landing near 1.25 inches at 2,000 feet.
That is why range is not a bigger number but a smaller one when accuracy matters. If your critical measurement happens at 400 feet, a 1/16 inch head at 2,600 feet is a better tool than a 1/8 inch head at the same distance. Also check whether a range figure is quoted with a receiver or is bare-beam and therefore largely theoretical.
Single-axis or dual-axis slope
Choose single-axis when you only ever work to true level, such as footings, formwork and flat slabs. Choose dual-axis, meaning manual or electronic slope on both X and Y, whenever a job specifies a percentage fall.
Drainage, swales, French drains, driveway aprons and any hardscape with a designed fall need two axes. A single-axis unit can produce one fall and you can rotate the head, but you re-set and re-shoot for the second direction, which is where setups get lost. A programmable 5 degree dual-slope head removes that step entirely.
IP rating, batteries and the rest of the kit
An IP66 rating means dust-tight and protected against powerful water jets, which is the standard you want for a head that lives outdoors through a season. IP54 protects against splashing water only, and IP56 sits between the two. The rating to check most carefully is often the receiver’s, since the receiver is the part that lives in the weather.
On batteries, a rechargeable NiMH pack that runs a full working day beats disposable cells over years of daily use, and a platform laser that runs the batteries you already own removes a whole charging ecosystem. Ratings quoted without a receiver are a laboratory number, so budget for a tripod, a grade rod and a detector even when a kit appears complete.
Frequently Asked Questions
What is the best rotary laser level for outdoor use?
The Topcon RL-H5A is the best all-round choice for outdoor leveling, combining 1/16 inch accuracy at 100 feet with a 2,600-foot working diameter and an IP66 housing. For value, the Johnson 99-027K arrives as a complete kit with tripod, 13-foot rod and detector. If you work the beam yourself in daylight rather than reading a receiver, a green-beam kit is the more practical tool.
Is green or red laser level better for outdoor use?
Green is better for outdoor visibility because a green source of the same class stays visible in daylight far longer than a red one, and it can be read without a receiver at moderate distances. Red remains standard on professional kits because the optics, detectors and service parts are cheaper and more widely available.
Do I need a laser receiver for outdoor work?
Yes. Past roughly 100 feet in open daylight a rotary laser beam is effectively unreadable by eye, and the beam receiver mounted on a grade rod is what turns the rotating plane into a number you can mark. Treat the receiver, tripod and grade rod as mandatory equipment rather than optional accessories.
How accurate is a rotary laser level at long distance?
Accuracy is quoted per 100 feet and scales roughly linearly. A unit rated at 1/8 inch per 100 feet drifts to about 5/8 inch at 500 feet, 1.25 inches at 1,000 feet and 2.5 inches at 2,000 feet. A 1/16 inch unit halves those figures, landing near 1.25 inches at 2,000 feet.
Are rotary laser levels waterproof enough for outdoor jobsites?
Most are. An IP66 rating means dust-tight with protection against powerful water jets and is what you want for a head left outdoors through a season. Check the receiver’s rating as well, because the receiver is the component that is repeatedly exposed to rain and dust while the head often sits under a tripod.
Which Rotary Laser Level Should You Buy in 2026
The Topcon RL-H5A is the best rotary laser level for outdoor leveling in 2026 for anyone who wants one set-up to cover a whole site at 1/16 inch accuracy. Buy the Johnson 99-027K if you want a complete kit on day one without a second purchase, and the Johnson 99-028K if your work includes drainage fall. For bright-day solo work, the Klein green beam is the one you can actually see.
Whatever you choose, budget for the receiver, tripod and grade rod, because the head on its own will not get you out of the truck.
