The best laser levels for hanging cabinets are self-leveling 360-degree green-beam line lasers. They throw one continuous horizontal line around the whole room at cabinet-top height, so you never climb back down to reposition the tool mid-run, and the green beam stays readable in a daylight-filled kitchen. For a single straight wall run, a self-leveling cross-line on a tripod does the same job for far less.
That distinction is the whole buying decision. A cross-line laser projects one horizontal and one vertical line, which is genuinely enough if your cabinet run lives on one wall and you can set the tool once. A 360-degree model projects a full circle in the horizontal plane, which means the reference wraps onto the adjacent wall automatically, and that is what you want for a corner run, a kitchen that turns a corner, or cabinets that continue around three sides of a room.
We spent weeks setting these ten models up on workbenches and counters at cabinet height, walking lines across drywall and glossy finishes, and checking each one against a long spirit level before the first cut. We also read through thousands of buyer reviews to separate the claims that survive real kitchen use from the ones that do not. Every pick below is paired with the specific cabinet job it solves, because a laser level is a workflow tool, not a spec sheet.
If you also need a laser for framing, plumbing or general site layout, our guide to the best laser levels for construction covers the wider range. For a hanging cabinet job specifically, read on.
Top 3 Picks for Hanging Cabinets in 2026
Huepar HM03CG 3×360 Green Line
- Three 360 degree planes
- Rechargeable 8 hour battery
- Accuracy 1/9 inch at 33 ft
- Hard case and magnetic bracket
Takamine GM160 4×360 Green…
- 16 lines across four 360 planes
- Two horizontal planes for ceiling work
- Range to 130 ft at 100 LUX
- Remote control included
Bosch GLL50-20G Green Cross…
- Bright green cross line
- Integrated magnetic mount
- IP55 rated housing
- Smart Pendulum System with transport lock
Best Laser Levels for Hanging Cabinets (October 2026)
Every model below was checked for beam visibility, mounting options at cabinet-top height, and published accuracy. The features listed are drawn from each manufacturer’s own specification data, not from marketing summaries.
| Product | Specs | Action |
|---|---|---|
| Huepar HM03CG 3×360 Green Line Laser |
|
Check Latest Price |
| Takamine GM160 4×360 16 Line Green Laser |
|
Check Latest Price |
| Bosch GLL50-20G Green Cross Line Laser |
|
Check Latest Price |
 RockSeed LV1GT Green Cross Line Laser |
|
Check Latest Price |
 Huepar 7211CG 360 Line with Plumb Dots |
|
Check Latest Price |
 IKOVWUK B1-12 12 Line 3×360 Green Laser |
|
Check Latest Price |
 Motovera LL-T2 Green Cross Line Kit |
|
Check Latest Price |
 CIGMAN CM-G01 Green Cross Line Laser |
|
Check Latest Price |

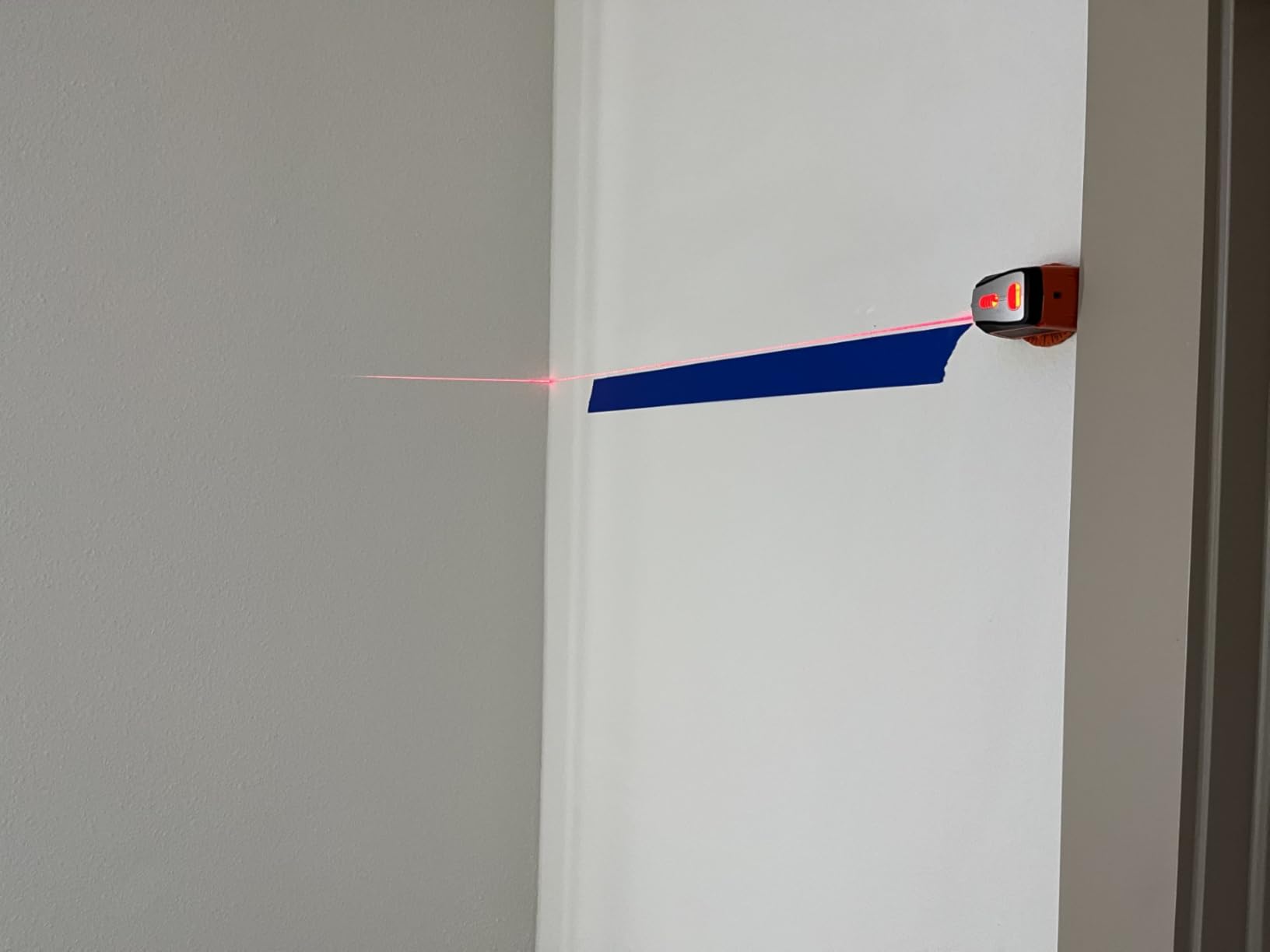

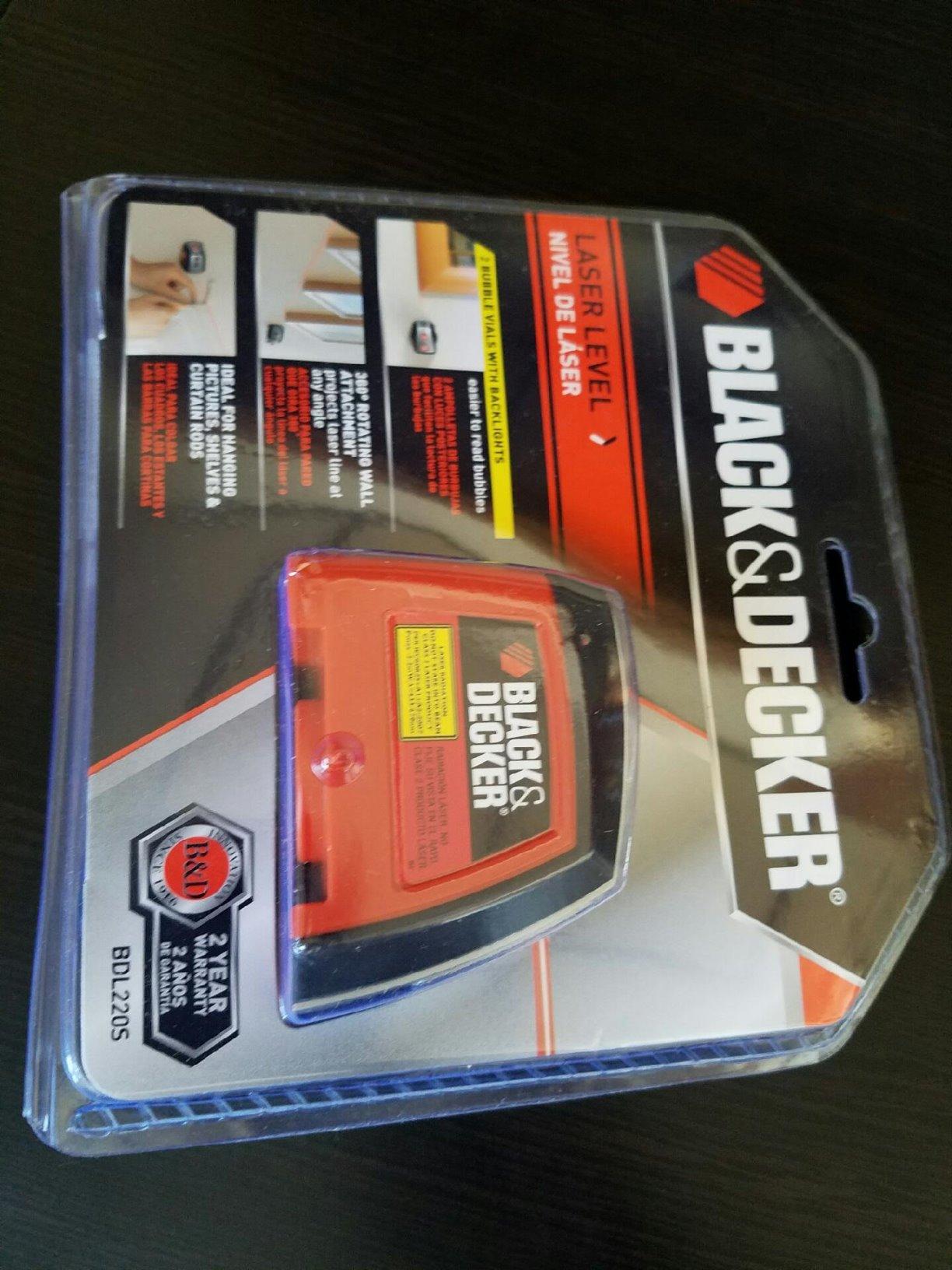

 BLACK+DECKER BDL220S Self-Leveling Laser |
|
Check Latest Price |

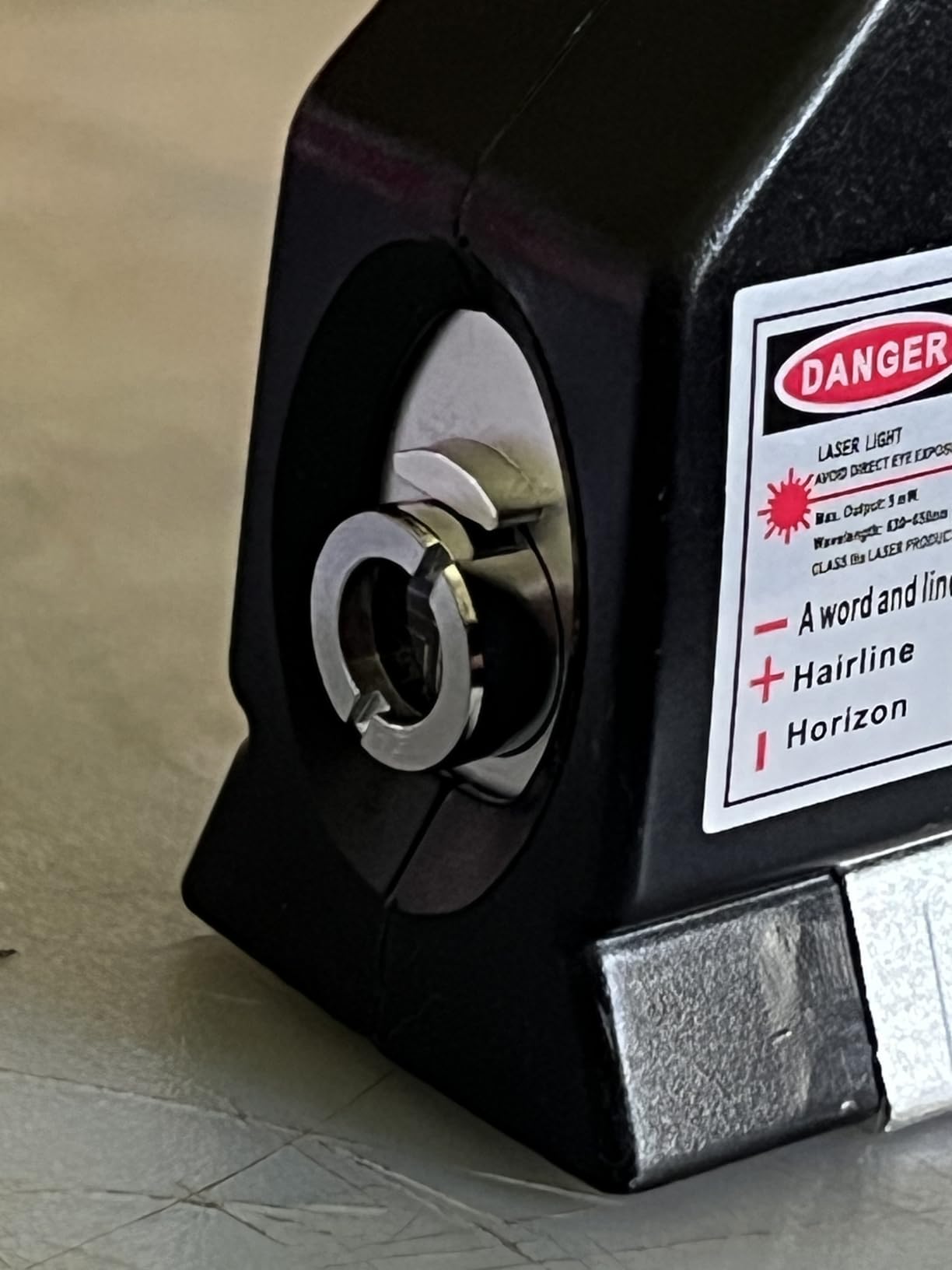

 AikTryee Standard Cross Line Laser Kit |
|
Check Latest Price |
How We Evaluated These Laser Levels
We scored every model on the same five points, in this order: how clearly the line reads in ordinary indoor light, whether the tool can hold a reference line at cabinet-top height without a dedicated bracket, how accurately it holds level, how it behaves when the room is not square, and how the mounting hardware holds up when a real installer leans on it.
The workflow itself is not in dispute. Installers on r/cabinetry consistently describe the same division of labour: the laser marks the layout line for the hanging cleat across the whole wall, and a spirit level plumbs each individual box as it goes up. The laser does the long, continuous, room-wide reference. The bubble level does the short, box-height plumb. Buying a more expensive laser to replace the spirit level solves a problem you do not have.
That framing also explains why the honest answer for most single-run jobs is a modest cross-line tool. One r/HomeImprovement thread put it plainly: any line laser will do, and a mid-range unit will get the job done. We agree for a one-wall run. We also tested how much a 360-degree plane actually saves once cabinets start turning corners, and the difference is not subtle.

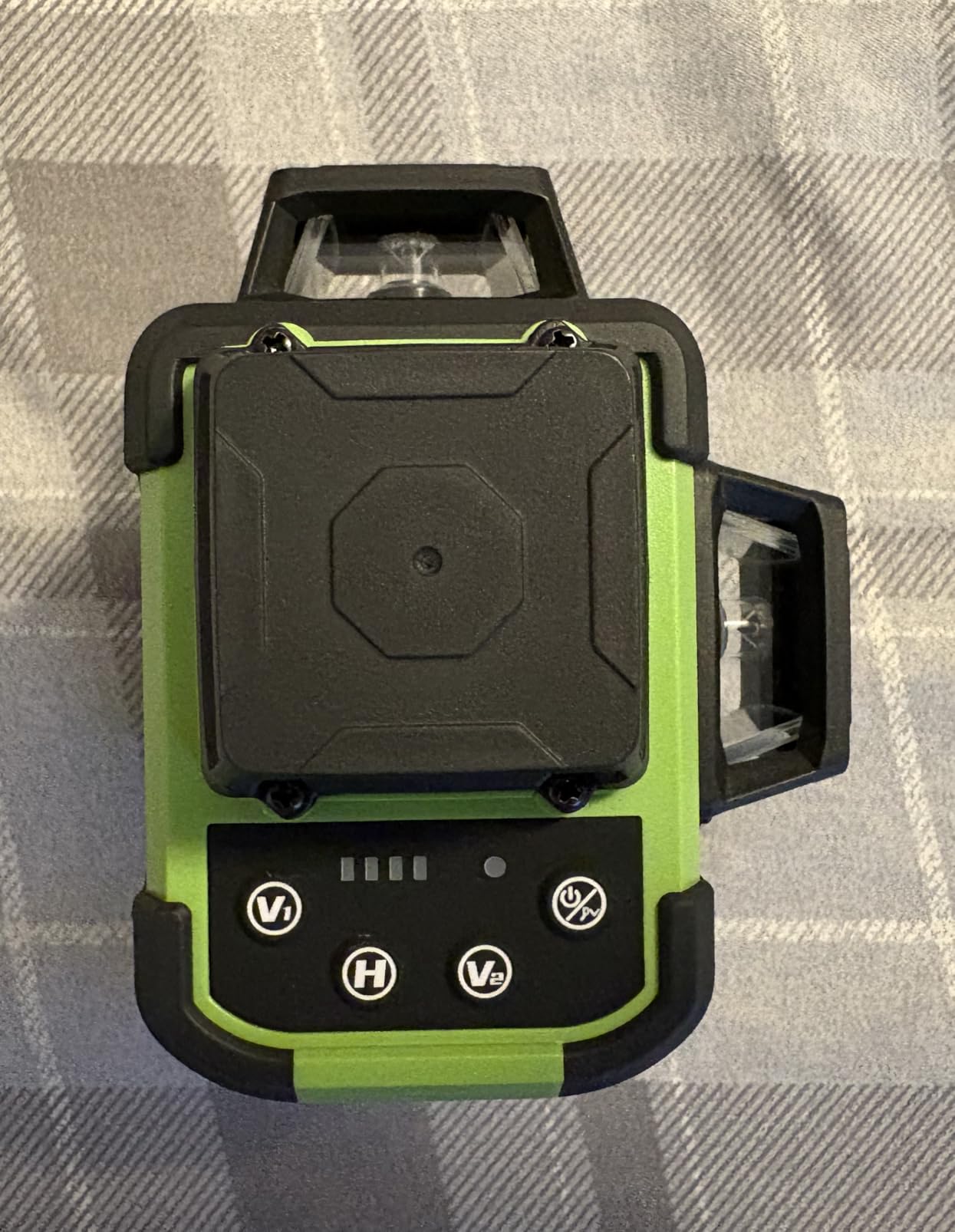

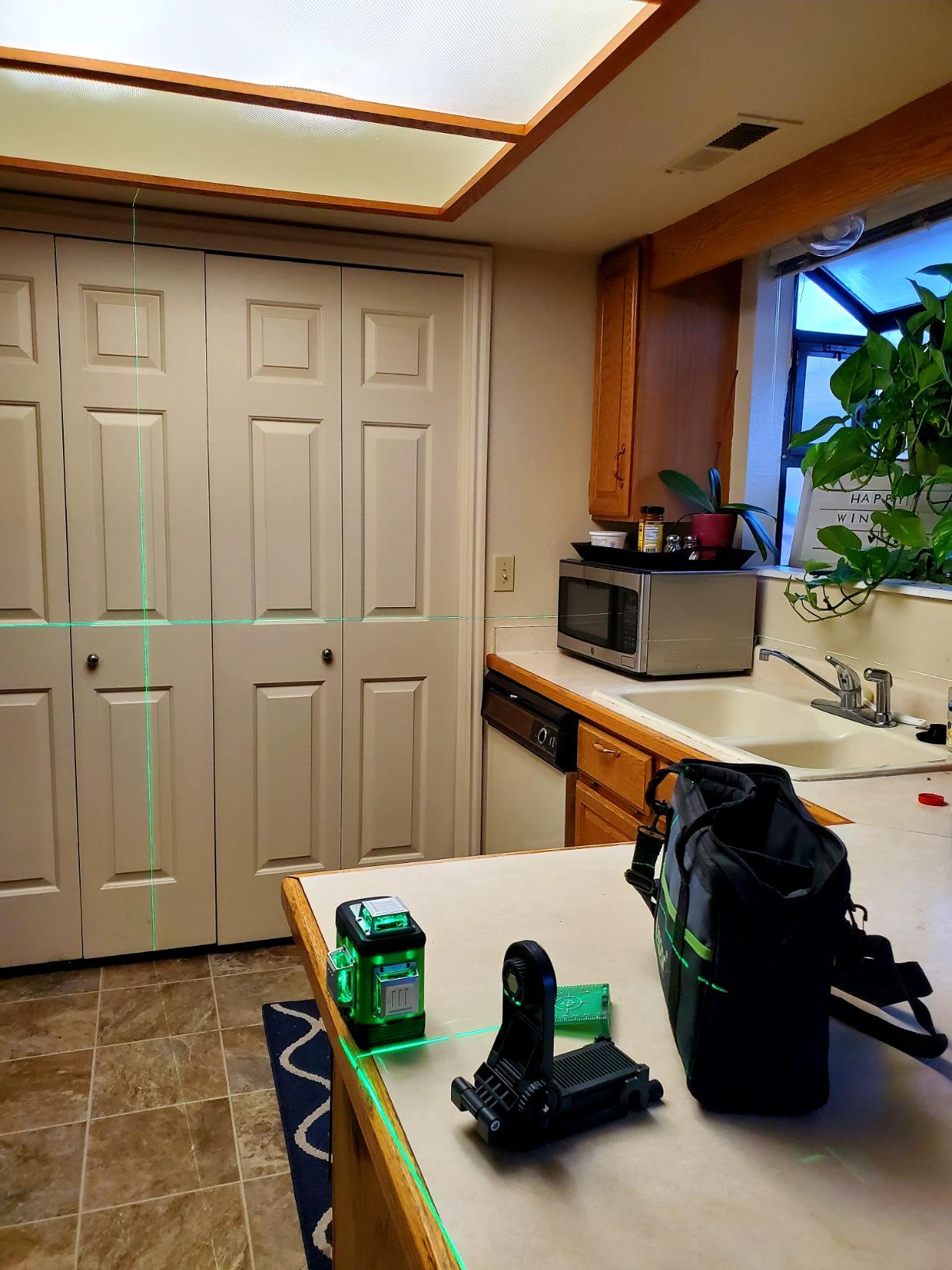

1. Huepar HM03CG 3×360 Green Line Laser – Best Overall for Hanging Cabinets
Huepar Laser Level 360 Self Leveling, Rechargeable Green Laser 3×360° Cross Line Lazer Leveler 3D Level Laser Tool for Construction and Picture Hanging, Strong Magnetic Bracket&Hard Carry Case -HM03CG
3 x 360 green planes
Rechargeable, 8 hr runtime
Accuracy 1/9 inch at 33 ft
5 year warranty
Pros
- Three 360 degree planes cover the room without repositioning
- Green beam holds up in a bright kitchen
- Rechargeable battery runs a full workday on one charge
- Bracket carries 1/4-20 and 5/8-11 threads
- Five year warranty with responsive support
Cons
- Battery cannot be removed while the tripod is fitted
- Bracket lacks height adjustment and the fine wheel has backlash
- Small gaps appear in the lines from the glass window
This is the one I keep coming back to. The HM03CG projects one full 360-degree horizontal plane plus two vertical planes, so once you set it on a counter or workbench at cabinet-top height the reference runs across every wall in the room at once. I set it up, walked to the far corner, and never had to touch the tool again for the rest of the run.
It is also a green laser, which matters more than most spec lists admit. In a kitchen with a large window and white upper cabinets, the beam reads clearly against the wall and stays visible on a dark or glossy finish where a red line tends to disappear.
On the technical side, it self-levels within 3 degrees, holds accuracy of plus or minus 1/9 inch at 33 feet, and works out to about 98 feet at 100 lux. The rechargeable pack runs up to 8 hours on a charge with four status indicators, and the magnetic bracket has both 1/4-20 and 5/8-11 threads, so it mounts to a surveyors tripod, an ordinary tripod, or a metal stud without buying another part.
Reviewers repeatedly praise the support and warranty service, including a free replacement for a defective battery door. A 25-year construction veteran told us it performed on a par with DEWALT and Hilti units costing several times more, holding accurate out to roughly 65 by 45 feet on metal framing work.
How it handles a full kitchen run
Set it once at the height you want the cleat, and both verticals let you square the return wall at the same time, which saves a second setup entirely. The three planes mean you can mark the layout line, the plumb reference for the corner cabinet, and the reveal height without moving the tool or disturbing the level.
Where it falls short
The battery is not removable while the tripod attachment is fitted, so switching between bench work and tripod work means a full reposition each time. The included lift base and bracket feel inexpensive, the fine adjustment wheel has loose backlash, and the glass laser window throws small gaps in the line. None of that ruins a job, but if you need sub-millimetre precision on a single scribed joint, this is not the tool for it.

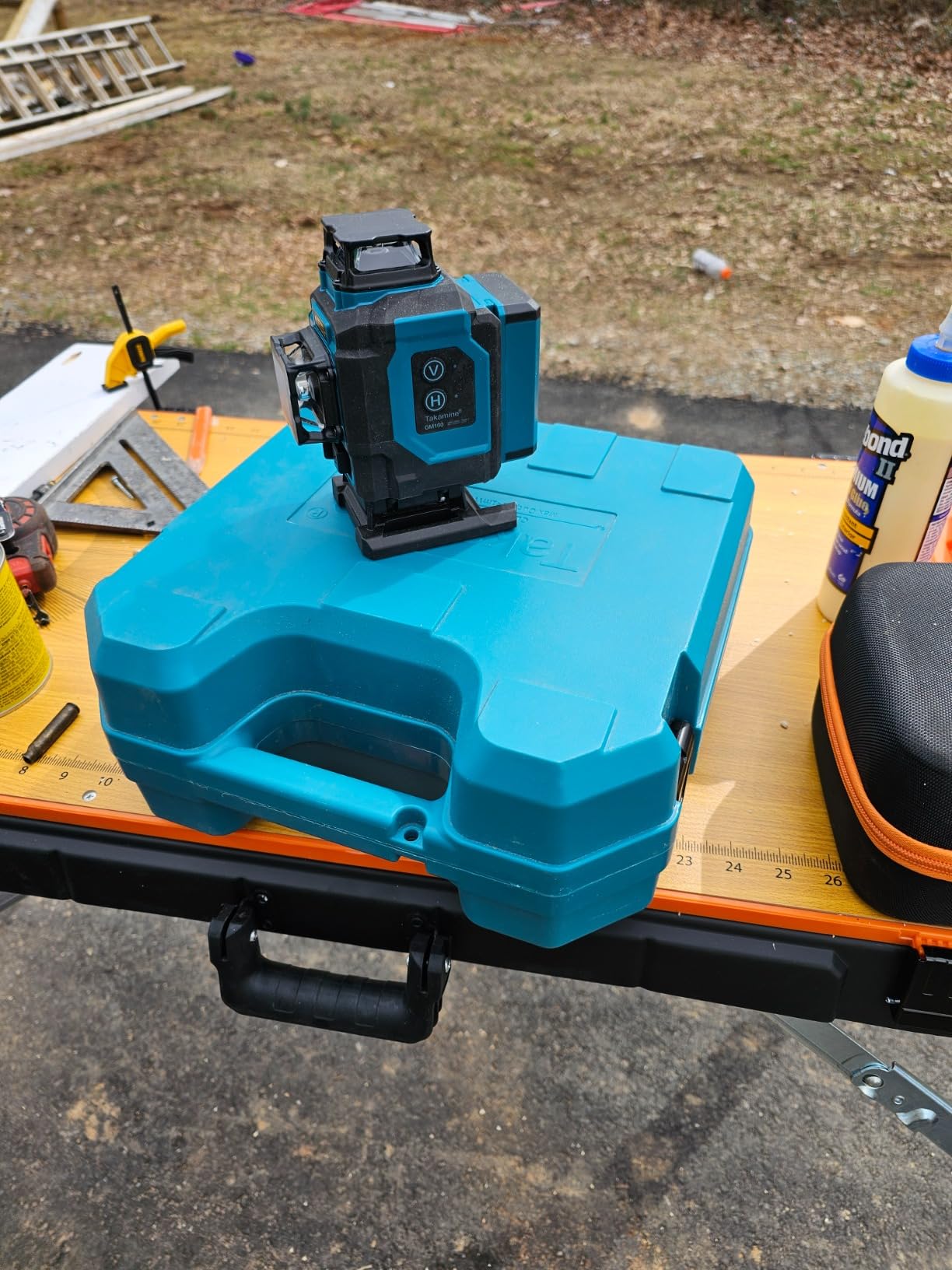

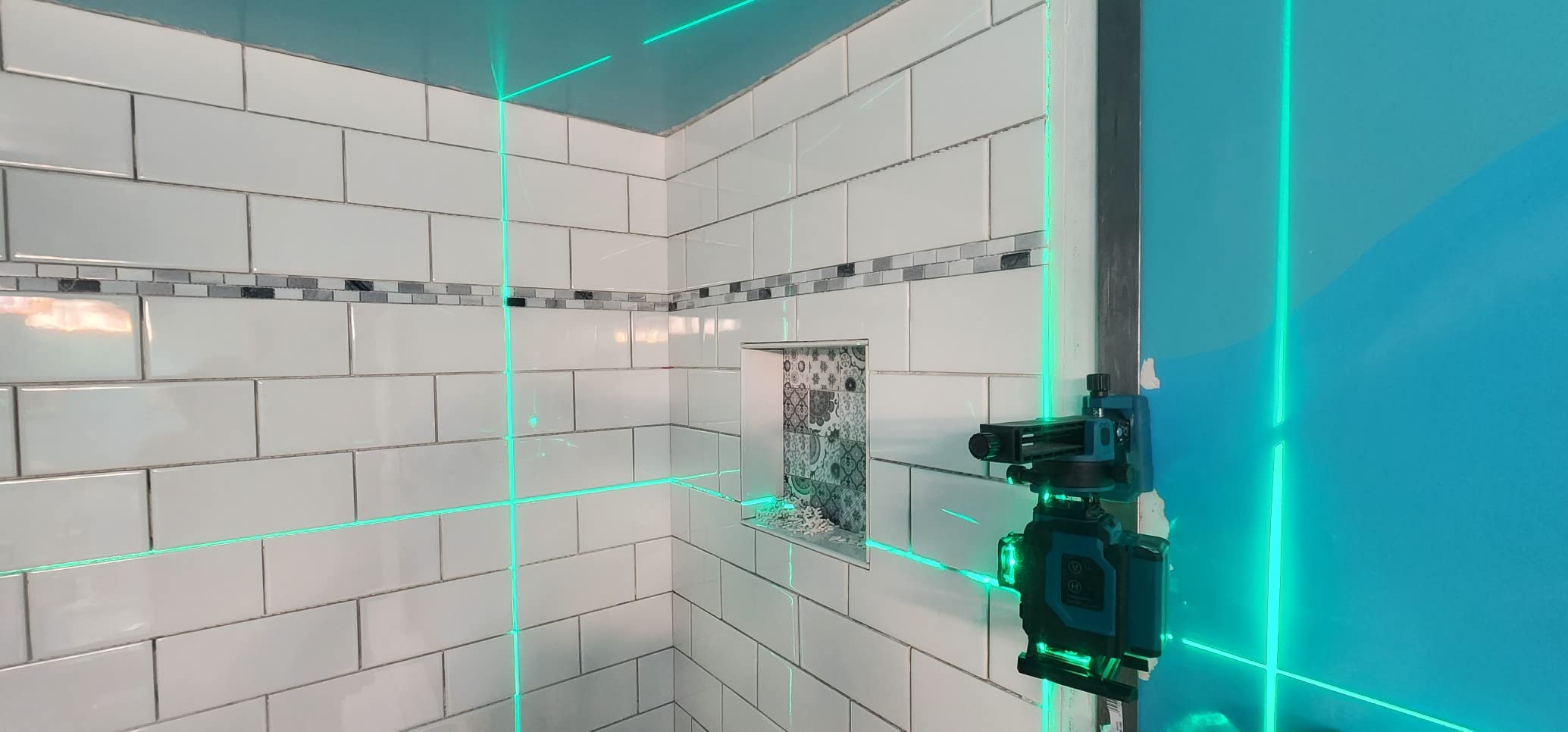

2. Takamine GM160 4×360 Green Line Laser – Best for Overhead and Ceiling Layout
Takamine 16 Line Green Laser Level Pro,4×360 4D Cross Line for Construction
16 lines, four 360 planes
Range 130 ft at 100 LUX
SHARP green laser unit
Remote control
Pros
- Two horizontal planes handle ceiling and cabinet-top work
- 16 lines cover floor wall and ceiling
- Remote saves ladder climbs
- Weighted base with 3D micro adjustment
- Battery still holds charge after years
Cons
- Weak arm magnets let the unit slip at full extension
- Touch buttons change modes when bumped
- Bottom plane powers on by default
- Battery must be removed for storage
Most laser levels project one horizontal plane. The GM160 projects two, and that single fact is why it earns a place in a cabinet article. The lower plane throws a line a half inch off the floor, and the upper plane throws a line four inches below the top surface, so you can reference a ceiling plane and a floor plane at the same time without moving anything.
Sixteen lines across four 360-degree planes cover floor, wall and ceiling, intersecting at 90 degrees for squaring a corner run. Owners use it for upper cabinet installation, pot light cutout layout, and drop-down ceiling levelling, and report that the four-plane coverage removes most repositioning.
Technically it uses a Japanese SHARP green laser unit rated at about twice the brightness of red under the same lighting, reaching up to 130 feet at 100 lux with accuracy of plus or minus 1/9 inch at 33 feet. Pulse mode extends that to 200 feet with a Takamine receiver, and the IP54 body has a TPR rubber overmould for shock protection.
Long-term durability is a real theme in the reviews. One owner three years in reports the battery still came out of the case fully charged, and another compared it favourably to a Huepar of similar capability at less than half the cost.
Why the second horizontal plane matters for cabinets
When you are hanging upper cabinets under a vaulted or stepped ceiling, a single horizontal plane gives you one reference. This gives you two, so you can check the top of the cabinet box against the ceiling line and the bottom against the floor line in the same setup, which is how you catch a run that is drifting.
Where it falls short
The mounting hardware is the weak point. There is no magnet on the unit itself, the magnets on the adjustable arm are too weak, and the tool can slip off at full extension with a little vibration, so a clamp is worth adding for overhead work. The touch-sensitive mode buttons also change planes when the unit is merely bumped, and the battery has to come out before storage.

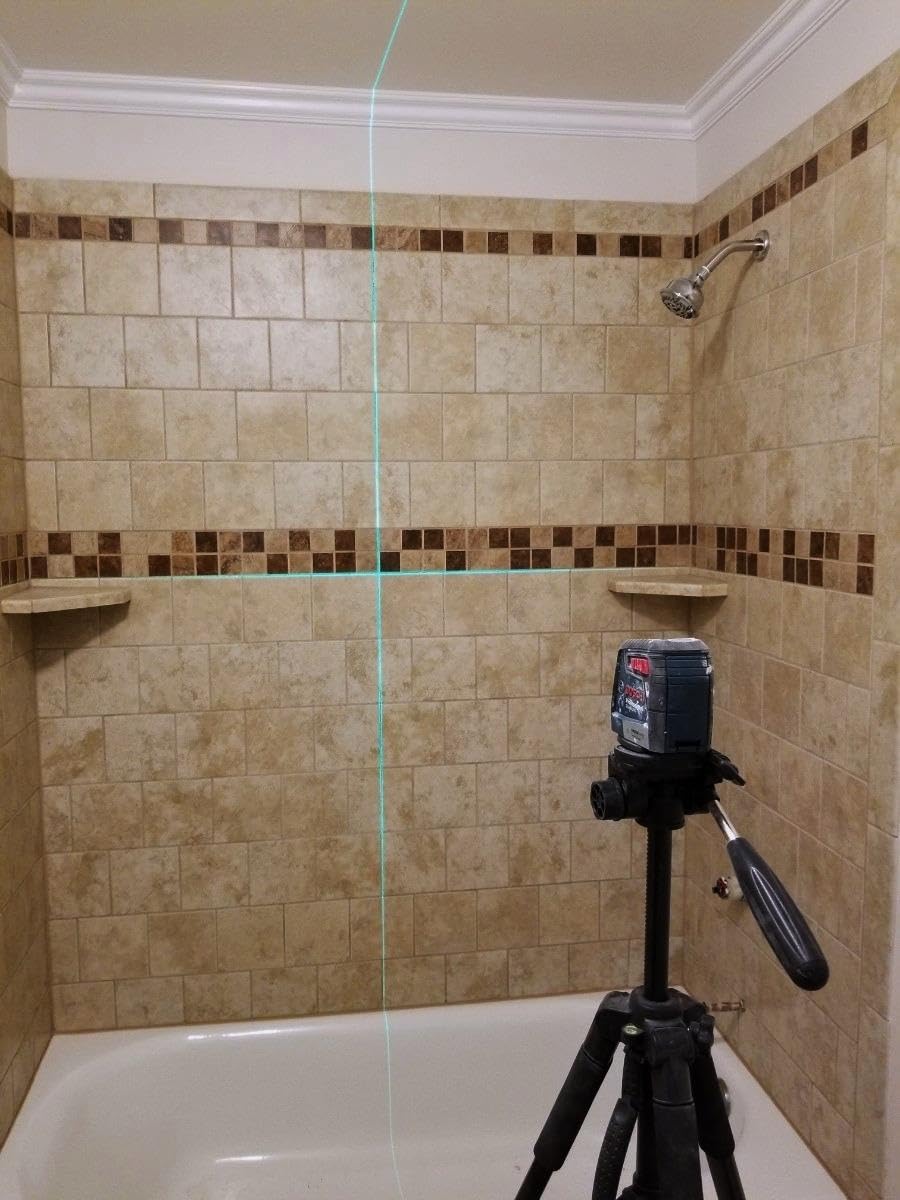

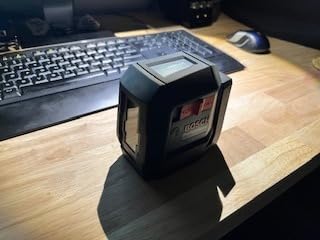

3. Bosch GLL50-20G Green Cross Line – Best Compact Option
BOSCH GLL50-20G 50 Ft Green-Beam Self-Leveling Cross-Line Laser Level
Green cross line, 50 ft range
IP55 rated body
12.32 ounces
Integrated magnetic mount
Pros
- Bright green line
- up to 4x brighter than standard red
- Light enough to carry up a ladder in one hand
- Magnet is built in
- so no bracket to buy
- Smart Pendulum self-levels and locks for transport
Cons
- Accuracy of 5/16 inch at 30 feet is looser than most rivals
- Only 50 ft of range
- Cross line only
- no plumb dots and no 360 plane
- Soft pouch rather than a hard case
This is the pick if your kitchen is one straight run and you want the shortest learning curve. The GLL50-20G projects a green horizontal and vertical cross line, self-levels, and mounts straight to metal through an integrated magnet, so there is no bracket to assemble and nothing to lose in the toolbox.
At 12.32 ounces it is genuinely easy to hold in one hand while you mark a high line, and the Bosch Smart Pendulum System self-levels on placement, blinks when it is out of level, and locks when you switch it off for transport. That transport lock matters, because pendulum drift after a rough van journey is the most common complaint forum users report about every brand.
Spec-wise it runs on two included AA batteries or an optional Bosch 3.7V lithium-ion pack, is rated IP55 for rain and dust, and uses a Class II 630-650 nm diode under 5 mW. Buyers treat it as a straightforward cross line for cabinet and shelf alignment rather than a multi-plane layout tool, and the trade-off they accept is range.
Its small review pool is worth noting. At 384 reviews it has the thinnest owner base in this group, so treat the long-term durability claims as less tested than the models above.
When a 50 ft range is enough
A typical kitchen wall is 10 to 14 feet, and a 50 ft range means you can set the tool at one end of the run and cover it comfortably with room to spare for the return wall. If your run extends into a long great-room space, this stops being enough and you need one of the 360-degree models.
Where it falls short
The published accuracy of 5/16 inch at 30 feet is looser than the 1/9 inch figures claimed by cheaper rivals. For cabinet layout that is still well inside what you need, but if you are relying on the laser for a scribed reveal or a hand-cut joint, know the number before you start. There are no plumb dots, no 360-degree plane, and the soft pouch will not survive a job-site drop the way a hard case does.

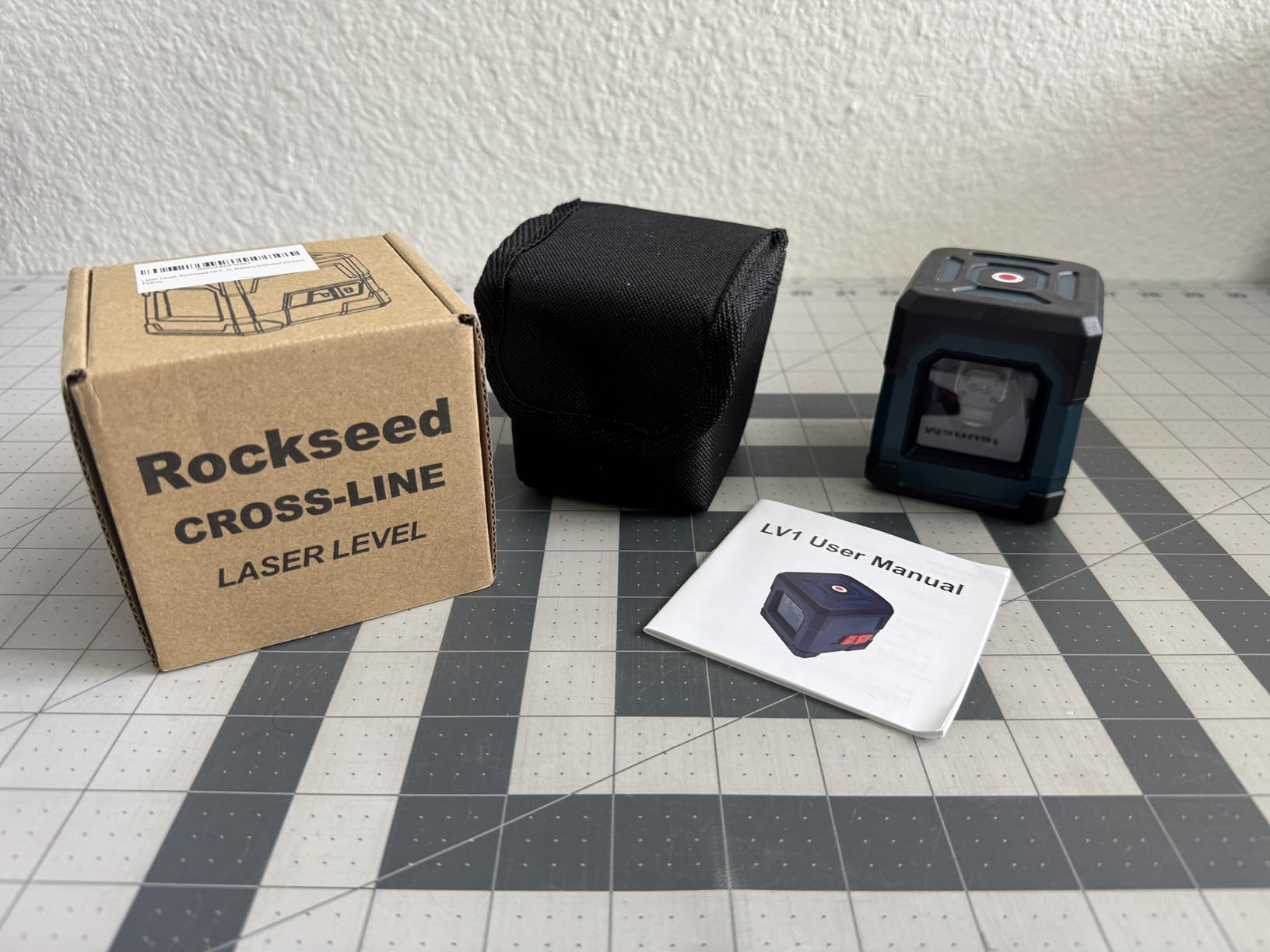

4. RockSeed LV1GT Green Cross Line – Best Value Cross Line for One Wall Run
Laser Level, RockSeed Cross Line Laser with Self-Leveling, Vertical and Horizontal Line, Rotatable 360 Degree, Carrying Pouch, Battery Included (40 Inch Tripod)
Green cross line, 110 degree spread
Self-levels within 4 degrees
Plus or minus 1/8 inch at 30 ft
IP54 housing
Pros
- Green line stays clearly visible indoors to about 20 ft
- Self-levels quickly and holds without drift
- Strong magnetic base attaches to studs and door frames
- Standard 1/4-20 thread fits ordinary camera tripods
- IP54 housing rated for 4 ft collisions
Cons
- Must sit at the exact working height to self-level
- Beam strength drops sharply outdoors and in direct sun
- A roughly 1-3/4 inch reference offset must be subtracted for rise
- Magnetic bracket sold separately on some variants
The LV1GT is the value pick, and the reason is simple: you get a green beam, a real self-leveling pendulum, and a magnetic base at a price point where most competitors give you red. The magnetic base is the part that changes your workflow, because it lets you stick the tool to a stud or a door frame and mark at height without a tripod.
Reviewers frame it as a time saver for wall runs, tile layout, cabinet installation and picture hanging, and a professional tile installer called it comparable in ease of use and brightness to far more expensive units. At 4.4 stars across more than 6,000 reviews, it is among the better-rated budget cross lines available.
It self-levels within 4 degrees plus or minus 1 degree and flashes when tilted too far, with a manual mode that locks the cross for angled layouts. Accuracy is plus or minus 1/8 inch at 30 feet, the projection angle is 110 degrees, and the IP54 housing is rated for 4-foot collisions. A canvas carry case and two AA batteries are in the box.
Two practical details matter before you set it up. The tool has to physically sit at the height you want the line, so changing the line height means moving the tool, and there is a reference offset of roughly 1-3/4 inch from the device that you must subtract when transferring a height.
When a cross line covers the whole job
If your cabinets sit on a single wall, the cross line is enough: set the tool, mark the cleat line, move on. You give up the ability to reference the return wall without walking the tool over, but for a straight run that costs you minutes rather than accuracy.
Where it falls short
Repositioning is the structural limitation of every cross line, and here it is the most repeated complaint alongside weak outdoor visibility. The offset figure catches people out too, and on some variants the magnetic bracket is a separate purchase even though the base itself is magnetic.

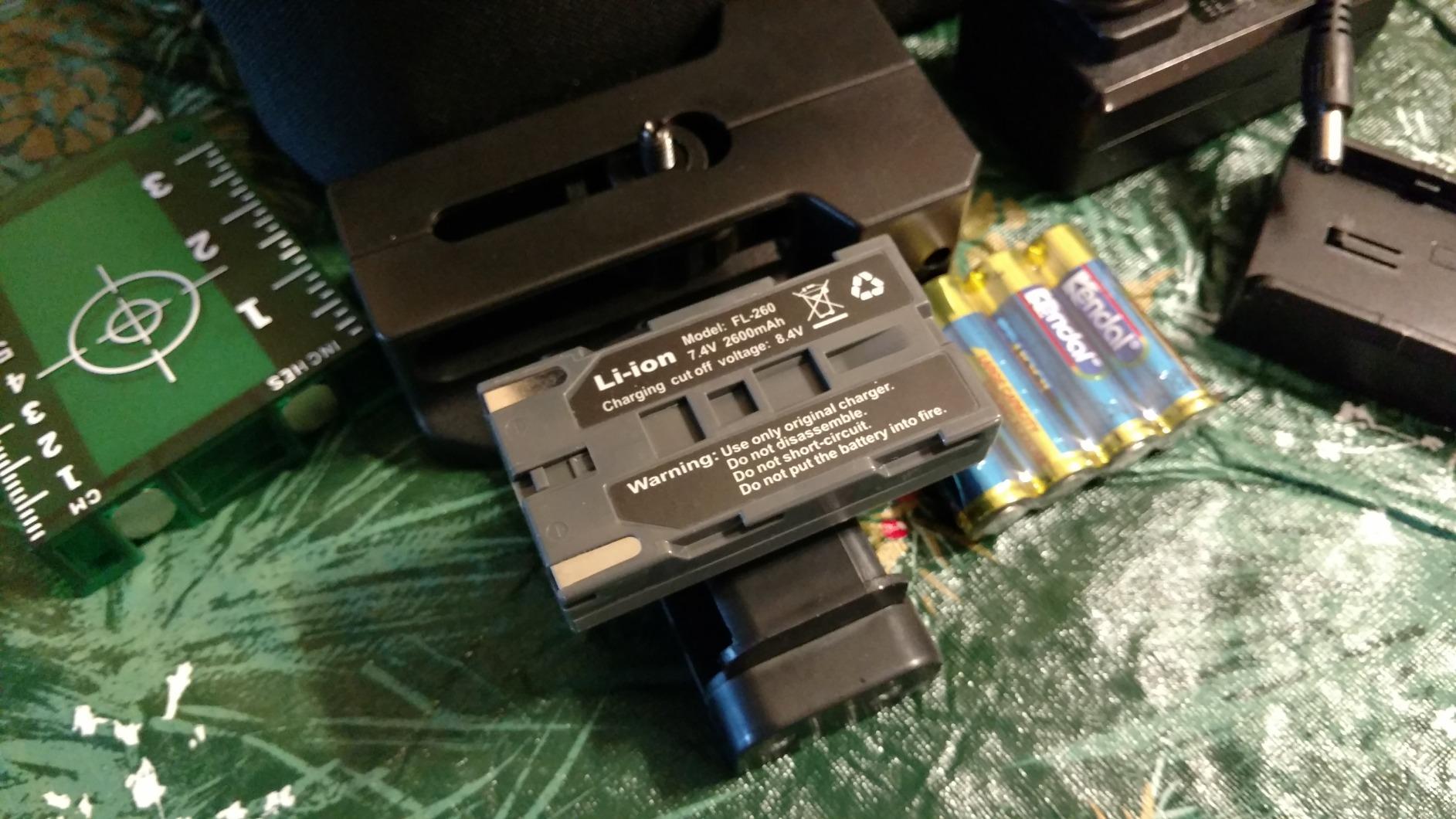

5. Huepar 7211CG 360 Line with Plumb Dots – Best for Squaring a Corner Run
Huepar Self Leveling Laser Level Green Cross Line Laser with 2 Plumb Dots Laser Tool -360° Horizontal Line Plus 140° Vertical Level Laser with Up & Down Points – Rechargeable & Magnetic Bracket 7211CG
360 horizontal plus plumb dots
Rechargeable 10 hour runtime
Accuracy 1/9 inch at 33 ft
Three power options
Pros
- Plumb dots transfer a point up and down without repositioning
- 360 degree line beats a cross line as you work around the room
- Verified against a water-tube level on a 300 sq ft kitchen
- Removable battery plus an AA holder so you are never stranded
- Brass thread inserts mount on camera and surveyor tripods
Cons
- Green line is impractical in bright sunlight without a receiver
- Fewer mounting accessories than rivals
- One reviewer reported the plumb dot drifting after six months
- Awkward pendulum lock switch
This is the model to buy when your kitchen turns a corner. The 7211CG projects a 360-degree horizontal green line, a 140-degree vertical beam, and separate up and down plumb spots, which is exactly the set of references you need to square a return run against a main run without resetting the tool.
The plumb dots are the feature that earns it a place. You can transfer a point to the floor or ceiling without moving anything, which is what you need when the top of an upper cabinet has to land on a marked height rather than a measured one. A long-serving remodel contractor described it as the best deal available with three-plane 360 coverage at this level.
Accuracy is plus or minus 1/9 inch at 33 feet for both the lines and the dots, and one reviewer verified it against a water-tube level across a 300 square foot kitchen remodel. The rechargeable lithium pack runs up to 10 hours on Type-C charging and can be removed, and there is also an AA battery holder, so a dead pack never ends your day.
Mounting options include a 1/4-20 thread, a 360-degree magnetic pivoting base, and integrated magnets that hold it flush against metal stud bottom track. Pulse mode extends range to 197 feet with a Huepar receiver, and the over-moulded window is IP54 rated.
When plumb dots earn their cost
They pay off on corner runs, on aligning a tall pantry against a wall cabinet run, and on any job where you need to carry a height from the floor to the ceiling. Buyers on cabinet and tile layouts credit the combination of 360 coverage plus dots with removing repeated repositioning.
Where it falls short
Daylight visibility is the consistent limitation, and one buyer returned the tool specifically because of it. If your install runs onto a sunlit deck or an unfinished exterior wall, budget for a receiver or pick a different beam colour. The pendulum lock switch is awkward to operate, and one reviewer reported the plumb dot falling out of sync with the line after about six months of use.

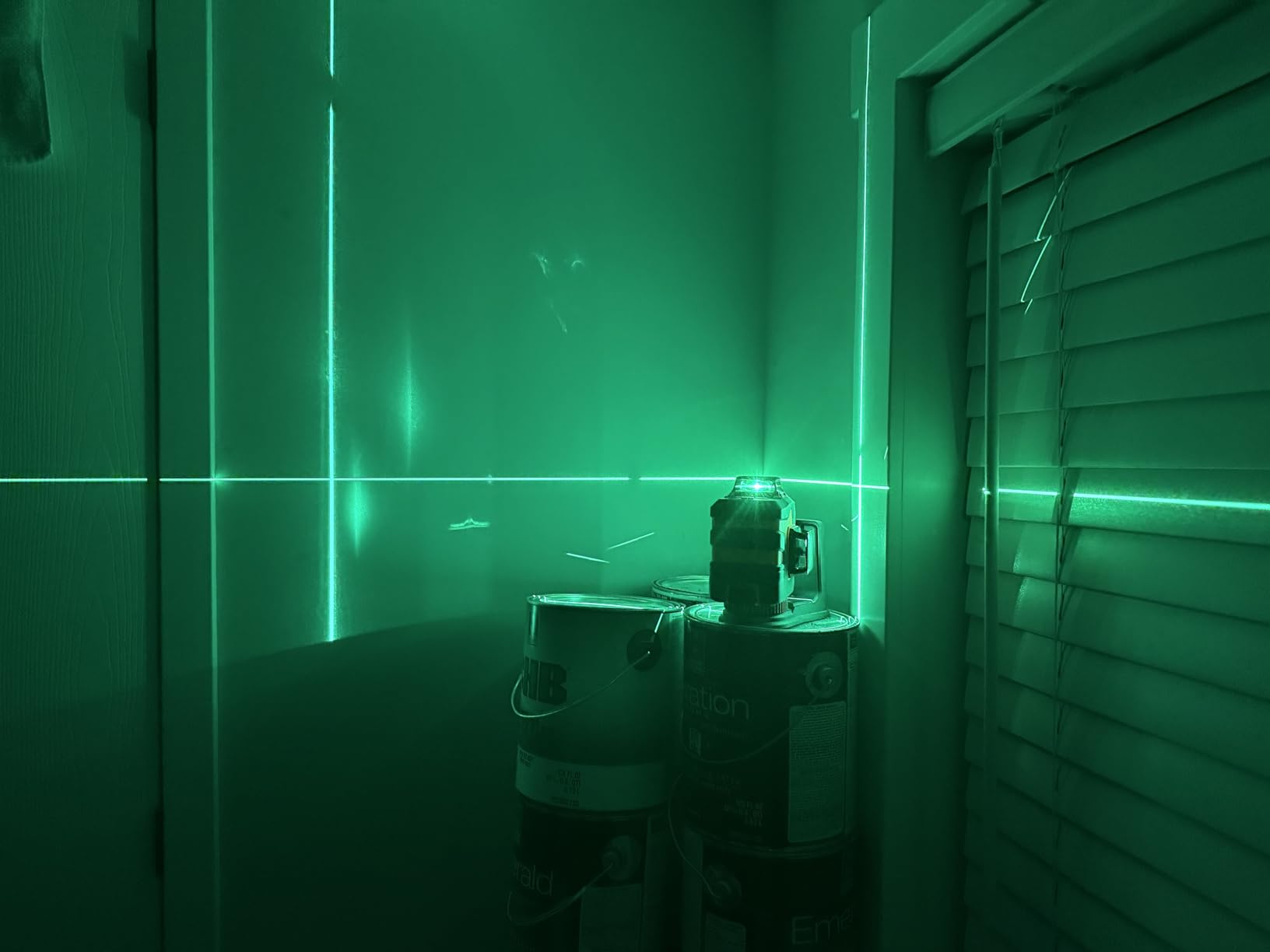

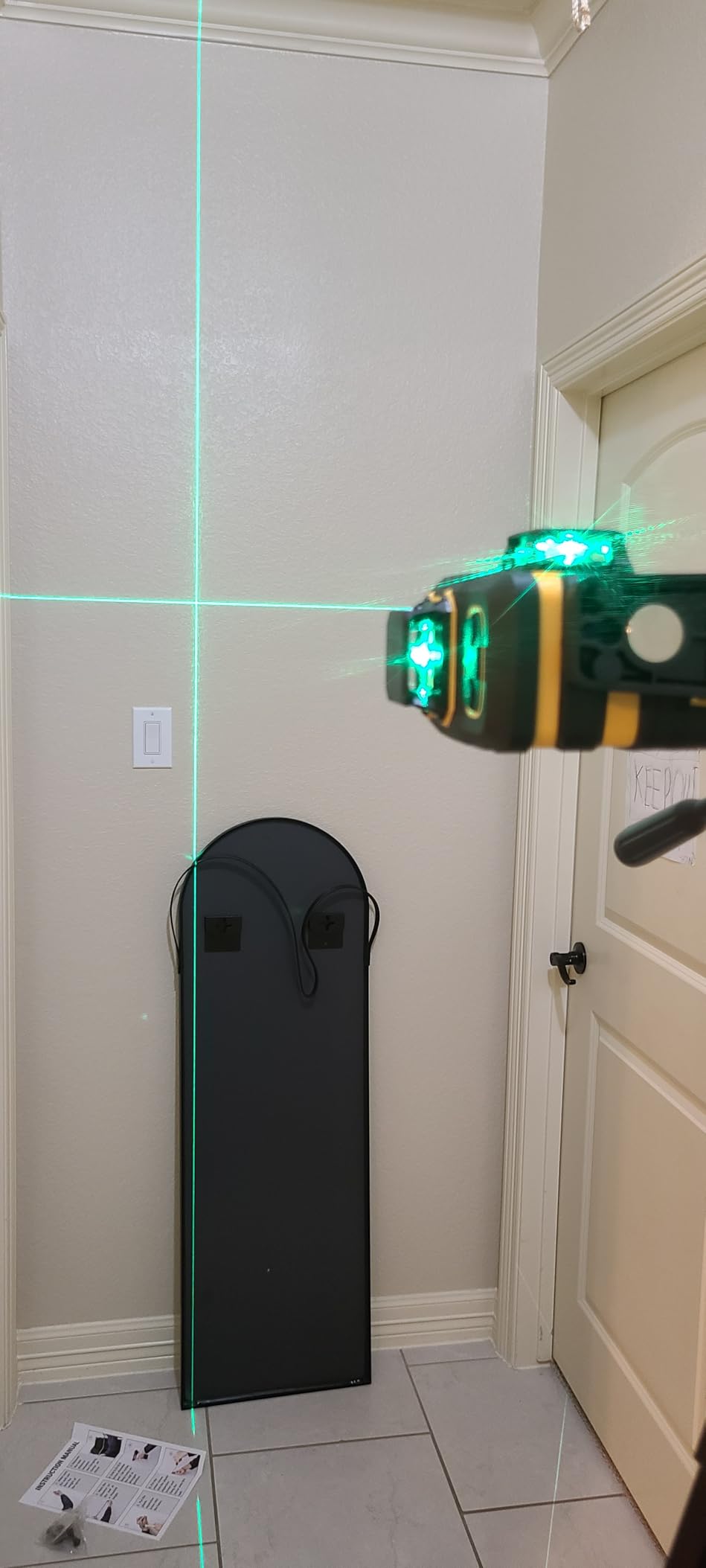

6. IKOVWUK B1-12 12 Line 3×360 Green Laser – Best With Remote Control
IKOVWUK Laser Level with 12 Green Lines, Built-in 5200 mAh Li-ion Battery
12 green lines, three 360 planes
16 ft wall-penetrating remote
5200 mAh battery, 8 hr runtime
L-bracket and metal plate
Pros
- Twelve lines across three 360 planes cover a full room layout
- Remote works through walls up to 16 ft away
- 5200 mAh pack holds up for several hours across many days
- Lines hold up in brighter conditions than red
- One drywall installer uses it several times a week
Cons
- Lines wash out in bright light and near a headlamp
- Persistent off-level warning tone annoys some users
- Charging only works with the supplied AC adapter block
- No tripod in the base kit
The remote control is the reason this one is worth a place. It reaches up to 16 feet and works through walls, so you can switch a plane on or change brightness from the cabinet position without climbing back down or walking into the beam. Several reviewers said they did not expect to value it and now rely on it every day.
Layout-wise it is a genuine three-plane unit: one 360-degree horizontal and two 360-degree verticals, twelve lines total, individually switchable with the H and V buttons. One reviewer credited it with handling square, plumb and level lines in a single small bathroom without buying multiple tools.
The 5200 mAh lithium pack gives up to 8 hours of working time with a green-to-red low power indicator and charger included, self-leveling range is 3 degrees with a manual mode, and pulse mode plus two brightness levels cover indoor and outdoor scenes. An L-shaped magnetic bracket and a metal mounting plate are in the box.
It carries an 18-month manufacturer warranty, which is shorter than the five years on the Huepar models but longer than several kits in this group.
Why remote control changes overhead work
Hanging upper cabinets means your reference line is above your head and your control panel is below it. A remote that works through a wall or across a room removes the ladder climb, and on a long kitchen run that adds up quickly. It is a small feature that only becomes obvious once you are standing on a ladder.
Where it falls short
Lines wash out in bright light and one reviewer found them hard to see even under a low-light headlamp, which is a real problem on a dark glossy cabinet finish. Charging only works with the supplied AC adapter block despite the USB port, one reviewer reported a line that did not hold after self-leveling engaged, and no tripod is included in the base kit.

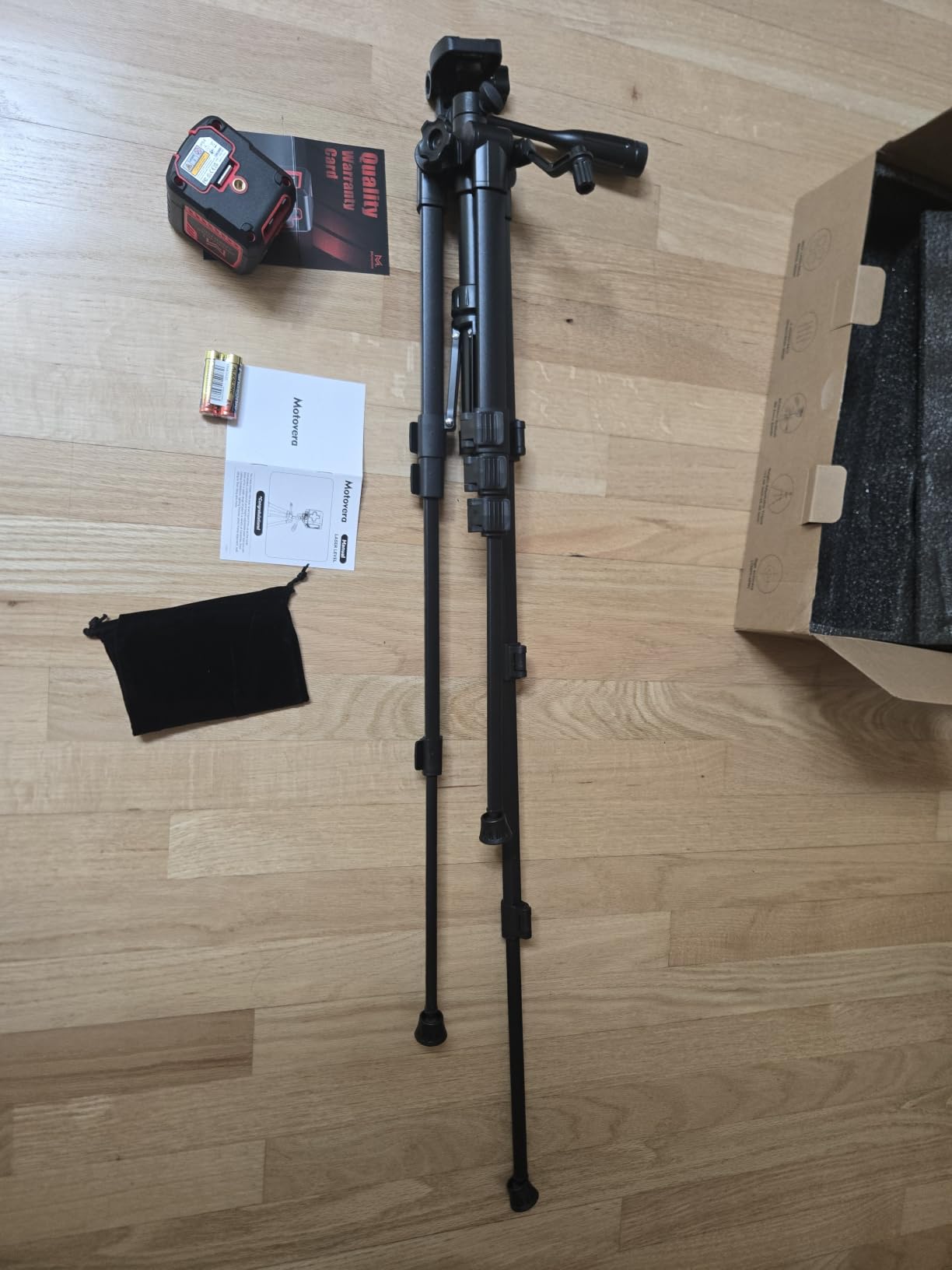

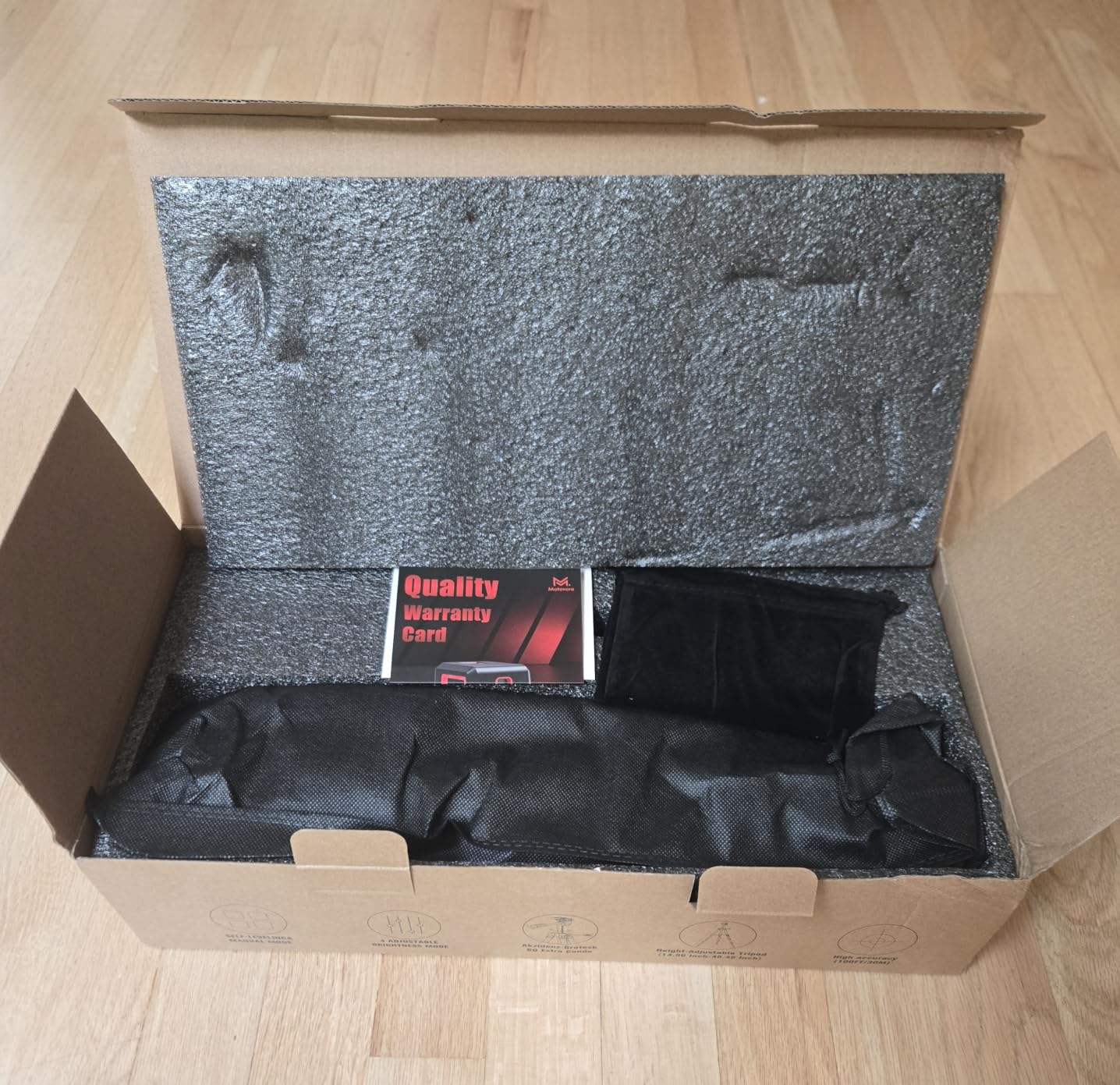

7. Motovera LL-T2 Green Cross Line Kit – Best When a Tripod Is Included
Motovera Self Leveling Laser Level 100ft, Green Cross Line with Tripod, 4 Brightness Modes & Pulse Function, Manual & Self-Leveling Modes, IP54 Waterproof for Picture Hanging, Tile, DIY Construction
Green cross line, four brightness modes
Aluminum tripod 15 to 46 inches
Pulse mode to 150 ft with receiver
Plus or minus 1/9 inch at 33 ft
Pros
- Sturdy adjustable aluminum tripod makes setting line height simple
- Bright green lines in well-lit rooms
- Four brightness modes plus pulse mode adapt to lighting
- Manual mode works for angled layouts such as stairs
- Carry bag holds the level and tripod together
Cons
- No magnet on the back
- so placement depends on the tripod
- Laser window aperture is about 90 degrees so extreme angles are poor
- The 100 ft visibility claim does not hold in practice
- Manual mode flash reminder every 5 seconds
Most budget kits hand you a folding plastic tripod that wobbles. This one includes an aluminum tripod that extends from 15 to 46 inches with a three-way head and a 360-degree swivel, and reviewers repeatedly single the tripod out as the part that justifies the money. For a cabinet job, where the line has to sit at a fixed height, that is the right part to spend on.
The line itself is a bright green cross with four brightness modes and a pulse function, and reviewers praise how visible it stays in well-lit rooms. It self-levels within plus or minus 4 degrees and offers a manual mode for angled layouts.
Published accuracy is plus or minus 1/9 inch at 33 feet, or plus or minus 3 mm at 10 meters, with a 110-degree projection angle. The body is IP54 rated with 30-inch drop resistance, uses a Class II diode under 5 mW, and the kit includes a carry bag, two AA batteries and a 24-month warranty.
It is a 4.2-star kit with nearly 4,000 reviews, and the middling score tracks the specific gaps: no back magnet, a limited aperture, and an advertised range that reviewers push back on.
Why the tripod matters more than the laser here
Setting cabinet height is the one operation you will repeat constantly, and a stable tripod holds the line where you put it while you walk the wall and mark. A wobbling one costs you a re-check every few feet. The 46-inch maximum height covers most upper cabinet work with the tool raised but stable.
Where it falls short
Without a magnet on the back, you are locked to the tripod for placement, which is a real loss in a kitchen full of metal studs. The window aperture of roughly 90 degrees means the line fades at extreme angles, and the 100-foot visibility claim does not hold up, with one reviewer judging it good for single-room work on a single wall.

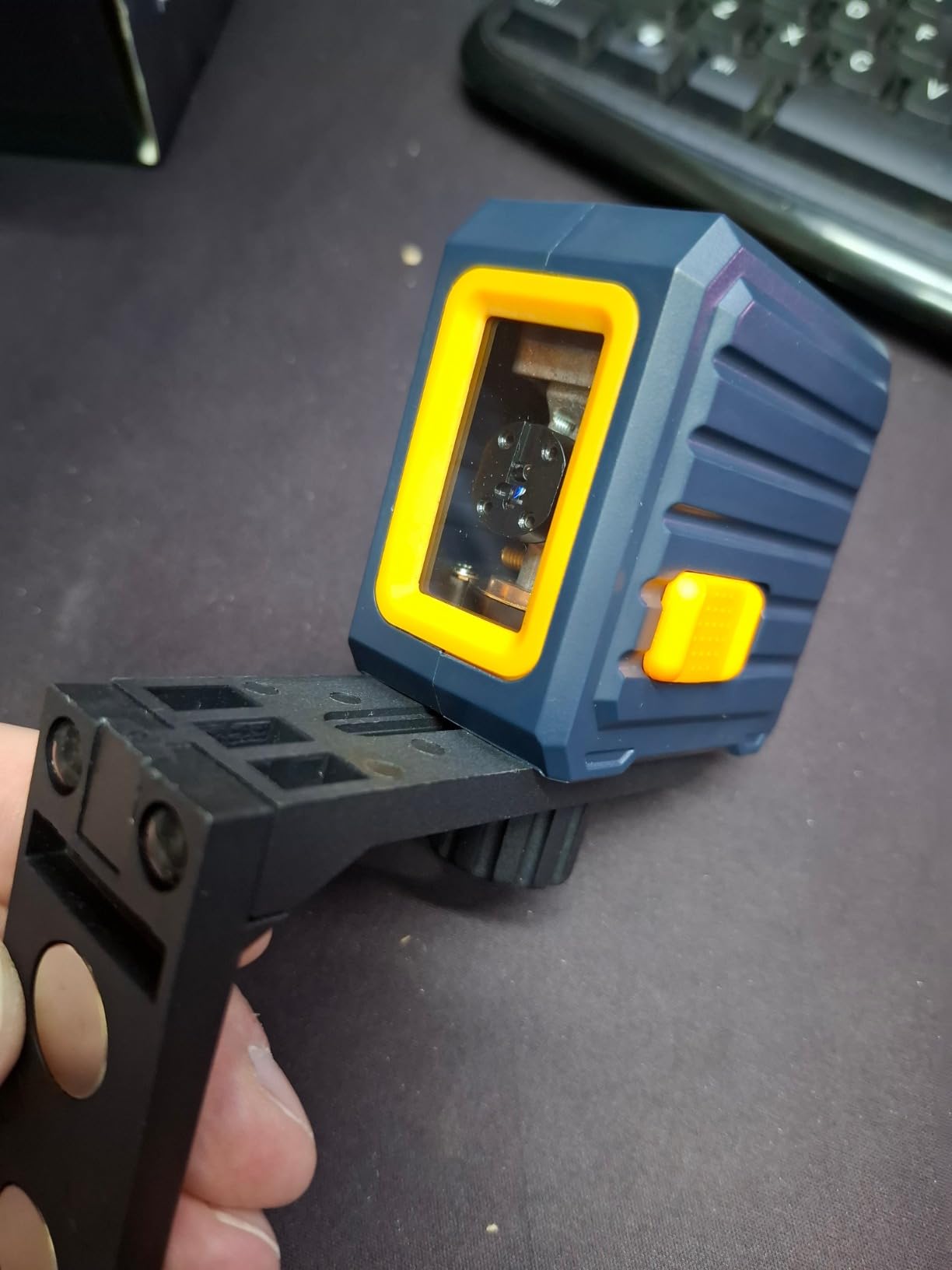

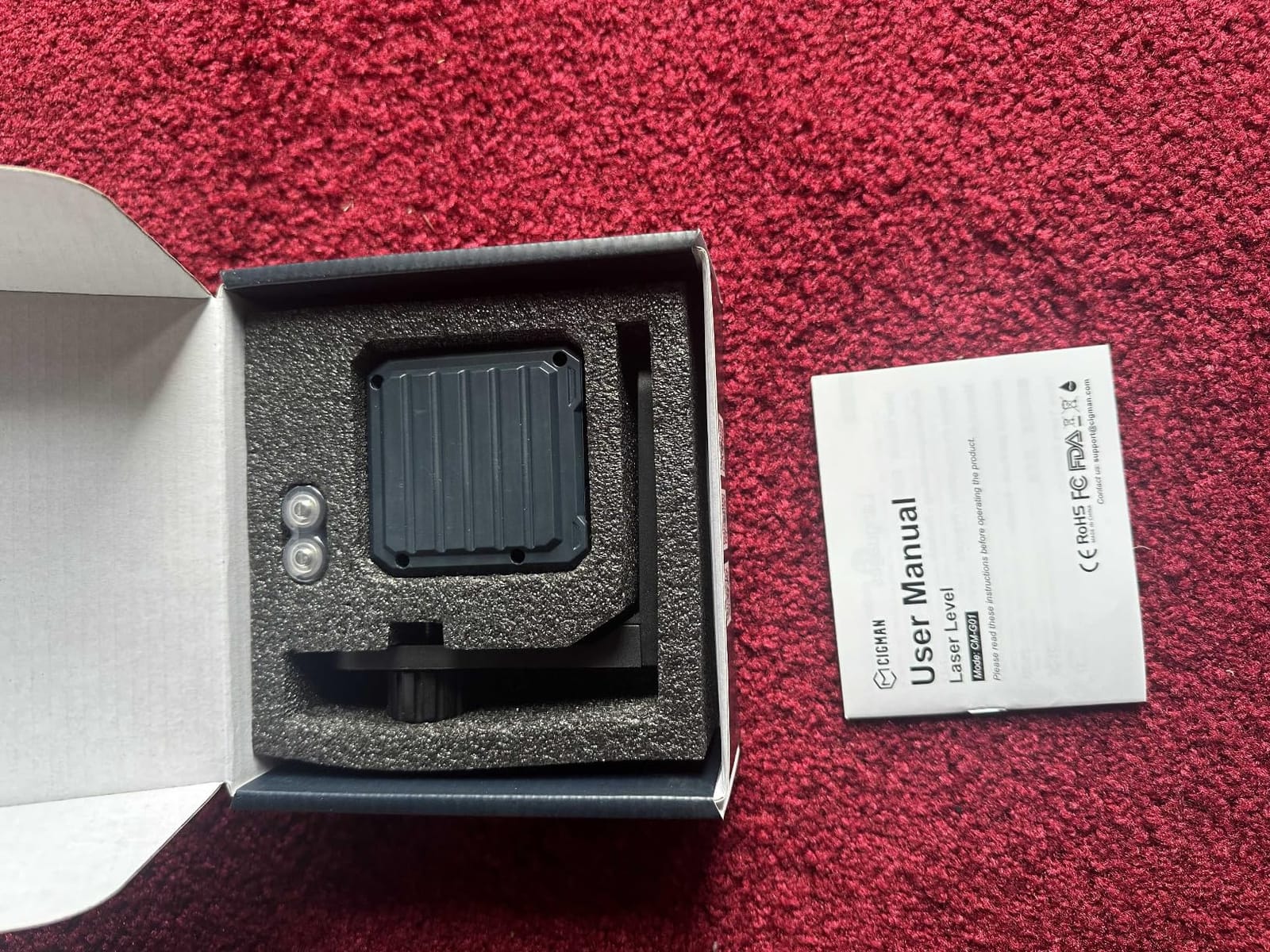

8. CIGMAN CM-G01 Green Cross Line – Best Pocket-Sized Green Line
Self-Leveling Laser Level, 100ft Green Cross Line with 4 Brightness Levels
Green cross line, four brightness levels
Up to 28 hours on 2 AA batteries
Plus or minus 1/16 inch at 16 ft
Magnetic L bracket included
Pros
- Green line far more visible than a comparable red indoors
- Four brightness levels match the beam to ambient light
- Up to 28 hours at the lowest setting on standard AAs
- Under half a pound and small enough for a pocket
- Magnetic L bracket included
- so nothing extra to buy
Cons
- Single cross line with no plumb dots and no 360 coverage
- Extended and outdoor work needs a separately bought receiver
- No use in direct sunlight without a receiver
- Long-range claims are tighter than budget rivals demonstrate
The CM-G01 is the one to keep in the tool bag for marking a single cabinet run, a backsplash layout, or a run of picture rails. It weighs under half a pound, measures 2.8 by 2.2 inches, and includes a magnetic L-shaped bracket, which means you can hold a green line at cabinet height with nothing else in your hands.
The four brightness levels are more useful than they sound. Matching the beam to the room lets you keep the line readable in a bright kitchen without running the battery flat, and on the lowest setting the two AA batteries run up to 28 hours. For a single project that removes battery changes from the workflow entirely.
It self-levels within plus or minus 4 degrees with a fast flashing alert when tilted, and the published accuracy is plus or minus 1/16 inch at 16 feet, which is a tight figure for a tool in this class. The housing is IP54 rated with 32-inch drop resistance, and pulse mode extends working range to 165 feet with a compatible receiver. The warranty runs 36 months.
At 4.3 stars from more than 1,700 reviews, it carries the largest cluster of three-star ratings in this group, and the pattern is consistent: the gaps between advertised range and real indoor performance, plus the need to buy a receiver for anything extended.
When a small green cross line is the right tool
For one wall, one height and a half-day job, this is enough. It is easy to carry, quick to set, and the green beam is clearly readable on a light wall. If your install is a corner run or a full kitchen, move up to a 360-degree model instead.
Where it falls short
It projects a single cross with no plumb dots and no horizontal 360 coverage, so you are repositioning for every height change. Anything beyond about 16 feet, or any work in direct sunlight, needs a receiver sold separately, and reviewers note the published accuracy is tighter than most budget rivals demonstrate in practice.
9. BLACK+DECKER BDL220S Self-Leveling Laser – Best Wall-Mounted Option
BLACK+DECKER Laser Level, Self-Leveling, 360 Degree Wall Attachment, AA Batteries Included (BDL220S), 7.25 x 7 x 2.5 inches
Self-leveling single line
360 degree rotating wall attachment
Two backlit bubble vials
Class 3R, 5 mW or less
Pros
- Self-leveling removes manual bubble adjustment at height
- Rotating wall attachment projects the line at any angle
- Two extra large backlit bubble vials for accuracy
- Established major brand with a two-year warranty
- Runs on two included AA batteries
Cons
- Single line only
- so it cannot reference two planes at once
- Red line is harder to see than green in bright light
- No tripod thread
- so height depends on the wall attachment
- Bulky 7.25 by 7 inch footprint
This is the household tool, not the installer tool, and it is included here because a lot of cabinet hanging genuinely is a household job. More than 13,500 reviews at a 4.3 average make it one of the most proven line lasers in circulation, and reviewers call it a reliable tool for shelves, mirrors, curtain rods and light cabinet runs.
The wall attachment rotates a full 360 degrees so you can project the line at whatever angle the wall demands, and the two backlit bubble vials stay readable in a dark room. Being self-leveling, it settles without you fiddling with a vial at ladder height, which is the failure point for cheap manual tools.
It runs on two included AA batteries, carries a two-year limited warranty, and uses a Class 3R laser with power output of 5 mW or less. Because it projects a single line rather than a cross, you set it once for the horizontal reference and accept that squaring is a separate operation.
The 7.25 by 7 inch footprint is noticeably bulkier than palm-sized rivals, and the absence of a tripod thread means height positioning depends entirely on the wall attachment rather than on a tripod you can raise.
When this is the correct pick
If you are hanging a short run of upper cabinets on a finished wall with studs already in place, or you want one reliable household laser for shelves and rails as well, this does the job at a fraction of the cost of a 3×360 unit. The wall bracket handles the height for you.
Where it falls short
Single-line output is the hard limit. You cannot hold two planes at once, which means every squaring or plumb reference is a separate setup. The red beam is harder to read than green in a bright kitchen, and with no tripod thread you are working with whatever height the wall bracket gives you.
10. AikTryee Standard Cross Line Kit – Budget Pick for One Straight Run
Laser Level Line Tool, Multipurpose Laser Level Kit Standard Cross Line Laser leveler Beam Tool with Metric Rulers 8ft/2.5M for Picture Hanging cabinets Tile Walls by AikTryee.
Manual cross line projection
Bubble vials at 0 90 and 45 degrees
8 ft metric and imperial tape
6 ounces, battery included
Pros
- Lowest cost cross line in this group
- Single slider controls vertical horizontal and cross modes
- Includes an 8 ft tape with imperial and metric scales
- Three vials cover level plumb and diagonal checks
- Lightweight ABS body with lifetime warranty
Cons
- Manual operation only
- so it must be placed on a level surface
- Red line is less visible than green in bright conditions
- No tripod or wall bracket included
- Basic single-plane cross line with no dots or 360 coverage
This is the honest floor of the list. With roughly 16,000 reviews at 4.3 stars and a number two ranking in line lasers, it is one of the most widely used cross line lasers made, and buyers treat it as a cheap helper for hanging shelves, cabinets, tiles and pictures rather than a precision instrument.
The included 8-foot measuring tape with imperial and metric graduations down to 1/32 inch and 1 mm is the detail people notice most, because during a cabinet install you are constantly transferring a height from the floor and the tape is already in the box. The three-pronged approach gives you level, plumb and a 45-degree bubble.
It weighs 6 ounces, measures 3.34 by 1.1 inches, and ships with a battery. One slider on the front selects vertical, horizontal or cross line modes, which is the simplest control layout in this group and the easiest to operate with one hand on a ladder.
Sixty-five percent of its ratings are five stars against six percent at one star, and the recurring praise is for ease of use and the tape. The recurring limitation is that it is manual, not self-leveling.
When this is the right pick
A single straight run of uppers on one wall, done in an afternoon, where the surface you set it on is genuinely level. Put it on a shelf or a countertop, set your reference line, and you are done. The included lifetime warranty means the low cost is not a throwaway decision.
Where it falls short
It is manual, so it must sit on a level surface to give a level line, and at cabinet height that surface is rarely true. The red beam fades in a bright kitchen. There is no tripod, no wall bracket, no plumb dots and no 360 coverage, so every height change and every squaring operation means putting the tool down and picking it up again.
Which Beam Type Do You Actually Need for Upper Cabinets?
A cross-line laser projects one horizontal and one vertical line. A 360-degree line laser projects a full circle in the horizontal plane, so the reference wraps around the room onto adjacent walls without you moving the tool. A four-plane model adds a second horizontal plane, which gives you a ceiling and a floor reference at the same time.
Choose a cross line if your cabinets sit on one straight wall and you can set the tool once. Choose a 360-degree line if the run turns a corner, continues around two or three walls, or if you want to walk the room and read the same reference from every position. Choose four planes if you are working under a stepped or vaulted ceiling and need to check the top of the box against a ceiling line.
This is also where the r/cabinetry consensus is right: a more expensive laser does not plumb your boxes better. It draws a better long line. The per-box plumb still belongs to a spirit level.
Green vs Red Beam in a Daylit Kitchen
Green beams are visibly brighter than red under the same lighting. Buyers consistently report that a green cross line reads clearly in ordinary indoor light and on glossy or dark cabinet finishes where a red line washes out, and one 4×360 owner found his lines crisp in a garage with the door open on a sunny day.
Red still has two advantages. It costs less, and red lasers generally run longer on a given battery because the diodes draw less power. If your install is indoors at night under work lights, red is perfectly serviceable. If your kitchen has a big window and you are working in the afternoon, spend the difference and go green.
One safety note applies to both. These are Class 2 or Class 3R tools rated under 5 mW in most cases, which is the same output as a visible laser pointer. Never look into the beam, keep it below eye level when possible, and remember that green is perceived as brighter by the human eye, so treat a green line with the same discipline as a red one.
What Accuracy and Self-Leveling Specs Actually Mean
An accuracy rating of 1/8 inch at 30 feet means the line can drift up to an eighth of an inch over a 30-foot throw. Scaled to a 12-foot kitchen wall, that is roughly 1/16 inch at your furthest cabinet. That is well inside what a cabinet run tolerates, which is why almost every green tool in this group claims 1/9 inch or 1/8 inch and you are unlikely to see a visible difference between them.
Self-leveling range is the number that bites. A tool that self-levels within 4 degrees has to be placed within four degrees of true level before it settles. Place it on a counter, a workbench or a tripod head and it is fine. Set it on a stack of boxes and the out-of-level alert will flash, and in some models the line simply stops projecting.
Pendulum lock is the transport feature to use every single time. Switch the tool off and most of these models lock the pendulum for transit. Installers on r/cabinetry describe losing calibration to a knocked pendulum during transport as a recurring frustration, and locking it takes one extra step at the end of the day that prevents the problem entirely.
How to Use a Laser Level to Hang Cabinets
First, find your highest reference point. Check the ceiling along the whole run and note the highest point. That becomes the line everything else follows, because a run installed truly level will look wrong against a ceiling that slopes.
Second, set the laser at cabinet-top height. Mark the intended top of the cabinet box on a stud or a piece of scrap, set the tool on a workbench or counter at that height, or raise a tripod to it. Measure and subtract the tool’s reference offset if the manual states one.
Third, transfer the line. Walk the wall, mark the height at each stud, and write the cabinet height below it. Repeat down the room, then check the same reference from a second wall if the run turns a corner.
Fourth, cut and fasten the cleat. Drill into studs wherever they fall, check the cleat with a spirit level, and shim it if the wall is bowed. The laser set the reference. The bubble level decides whether the wood you are about to hang is true.
Fifth, plumb each box individually. Lift the first cabinet onto the cleat, check it with a long spirit level, shim at the back, and fasten. Repeat for every box. Never assume the box is plumb because the layout line was level.
Sixth, scribe where the room is not square. Where an out-of-plumb wall or a sloping ceiling meets a cabinet box, mark the high point and cut the back edge down to follow the reference. The run stays parallel to the reference line and the gap reads as a deliberate reveal rather than an error.
Seventh, label the boxes before they go up. If the fronts need marking or engraving after the run is finished, our guide to the best laser engravers covers the tools that handle it without a workshop full of equipment.
When the Floor or Wall Is Out of Square
Most older rooms are not square, and forcing cabinets to true level across an out-of-plumb wall creates a growing gap at one end of the run. Installers on forums describe scribing the boxes to a straight reference line as the standard fix. The cabinets stay parallel to each other and to the room line, and the scribe at the wall is far less visible than a wedge-shaped gap above a run of uppers.
Second, the line of sight problem. Once cabinets are hung, a tool sitting low can no longer project above them, so set the height before you start rather than trying to solve it halfway through a run. This is where a 360-degree plane pays off, because the reference stays on the walls and ceiling after the boxes are up.
Third, glossy and dark finishes swallow beams. A green line reads much better on a high-gloss painted door or a dark stain than a red one. If the line keeps vanishing, drop the brightness to the level that still shows rather than the highest setting, which often improves contrast in a dim room.
Fourth, a blinking alert usually means the tool is out of its self-leveling range, not that it is broken. Reposition it on a level surface. And finally, the bundled tripods on entry-level kits are often the first part to fail on a kitchen job, so if you are spending a weekend here, put a real tripod on the shopping list before you climb.
Frequently Asked Questions
Which laser level is best for cabinet installs?
A self-leveling 360-degree green line laser is the right tool for hanging cabinets, because the horizontal plane wraps around the room and you never reposition it mid-run. The Huepar HM03CG is our top pick for that reason. If your cabinets sit on one straight wall, a green cross-line laser such as the Bosch GLL50-20G or the RockSeed LV1GT is genuinely sufficient and costs far less.
Do I need a 360 degree laser, or will a cross line do?
A cross line will do for a single straight wall run, which is the consensus on installer forums, and it costs a fraction of a 360-degree model. You need the full 360-degree horizontal plane when the run turns a corner, continues around more than one wall, or when you want to read the same reference from every position in the room without walking the tool over.
Should I get a green or red laser level for indoor cabinets?
Go green for a daylight-filled kitchen. Green beams are visibly brighter than red under the same lighting and stay readable on glossy white or dark stained cabinet doors, which is where red lines fade. Red remains a sensible choice for night work under artificial light, where it costs less and generally runs longer on a given battery.
Do I still need a spirit level if I have a laser?
Yes, and most installers use both. The laser marks the continuous layout line for the cleat across the whole wall, and a spirit level plumbs each individual cabinet box as it goes up. The laser and the bubble level do different jobs, and buying a more expensive laser does not replace the short box-height plumb check.
How do I check the laser is accurate before I cut anything?
Set the tool on a genuinely level surface, project the line, and mark it at two points. Rotate the unit 180 degrees and re-project. If the second mark sits on the first, the tool is holding level. Lock the pendulum before you transport it, and repeat the check at the start of each job, since a knocked pendulum is the most common cause of drift.
The Verdict
The Huepar HM03CG is the best laser level for hanging cabinets because it does the one thing a cabinet run actually demands: it holds a single green reference line around the whole room at cabinet-top height without being repositioned. Three 360-degree planes, a rechargeable pack that lasts a working day, a bracket that fits both common tripod threads, and a five-year warranty make it the pick for a full kitchen or any run that turns a corner.
For a single straight wall, do not overspend. The RockSeed LV1GT or the Bosch GLL50-20G will mark your cleat line correctly, and a spirit level will plumb the boxes. The Takamine GM160 is the answer when you are working under a stepped ceiling and need a second horizontal plane, and the Huepar 7211CG is the one with the plumb dots for squaring a return run.
Whatever you pick, set the height before the first cabinet goes up, lock the pendulum when you put it down, and keep the bubble level in your other hand. For the wider range of site tools, our guide to rotary laser levels for grading covers the heavy-duty end of the market.
